FBT Coupler Splitter 1×N / 2×N | Low Cost, Custom Split Ratios, OEM/ODM Support

FBT (Fused Biconical Taper) coupler splitters are passive optical devices fabricated by fusing and stretching multiple fibers into a tapered region, enabling the splitting or combining of optical signals. Ideal for PON, CATV, FTTH, LAN/WAN, and optical sensing applications, these splitters offer low cost, flexible split ratios, and ease of integration.

Why Choose Our FBT Coupler Splitters

Low Cost & Efficient: Economical manufacturing via fiber fusion makes FBT couplers a cost-effective choice for low- to medium-channel applications.

Adjustable Split Ratios: Real-time fusion process allows flexible customization of splitting ratios (e.g., 1×2, 1×4, 2×2, or tree/star configurations).

Wideband Operation: Supports dual or multiple windows like 1310/1490/1550 nm, depending on fiber type.

Compact & Reliable: Available in ABS box, steel tube, cassette or bare forms, offering durable housings for field deployment. Meets Telcordia GR-1209/1221 and RoHS standards.

Product Configurations

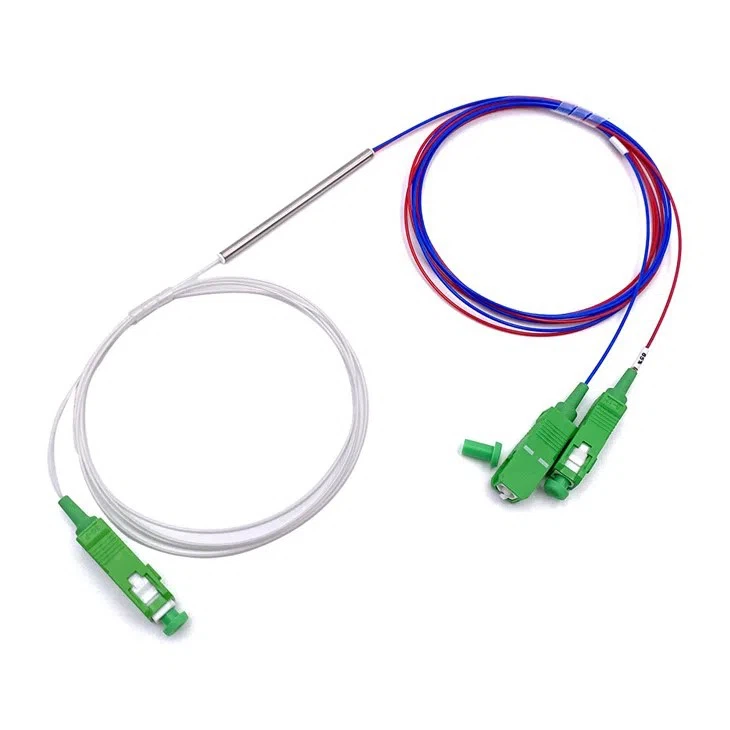

FBT Couplers 1×N (1 input, N output) for standard splitter deployments.

FBT Couplers 2×N (dual-input) for redundancy or bidirectional signal distribution.

Available in steel tube, ABS box, cassette, or loose fiber formats for flexible installation environments.

Specifications Overview

Split Ratios: Common options include 50/50 split (1×2), 1×4, 1×8, and custom ratios via cascading tree/star designs.

Wavelength Options: Typically available for 1310 nm, 1490 nm, 1550 nm, and wide-band variants.

Insertion Loss: Usually low; example FBT 50/50 ABS module IL ~3.8 dB (typical).

PDL & Return Loss: Polarization-dependent loss typically ≤0.2 dB; return loss ≥50 dB.

Operating Temp: –40 °C to +85 °C.

Applications

FTTH / GPON / EPON access networks—splitting feeders to multiple ONUs.

CATV distribution systems in building or campus networks.

LAN, WAN and general optical signal branching in telecom equipment.

Cost-sensitive, low-output-count deployments like MDU or campus links.

Customization & Services

Modify split ratios, packaging (ABS box, steel tube, cassette), connector types, and fiber lengths via OEM/ODM.

Free samples available for evaluation on qualifying requests—fast response guaranteed.

Engineering support includes optical budget planning, deployment advice, and accessory recommendations.

Two-year product warranty, with quality returns within 3 months and free maintenance for one year.

Ordering Information

Please specify: Type (1×N or 2×N), split ratio, package type (steel tube / ABS / cassette / bare), connector or pigtail details, and any OEM/ODM labeling or packaging needs.

FAQ：

Q1: Samples available?

Yes！

Q2: Can split ratios be customized?

Certainly—splitters can be produced in common (50/50, 20/80) as well as custom ratios through cascaded FBT design.

Q3: What warranty terms do you offer?

We include a two-year warranty, with free returns within 3 months for quality issues and one year of free maintenance support.

Q4: How quickly will you respond to a quote request?

We promise a reply within 24 hours, plus production and delivery tracking throughout the process.

Q5: Can I get these splitters in rugged packaging?

Yes—with ABS box, steel tube, or cassette housing options designed for field reliability.

Q6: What performance specs are typical? Expect low insertion loss (~3–4 dB for 50/50), PDL ≤0.2 dB, return loss ≥50 dB, and wide temperature tolerance (–40 °C to +85 °C).

Request a Quote

Request Your Quote or contact us for splitter configuration advice, sample orders, or OEM/ODM project discussion.
