Fiber Pigtails – Single‑Mode & Multimode | LC/SC/FC/ST Connectors

Fiber pigtails are compact assemblies featuring a factory-installed connector on one end and an exposed, tight-buffered fiber on the other, designed for fusion splicing to trunk cables or inside ODFs. Ideal for seamless integration into fiber networks, they reduce field termination errors and speed up deployment.

Why Choose Our Fiber Pigtails:

Pre-terminated connectors save time and clean up field splicing at the network edge.

Available in both single-mode (9/125 µm) and multimode (50/125 µm, OM1–OM5) variants.

Supports common connector types: LC, SC, FC, ST—ideal for patch panels and equipment links.

Color-coded buffers match industry standards (yellow for single-mode; orange/aqua/lime green for multimode OM1/OM3/OM5)

Each pigtail is 100% tested for insertion and return loss; splice-ready with high optical reliability.

Custom options available including fiber count (6, 12, etc.), lengths, jacket materials, and labeling

Product Types:

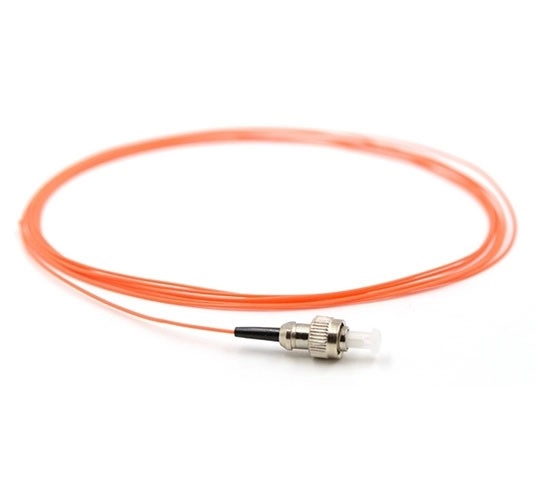

Single-fiber pigtails (simplex) for point-to-point splicing—ideal for ODF connections.

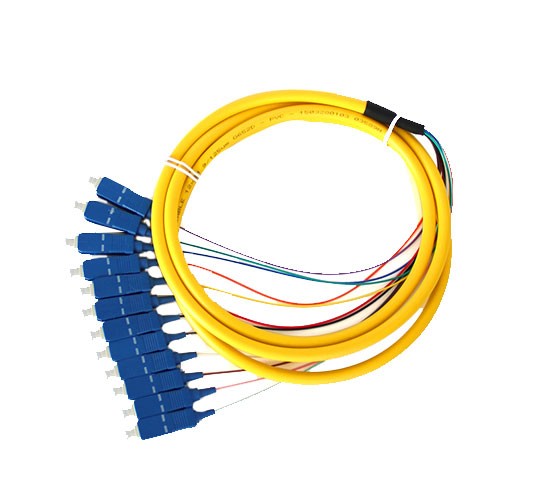

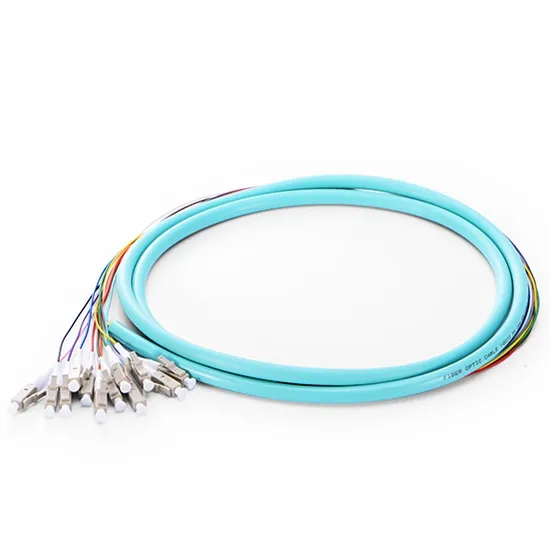

Multi-fiber bundles (e.g., 6- or 12-strand) pre-terminated for high-density enclosure splicing

Connector choices include SC/PC, LC/UPC, ST/PC, FC connectors to suit various system requirements

Typical Usage Scenarios:

Splicing into ODFs for backbone or inter-rack links.

Connecting trunk cables to patch panels or active equipment cleanly and reliably.

Indoor building distribution, telecom rooms, data center backbones.

Customization & Services:

Custom jacket materials such as LSZH or riser-rated PVC for safety or code compliance.

Labeled or color-coded for quick visual identification and fault tracing.

Special lengths, buffer colors, or batch serialization available on request.

Fast production and shipping even for custom configurations.

Ordering Info:

Provide the following when requesting a quote: Fiber type (single-mode or multimode OMx); connector type (LC/SC/FC/ST); fiber count; cable length; jacket material (LSZH/PVC); buffer color if specific; serial labeling or batch codes as needed.

FAQ:

Q: What differentiates single-mode vs. multimode pigtails? Single-mode runs longer distances with a 9 µm core; multimode (50–62.5 µm) is ideal for short links, cost-effective in building networks

Q: Sample available? Yes!

Q: Can you supply multi-strand bundles? Absolutely—6 to 12-fiber bundle options are available with matched, color-coded connectors for high-density splicing environments

Q: How are the buffer colors significant? Buffer color coding indicates fiber type: e.g., orange for OM1, aqua for OM3/OM4, lime green for OM5, and yellow for single-mode

Q: Do you offer testing documentation? Yes—optical test reports can be tied to manufacturing batch or serial numbers for traceability.

Q: What is the typical lead time? Standard configurations ship quickly; custom builds usually complete within 1–2 weeks with expedited options available.

Request a Quote:

Request Your Quote or contact our sales team to get assistance with selecting connector type, fiber grade, and assembling the appropriate pigtail solution for your network infrastructure.
