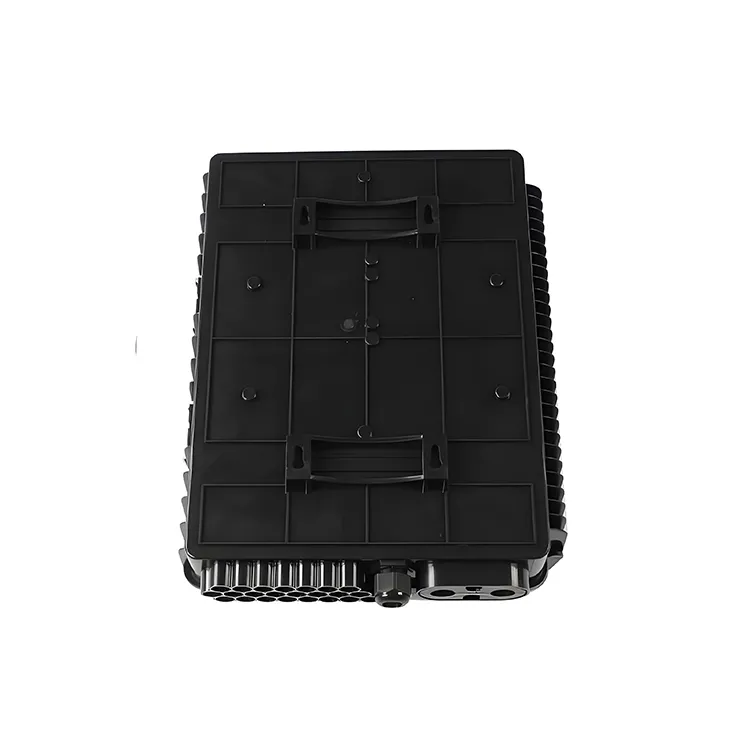

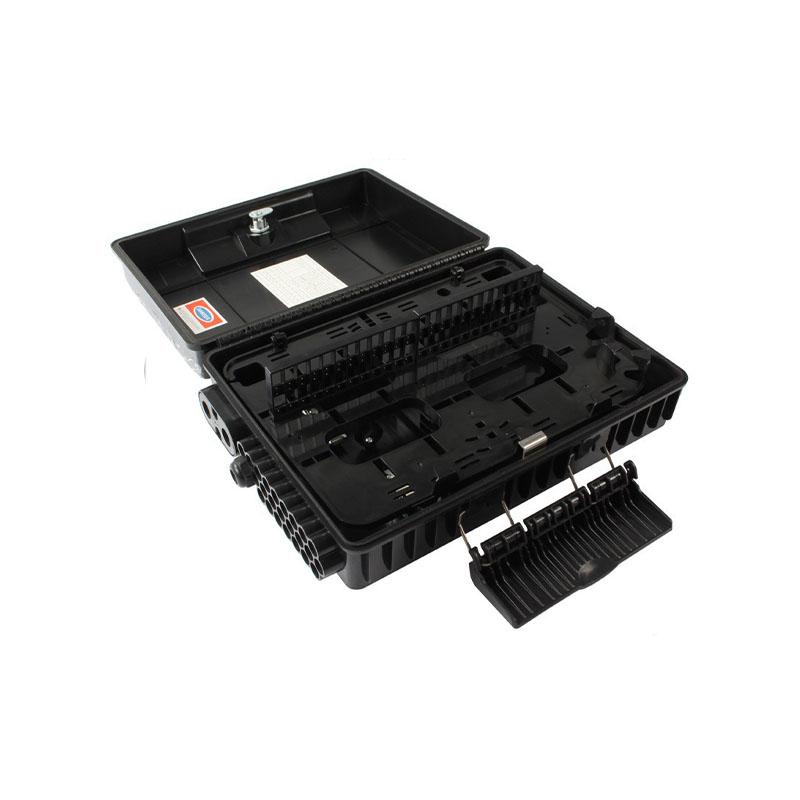

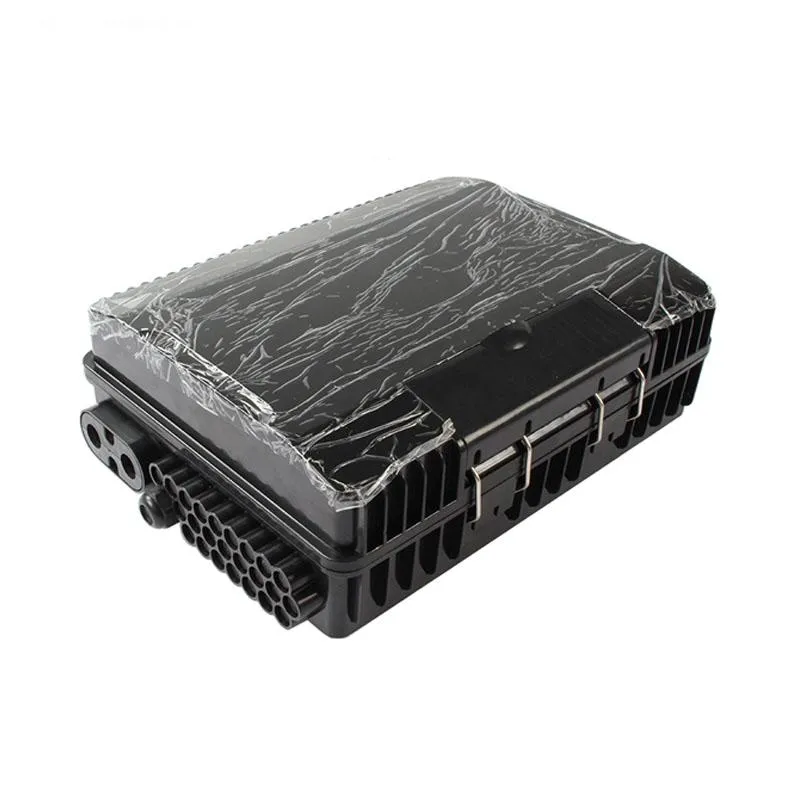

48 Ports Distribution Box

48 Ports Distribution Box Is a kind of Ultra-high density optical fiber/copper cable integrated wiring equipment    specifically for    Hyperscale network deployment design It allows for centralized management of connections of up to 48 cables (fiber or copper).

One.48 Ports Distribution Box Product definition and core functions

1. extreme density: Double the number of ports (compared to 24 ports) to accommodate the needs of hyperscale networks.

2. Modular expansionSupport for hierarchical and partition management, simplifying the jumping of complex topologies.

3. multi-scene coverageFlexible adaptation from the data center core layer to the Industrial Internet of Things.

II.48 Ports Distribution Box Main technical features

1. Physical specifications

• number of ports: 48 (supports SC/LC/ST/FC/RJ45 and other interfaces).
• sizeRack type (6U height, 483mm × 400mm × 220mm) or large wall-mounted type (600mm × 500mm × 200mm).
• materialThickened cold-rolled steel (3mm) or aviation aluminum (lightweight design).
• Protection classIP20 (indoor standard) or IP68 (optional fully sealed waterproof and explosion-proof model).

2. Management functions

• Four-layer pallet designSupport independent management 12/16/24 port module, adapt to different scenarios.
• Full withdrawal trayWith ball slide rail, load-bearing ≥ 50kg, easy to maintain deep ports.
• Smart Cable ManagementBuilt-in RFID tag slot or electronic tag screen to support remote monitoring.
• Redundant designStandard 8-12 spare ports, support hot swap and failover.

3. Environmental adaptability

• operating temperature: -50 ° C~ + 85 ° C (wide temperature model), suitable for extreme climate.
• humidity tolerance: 0%~ 95% RH (non-condensing), optional nano moisture-proof coating.
• seismic grade: Compliant with IEC 60068-2-6 standards (industrial-grade seismic, impact-resistant IK10).

4. Installation method

• rack mount19-Inch standard rack (6U height), supports front and rear ventilation.

• Wall mount/column mountHeavy-duty bracket design, suitable for outdoor cabinets or towers.

• cascade scalingSupport for multi-box cascading (via MPO/MTP backbone cable).

III.48 Ports Distribution Box Typical application scenarios

1. Very Large Data Center Core LayerAs an EOR (End-of-Row) or MDF (main distribution frame) device.

2. 5G ultra-dense base station deploymentConnect 64 RRUs (radio frequency units) to BBUs (baseband units).

3. Industrial Control Network HubThe central hub of a large factory or smart grid.

4. Security Monitoring Center: Manage 128 cameras (1:2 split ratio).

5. Smart city backbone network: Regional fiber access end point.
