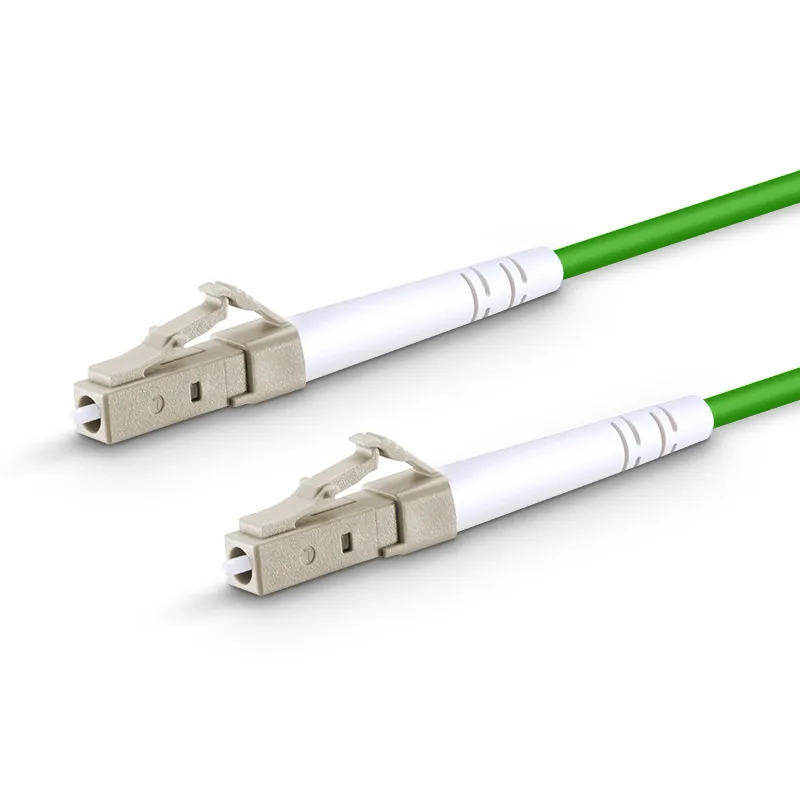

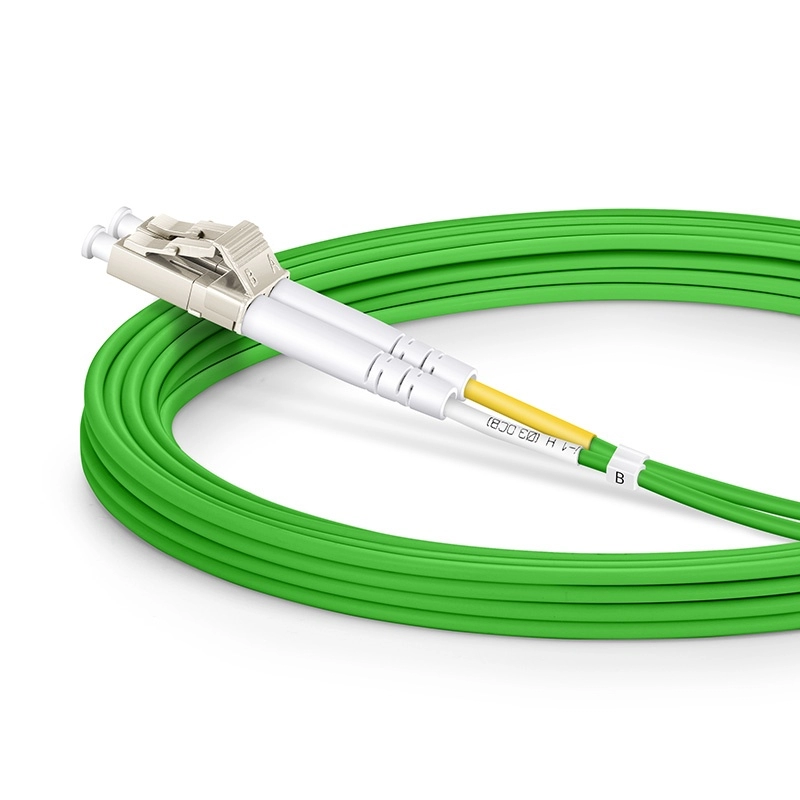

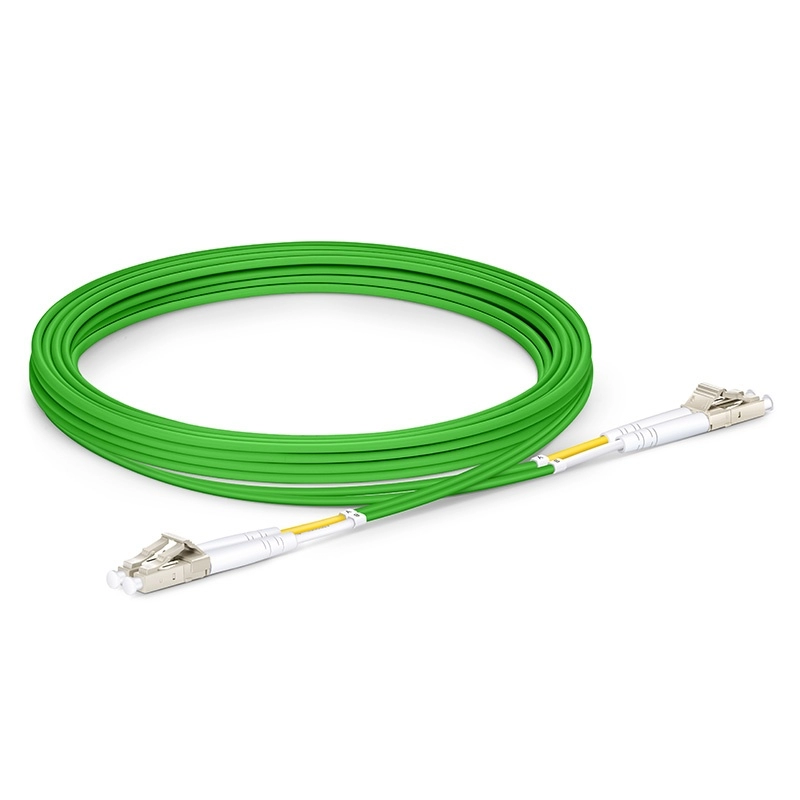

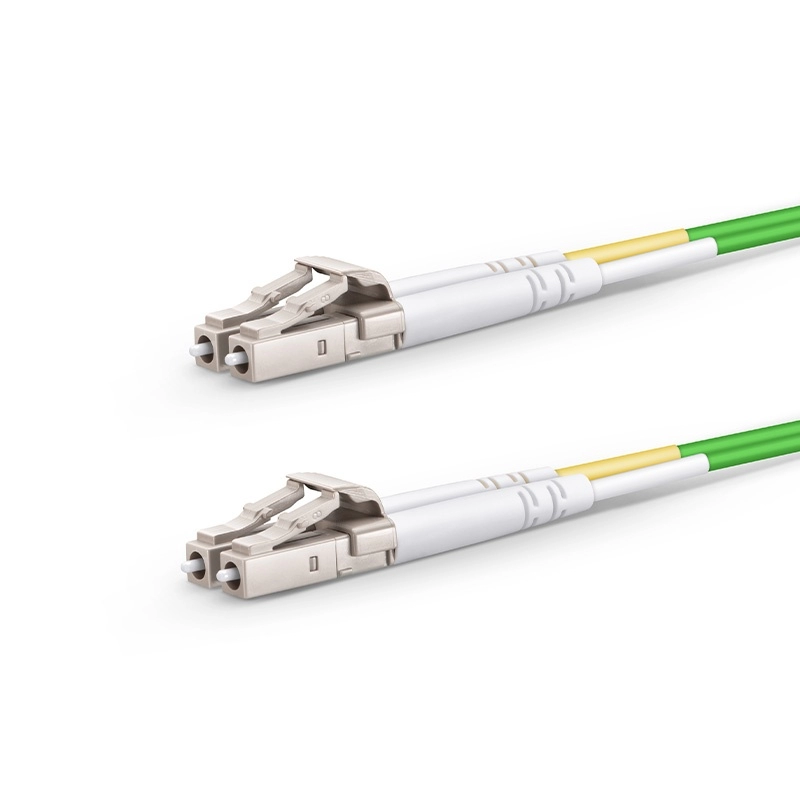

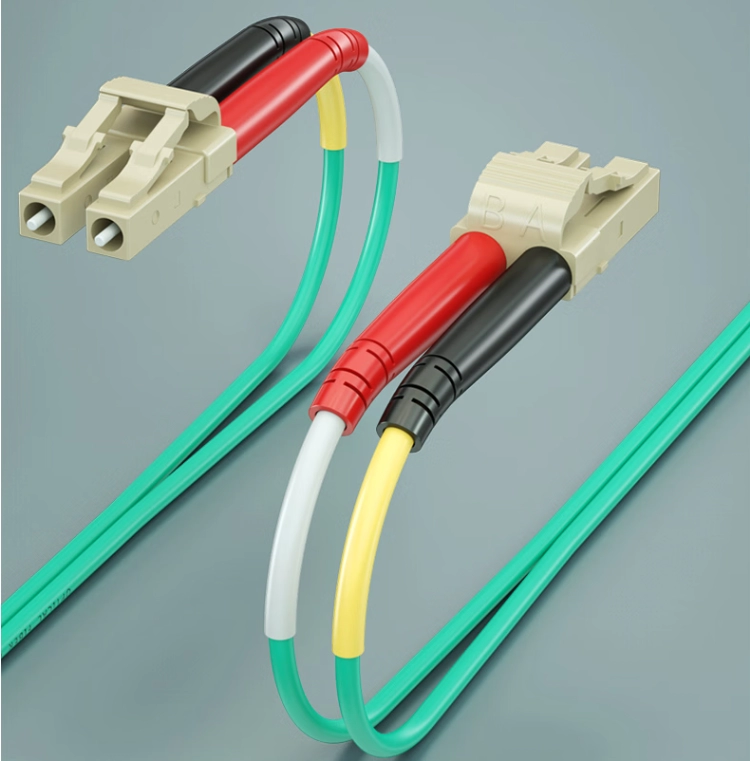

OM5 fiber optic cable patch cord, multimode fiber jumper cable, dedicated fiber for data center room switching ,Fiber Patch Cord

Specifications

Connector A

LC UPC Duplex

Connector B

LC UPC Duplex

Fiber Count

2 Fibers

Fiber Grade

Bend Insensitive

Fiber Mode

OM5 50 / 125μm

Wavelength

850/1300nm

Polarity

A (Tx) to B (Rx)

Cable Type

Tight-Buffered

Cable Outside Diameter (OD)

2.0mm

Flame Rating

Riser (OFNR)

Min. Bend Radius (Optical Fiber)

7.5mm

Min. Bend Radius (Fiber Cable)

20/10D (Dynamic/Static)

Connector Durability

1000 times

Tensile Strength (Long/Short Term)

90/150N

Insertion Loss

≤0.3dB

Return Loss

≥30dB

Attenuation at 850 nm

3.0dB/km

Attenuation at 1300 nm

1.0dB/km

Operating Temperature

-20 to 70°C (-4 to 158℉)

Storage Temperature

-40 to 80°C (-40 to 176℉)

OM5 multimode fiber jumper, data center room switching special fiber introduction

OM5 Multimode Fiber Patch Cable Product Overview:

OM5 fiber patch cords are a new generation of multimode fiber optic connectivity components using OM5 (50/125 μm) broadband multimode fiber (WBMMF), designed for short-range, ultra-high-speed fiber optic communication systems. OM5 fiber patch cords support longer transmission distances and higher bandwidth, making them particularly suitable for data centers, enterprise networks, and high-performance computing environments.

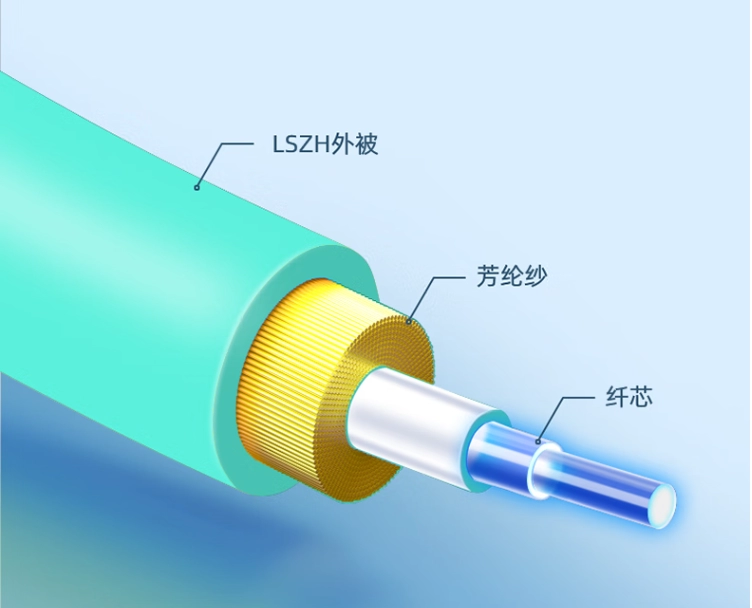

OM5 multimode fiber patch cord product structure:

• Fiber Type: OM5 broadband multimode fiber (50/125 μm).

• Connector type: Optional LC, SC, ST, FC, MTP/MPO, etc., support simplex or duplex configuration.

• Sheath material: Low smoke and halogen-free (LSZH) or PVC, with flame retardant and environmentally friendly properties.

• Outer diameter: Usually 2.0mm or 3.0mm, it can be customized according to requirements.

• Length: Standard lengths are 1m, 2m, 3m, 5m, 10m, etc. Customized lengths are supported.

OM5 Multimode Fiber Patch Cord Product Features

1. Ultra-high bandwidth performance:OM5 fiber optic jumpers support higher bandwidth (typically 4700MHz · km) at a wavelength of 850nm, making them suitable for short-distance ultra-high-speed data transmission.

3. Support for short wavelength division multiplexing (SWDM):Support for short-wavelength division multiplexing technology allows the transmission of multiple wavelengths (e.g. 850nm and 940nm) on a single fiber, significantly enhancing transmission capacity.

5. Short-distance ultra-high-speed transmission:Supports 40Gbps (40GBASE-SR4), 100Gbps (100GBASE-SR4), and 400Gbps (400GBASE-SR8) Ethernet applications, with better transmission distance than OM3 and OM4 fibers.

7. Low insertion loss:Low insertion loss (typically less than or equal to 0.3 dB) ensures high signal transmission efficiency.

9. Easy to install and maintain:The structure design is simple, easy to plug and unplug, supports rapid deployment and maintenance, and reduces operation and maintenance costs.

11. Wide compatibility:Compatible with a wide range of network devices, such as switches, routers, servers, and storage devices, for use in data centers, enterprise networks, and high-performance computing environments.

13. Durability:The sheath material has excellent wear resistance and tensile resistance, prolonging the service life. The low-smoke halogen-free sheath meets the requirements of environmental protection and flame retardancy, and is suitable for scenes with high safety standards.

15. Multiple connector options:We provide LC, SC, ST, FC, MTP/MPO and other connector types to meet different application requirements.

OM5 multimode fiber jumper application scenario

• Data center: Suitable for ultra-high-speed connections between servers, switches, and storage devices.

• Enterprise network: High-performance network cabling for businesses, campuses, and office buildings.

• High-performance computing: Suitable for high-performance computing clusters and cloud computing environments.

• Security monitoring: Suitable for signal transmission in high-bandwidth video surveillance systems.

• Industrial communication: For short-range ultra-high-speed communication in industrial automation and control systems.
