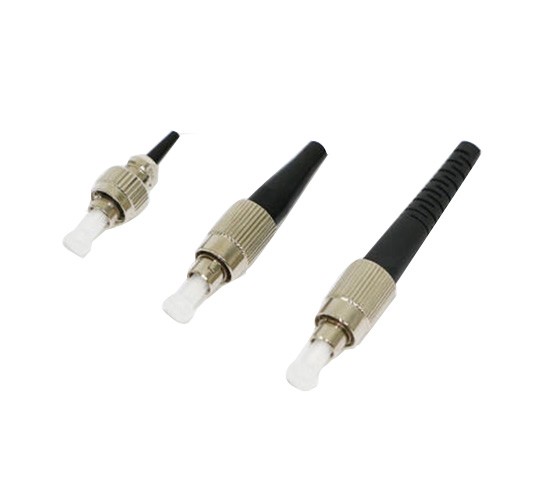

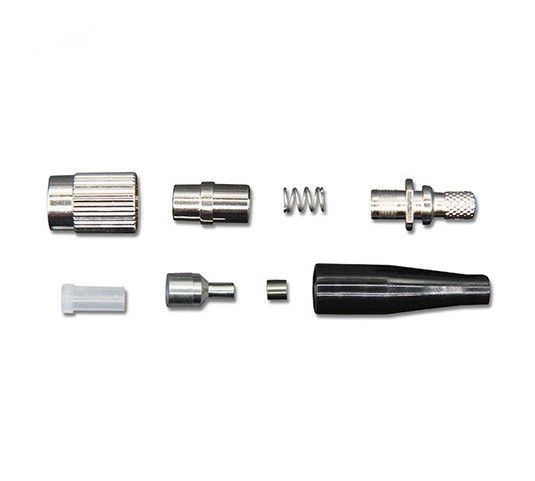

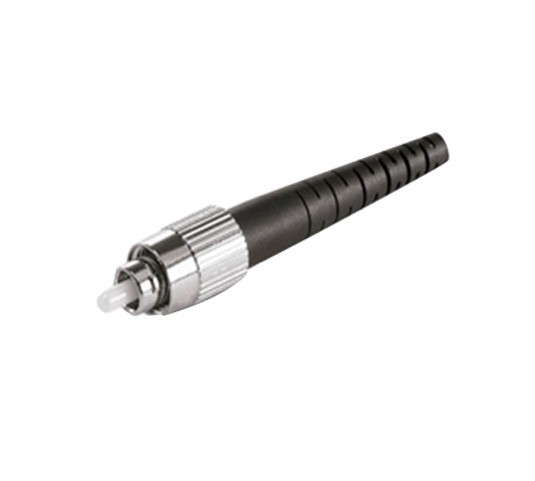

FC connector, UPC, Mode/Multimode fiber optic connectors

FC connector, UPC, Mode/Multimode fiber optic connectors Description:Low insertion loss and high return lossGood reuse performanceFC connector, UPC, Mode/Multimode fiber optic connectors applicationOptical fiber communication systemFiber Access NetworkCATVOptical fiber data communicationFiber opti...

Inquiry

Product Attributes

Port type:Simple, double
ConnectorType:FC,ST,SC,LC
PolishingType:UPC
FiberType:Single-mode,Muti-mode
ProductModel:FCconnector

Product Technical Parameters

Product Description

FC connector, UPC, Mode/Multimode fiber optic connectors Description:

Low insertion loss and high return loss
Good reuse performance

FC connector, UPC, Mode/Multimode fiber optic connectors application

Optical fiber communication system

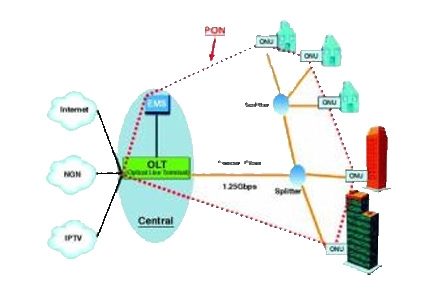

Fiber Access Network

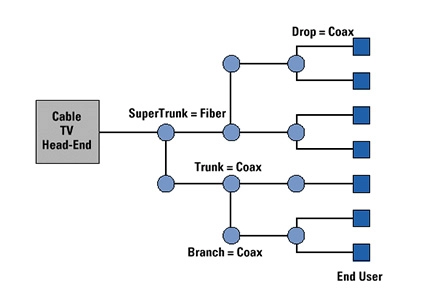

CATV
Optical fiber data communication
Fiber optic test equipment

Specifications

Item	UPC		APC
	Φ0.125mm	Φ0.25mm	Φ0.125mm	Φ0.25mm
Radius of Curve(mm)	7~25	10~25	5~12	5~12
Return Loss(dB)	50	50	55	55
Apex Offset(um)	≤50
Fiber Height(nm)	-0.5
Polishing Angle(°)	8±0.3
Testing wavelength(nm)	1310&1550
Insertion Loss	≦0.3dB
Operating temperature	-40℃~ +80℃
Cable diameter	0.9mm, 2mm, 3mm
Service life	N＞1000
Dust Cap	LDPE
Connectors type	FC, ST, SC, LC
Polishing type	UPC, APC
Fiber type	Single-mode, Muti-mode
Port type	Simple, double
Application	drop cable/patch cords/pigtail
