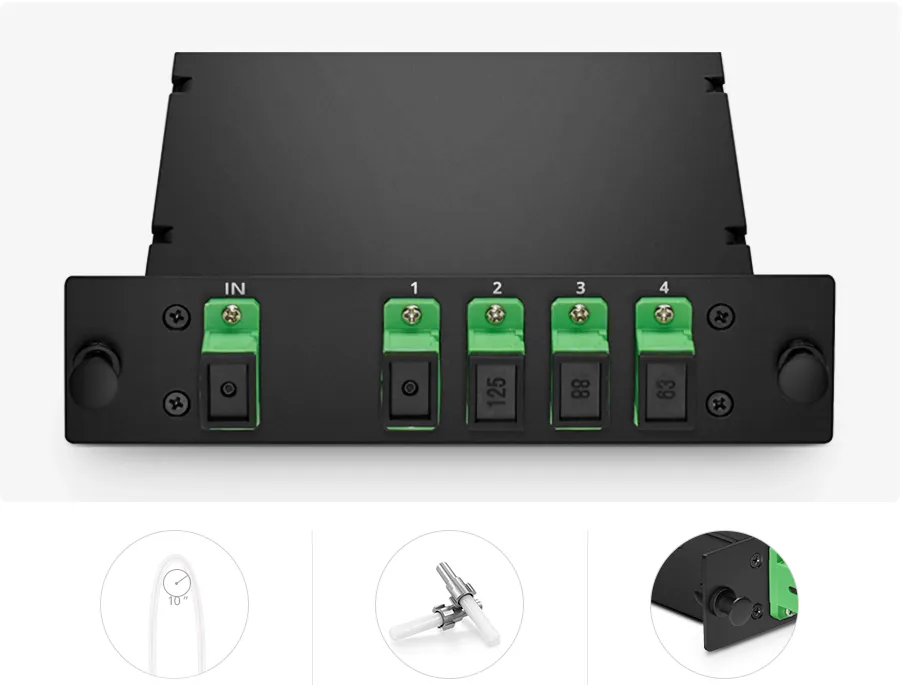

1×4 PLC Fiber Optic Splitter | LGX Cassette | Single-mode G652D/G657A | SC/LC/FC/ST, UPC/APC Customizable| Low Insertion Loss · High Return Loss | Suitable for FTTH/PON/ODF Distribution Scenarios.

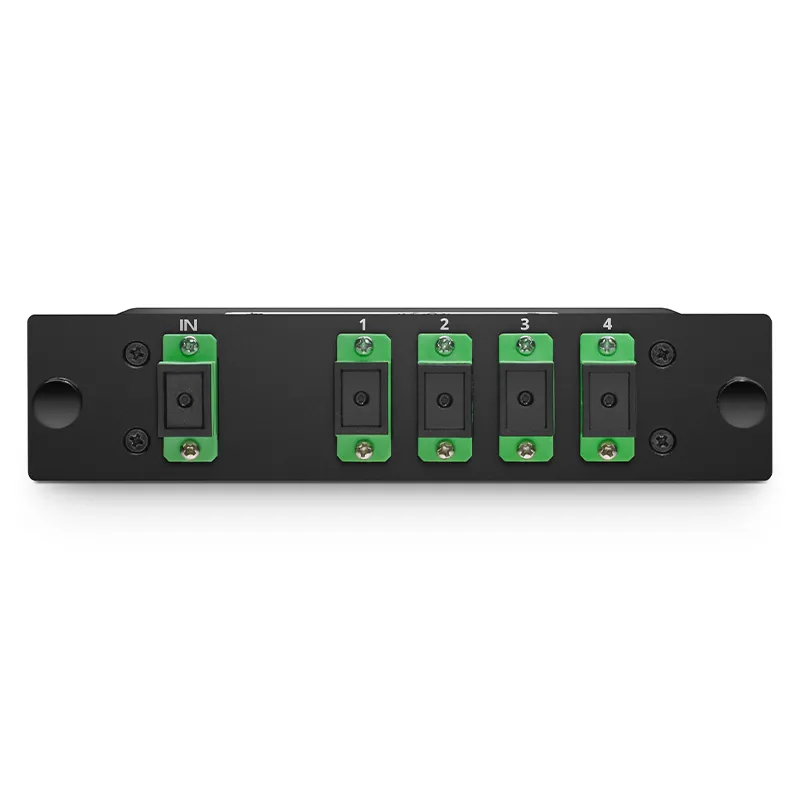

This 1x4 PLC fiber optic splitter adopts a compact LGX cassette design, offering efficient optical signal distribution for FTTH and PON systems. It supports singlemode G652D and G657A optical fibers and comes with SC/APC connectors by default. Optional configurations with LC, FC, ST connectors and UPC/APC polish are also available....

Inquiry

Product Attributes

ConnectorType:LC/SC/ST/FC，APC/UPC
Fiber Type:G.657A1
Fiber Mode:Singlemode
Package Style:LGX Box
Configuration Type:1x4

Product Technical Parameters

Product Description

Key Features

• 1x4 splitter design for balanced optical signal division

• Space-saving LGX cassette enclosure

• Compatible with singlemode G652D and G657A fibers

• Default with SC/APC connectors and 2.0mm pigtails

• Connector customization: LC, FC, ST; polish: UPC/APC

• Low insertion loss, stable performance, and high reliability

Applications

• FTTH and FTTx optical access networks

• Passive Optical Network (PON) distribution

• Central office fiber management

• CATV and enterprise data wiring systems

Case

Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support

Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey

Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia

Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber

OVERVIEW Download

Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop

首4.jpg 首5.jpg 首3.jpg 首2.jpg 首1.jpg

Keywords: 1x4 PLC splitter, PLC splitter, 1x4 splitter

1x2 PLC Fiber Splitter – LGX Cassette, Singlemode G652D/G657

1x8 PLC Optical Splitter – LGX Module, Singlemode G652D/G657

Product Inquiry

Please read our Terms and Conditions and this Policy before accessing or using our Services. If you cannot agree with this Policy or the Terms and Conditions, please do not access or use our Services. If you are located in a jurisdiction outside the European Economic Area, by using our Services, you accept the Terms and Conditions and accept our privacy practices described in this Policy.
We may modify this Policy at any time, without prior notice, and changes may apply to any Personal Information we already hold about you, as well as any new Personal Information collected after the Policy is modified. If we make changes, we will notify you by revising the date at the top of this Policy. We will provide you with advanced notice if we make any material changes to how we collect, use or disclose your Personal Information that impact your rights under this Policy. If you are located in a jurisdiction other than the European Economic Area, the United Kingdom or Switzerland (collectively “European Countries”), your continued access or use of our Services after receiving the notice of changes, constitutes your acknowledgement that you accept the updated Policy. In addition, we may provide you with real time disclosures or additional information about the Personal Information handling practices of specific parts of our Services. Such notices may supplement this Policy or provide you with additional choices about how we process your Personal Information.

Cookies

Cookies are small text files stored on your device when you access most Websites on the internet or open certain emails. Among other things, Cookies allow a Website to recognize your device and remember if you've been to the Website before. Examples of information collected by Cookies include your browser type and the address of the Website from which you arrived at our Website as well as IP address and clickstream behavior (that is the pages you view and the links you click).We use the term cookie to refer to Cookies and technologies that perform a similar function to Cookies (e.g., tags, pixels, web beacons, etc.). Cookies can be read by the originating Website on each subsequent visit and by any other Website that recognizes the cookie. The Website uses Cookies in order to make the Website easier to use, to support a better user experience, including the provision of information and functionality to you, as well as to provide us with information about how the Website is used so that we can make sure it is as up to date, relevant, and error free as we can. Cookies on the Website We use Cookies to personalize your experience when you visit the Site, uniquely identify your computer for security purposes, and enable us and our third-party service providers to serve ads on our behalf across the internet.

We classify Cookies in the following categories:
● Strictly Necessary Cookies
● Performance Cookies
● Functional Cookies
● Targeting Cookies

Cookie List
A cookie is a small piece of data (text file) that a website – when visited by a user – asks your browser to store on your device in order to remember information about you, such as your language preference or login information. Those cookies are set by us and called first-party cookies. We also use third-party cookies – which are cookies from a domain different than the domain of the website you are visiting – for our advertising and marketing efforts. More specifically, we use cookies and other tracking technologies for the following purposes:

Strictly Necessary Cookies
These cookies are necessary for the website to function and cannot be switched off in our systems. They are usually only set in response to actions made by you which amount to a request for services, such as setting your privacy preferences, logging in or filling in forms. You can set your browser to block or alert you about these cookies, but some parts of the site will not then work. These cookies do not store any personally identifiable information.

Functional Cookies
These cookies enable the website to provide enhanced functionality and personalisation. They may be set by us or by third party providers whose services we have added to our pages. If you do not allow these cookies then some or all of these services may not function properly.

Performance Cookies
These cookies allow us to count visits and traffic sources so we can measure and improve the performance of our site. They help us to know which pages are the most and least popular and see how visitors move around the site. All information these cookies collect is aggregated and therefore anonymous. If you do not allow these cookies we will not know when you have visited our site, and will not be able to monitor its performance.

Targeting Cookies
These cookies may be set through our site by our advertising partners. They may be used by those companies to build a profile of your interests and show you relevant adverts on other sites. They do not store directly personal information, but are based on uniquely identifying your browser and internet device. If you do not allow these cookies, you will experience less targeted advertising.

How To Turn Off Cookies
You can choose to restrict or block Cookies through your browser settings at any time. Please note that certain Cookies may be set as soon as you visit the Website, but you can remove them using your browser settings. However, please be aware that restricting or blocking Cookies set on the Website may impact the functionality or performance of the Website or prevent you from using certain services provided through the Website. It will also affect our ability to update the Website to cater for user preferences and improve performance. Cookies within Mobile Applications

We only use Strictly Necessary Cookies on our mobile applications. These Cookies are critical to the functionality of our applications, so if you block or delete these Cookies you may not be able to use the application. These Cookies are not shared with any other application on your mobile device. We never use the Cookies from the mobile application to store personal information about you.

If you have questions or concerns regarding any information in this Privacy Policy, please contact us by email at . You can also contact us via our customer service at our Site.

Specifications	Details	Specifications	Details
Package Style	LGX Box	Configuration Type	1x4
Fiber Grade	G.657A1	Fiber Mode	Singlemode
Connector Type	SC/APC	Split Ratio	Symmetrical
Insertion Loss	≤ 7.3dB	Return Loss	≥ 55dB
Loss Uniformity	≤ 0.6dB	Directivity	≥ 55dB
Polarization Dependent Loss	≤ 0.2dB	Temperature Dependent Loss	≤ 0.5dB
Wavelength Dependent Loss	≤ 0.3dB	Operating Wavelength	1260~1650nm
Dimensions (HxWxD)	1.14"x5.08"x6.10" (29x129x155mm)	Temperature	Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F)
