Product Technical Parameters
| cable type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight Kg/km | (N) Tensile strength (Short-term) | (N) Tensile strength (Long-term) | (N/100mm) Crush strength (Short-term) | (N/100mm) Crush strength (Long-term) | (mm) Bending radius (During Installation) | (mm) Bending radius (After Installation) |
|---|
| GYFTY53-2-6 | 2-6 | 1 | 7 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-4-12 | 6-12 | 2 | 6 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-14-18 | 14-18 | 3 | 5 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-20-24 | 20-24 | 4 | 4 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-26-30 | 26-30 | 5 | 3 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-32-36 | 32-38 | 6 | 2 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-38-42 | 38-42 | 7 | 1 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-44-48 | 44-48 | 8 | 0 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-50-60 | 50-60 | 5 | 3 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-62-72 | 62-72 | 6 | 2 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-74-84 | 74-84 | 7 | 1 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-86-96 | 86-96 | 8 | 0 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-98-108 | 98-108 | 9 | 1 | 19.2 | 320 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-110-120 | 110-120 | 10 | 0 | 19.2 | 320 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-122-132 | 122-132 | 11 | 1 | 21.2 | 360 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-134-144 | 134-144 | 12 | 0 | 21.2 | 360 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
Product Description

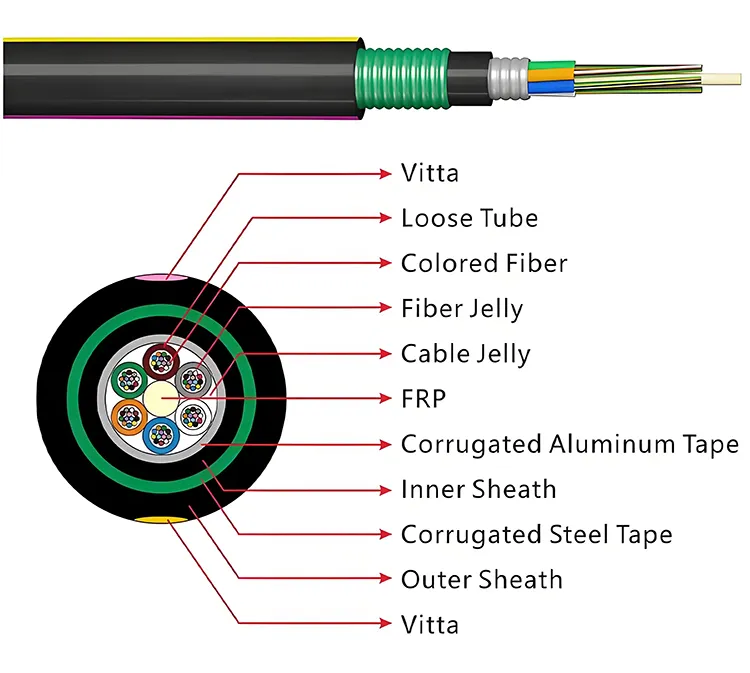

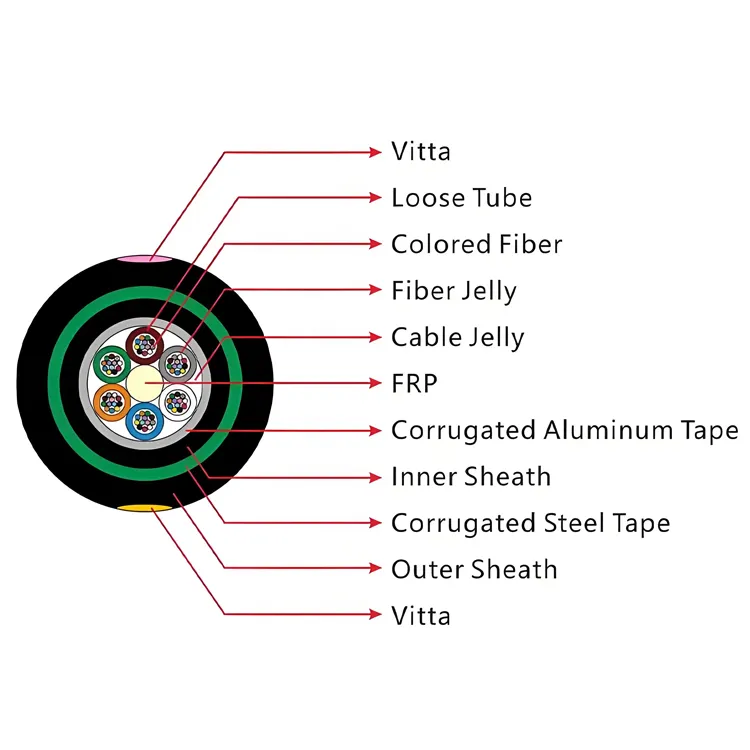

GYFTY53 fibers ,250μm，are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound.A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.The tubes
(and fillers) are stranded around the strength member into a compact and circular cable core.Then the cable core is covered with
a thin Polyethylene (PE) inner sheath,which is filled with jelly to protect it from water ingress.A layer of water-blocking material
is applied around the cable core to prevent it from water ingress all the same.After a corrugated steel tape armor is applied,the
cable is completed with a PE outer sheath.
Application:Duct/Aerial/Direct buried.
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cablewatertight:
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof
Water-blocking material
Standards
Complies with Standard YD/T 901-2009 as well as IEC 60794-1.
Packaging Requirements:

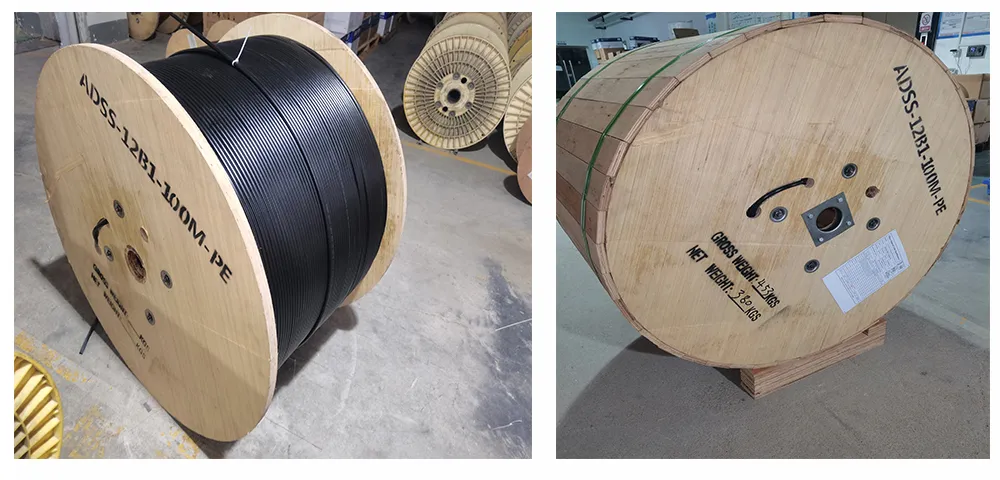

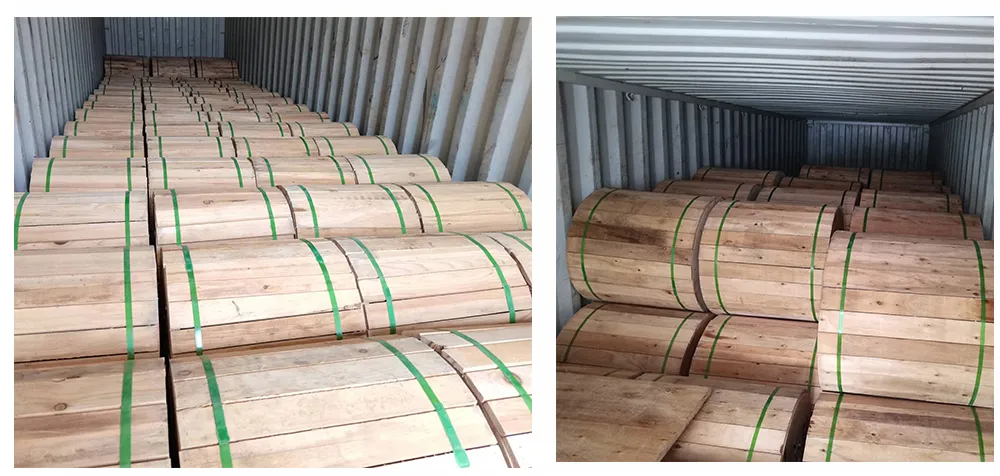

- 1：All cables shall be wound on treated wooden spools that are not returnable
- 2：Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
- 3：Each spool must include:
- 1、 Protective plastic wrapping layer
- 2、 Reinforcing wooden slats for stability
- 3、 Minimum 1m of free cable end for testing purposes
- 4、 Standard spool length: 3000mm (±2% tolerance allowed)
Cable Identification:

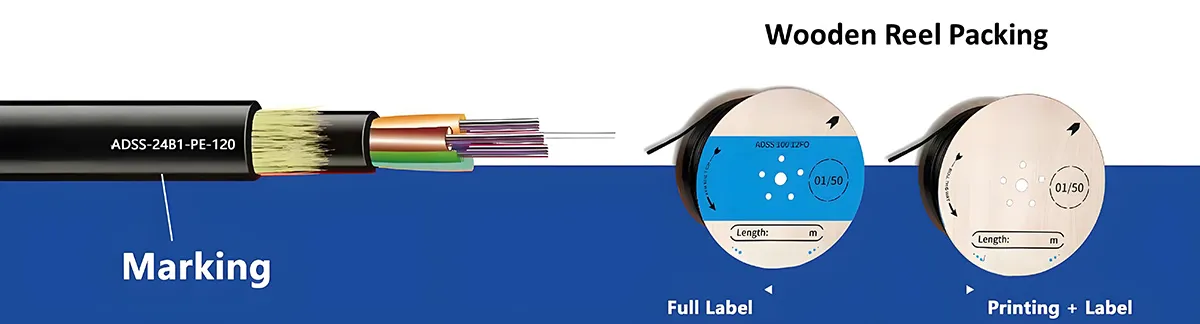

The outer jacket must display:
- 1、Unique sequential numbering every 1m (±1% variance permitted)
- 2、 Additional repeating markings at 1m intervals showing:
- 1、 Product code and fiber count
- 2、 Manufacturer identification
- 3、 Production date (month/year)
- 4、Total cable length
Standard Packaging Dimensions:
| Length | Container | Size (L×W×H) | Net Mass | Total Mass |
|---|
| 2 km | Wood spool | 90×75×90 cm | 156 kg | 220 kg |
| 3 km | Wood spool | 100×68×100 cm | 240 kg | 280 kg |
| 4 km | Wood spool | 109×75×109 cm | 300 kg | 368 kg |
| 5 km | Wood spool | 129×72×129 cm | 400 kg | 480 kg |
Technical Reference:
- 1、 Standard cable diameter: 10.0mm
- 2、Maximum span distance: 100m
- 3、Contact sales team for complete technical specifications
Spool Marking Standards:
Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:
- 1、 Company name and trademark
- 2、Contained cable length
- 3、Cable specifications (type/fiber count)
- 4、Winding orientation
- 5、Weight measurements (gross/net)
Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.
Case
Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support
+
Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey
+
Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia
+
Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber
+
