1*32 PLC fiber optic Splitters Mini mododules with SC Connectors

1X32 PLC Mini Module Splitters with SC Connectors Product Detailed Introduction and Features

One.1x32 PLC Mini Module Splitters with SC Connectors Product Overview

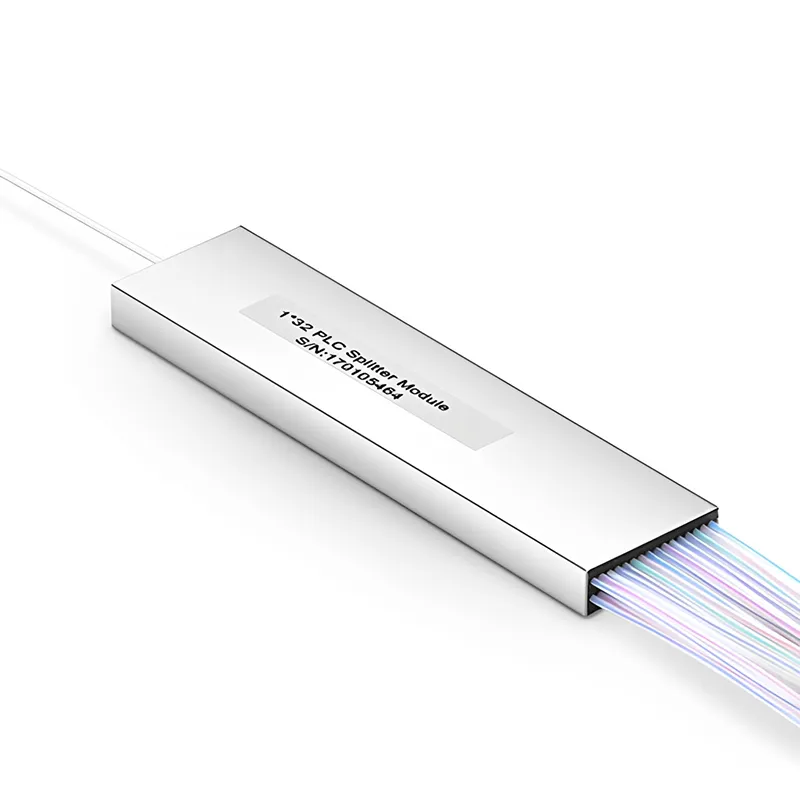

1x32 PLC Mini Module Splitter It is a high-density optical splitter based on planar optical waveguide (PLC) technology, designed to evenly distribute a single input optical signal to 32 output ports. Using a compact packaging process combined with SC/APC connectors, it is suitable for scenarios such as ultra-large-scale fiber-to-the-home (FTTH), data center backbone networks, fiber optic sensing systems, and industrial monitoring. It is especially suitable for deployments that require extreme space utilization and high split-to-circuit ratios.

II.1x32 PLC Mini Module Splitters with SC Connectors Core Features

1. Ultra-high density spectroscopy
   • The PLC chip realizes 32 channels of uniform splitting, and the output optical power difference (uniformity) is less than or equal to 1.5dB, ensuring the stability of multi-port signals.

3. Low insertion loss design

   • Typical insertion loss: ≤ 17.0dB (including connectors), optimizing long-distance transmission efficiency.
4. Wide wavelength compatibility
   • Operating wavelength range: 1260-1650nm, support single-mode fiber (G.652D/G.657A/G.657B, etc.).
5. Compact Modular Package
   • sizeMetal cassette package (e.g. 120x25x8mm) for dense rack mounting.

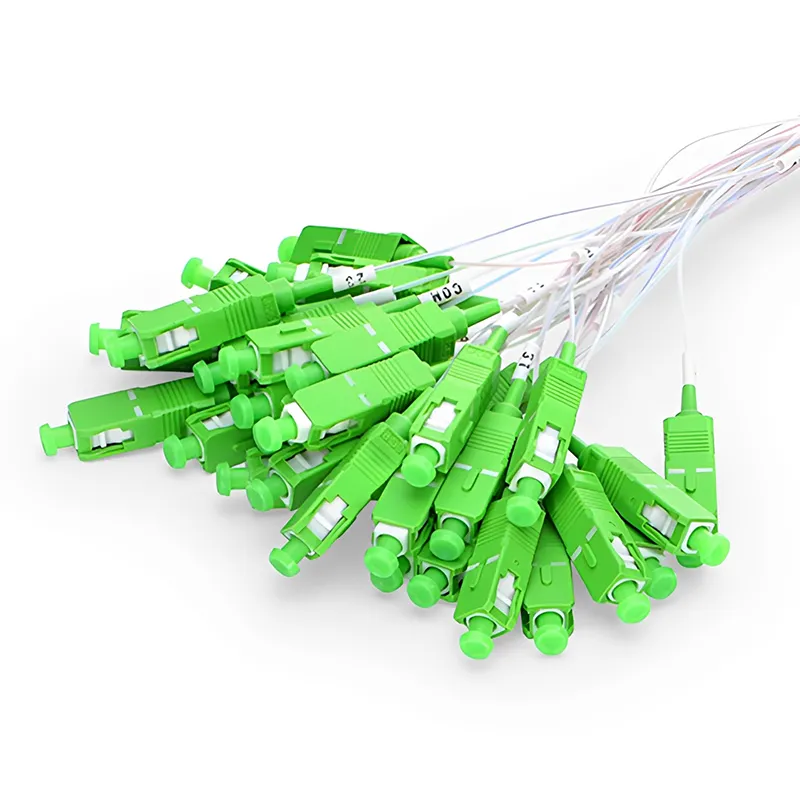

   • connectorStandard SC/APC interface, compatible with industry standards, low insertion loss (≤ 0.3dB).
6. Environmental adaptability
   • Operating temperature: -40 ° C to + 85 ° C, humidity 5% to 95% RH, suitable for indoor and outdoor harsh environments.
   • Compliant with standards: Telcordia GR-1221, RoHS, CE, IEC 60529 (IP65 optional).

IV.1x32 PLC Mini Module Splitters with SC Connectors Typical application scenarios

1. Hyperscale FTTH Network: A single fiber can be divided into 32 households, significantly reducing the cost of laying backbone fibers.
2. data center core layerSignal shunt between the core switch and the multi-cabinet server cluster to support high-density computing nodes.
3. Optical Fiber Sensing ArrayMulti-parameter synchronous acquisition in long-distance distributed monitoring (e.g. smart grids, oil and gas pipelines).
4. Security monitoring integrationSingle channel video signal is divided into multiple area monitoring end point or storage server cluster.

V.1x32 PLC Mini Module Splitters with SC Connectors Advantages Summary

• Ultimate integration densityThe 32-channel splitter is only slightly larger than the traditional 16-channel product, and the space efficiency is increased by 50%.
• Significant cost-effectivenessThe cost of a single port decreases with the increase of the shunt ratio, and the cost performance of large-scale deployment is outstanding.
• High reliability designPLC chip passive characteristics + metal packaging, anti-electromagnetic interference, lifespan over 20 years.
• Flexible scalabilitySupport for cascading or parallel connections to build hyperscale networks (e.g. 1x64/1x128 split).

1x32 PLC Mini Module Splitter By combining the high-density spectroscopy of PLC technology with the convenience of SC connectors, it provides a stable and efficient solution for scenarios that require large-scale optical signal distribution, especially for complex networks with tight space or extreme split ratios.
