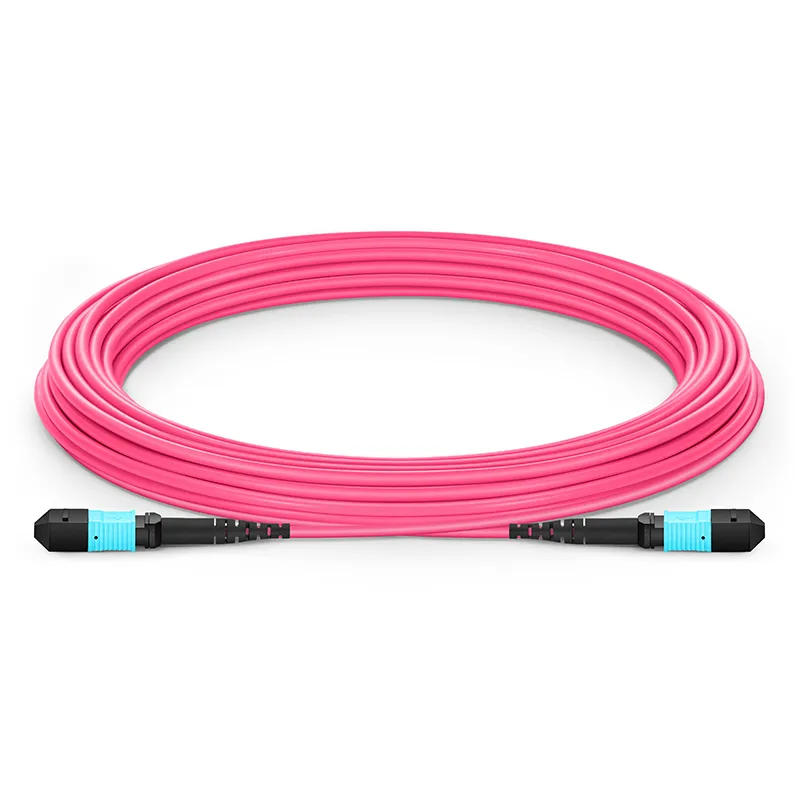

MPO-MPO fiber optic cable patch cord, female multi-mode Fiber Jumper cable 8-core 12-core 16-core 24-core 40G/100G/200G/400G，fiber jumper cables

MPO-MPO fiber optic patch cord female multi-mode 8-core 12-core 16-core 24-core 40G/100G/200G/400G

MPO-MPO fiber patch cord technical parameters

MPO-MPO Fiber Optic Patch Cord Product Detailed Introduction

MPO-MPO Fiber Optic Patch Cable Product Overview:

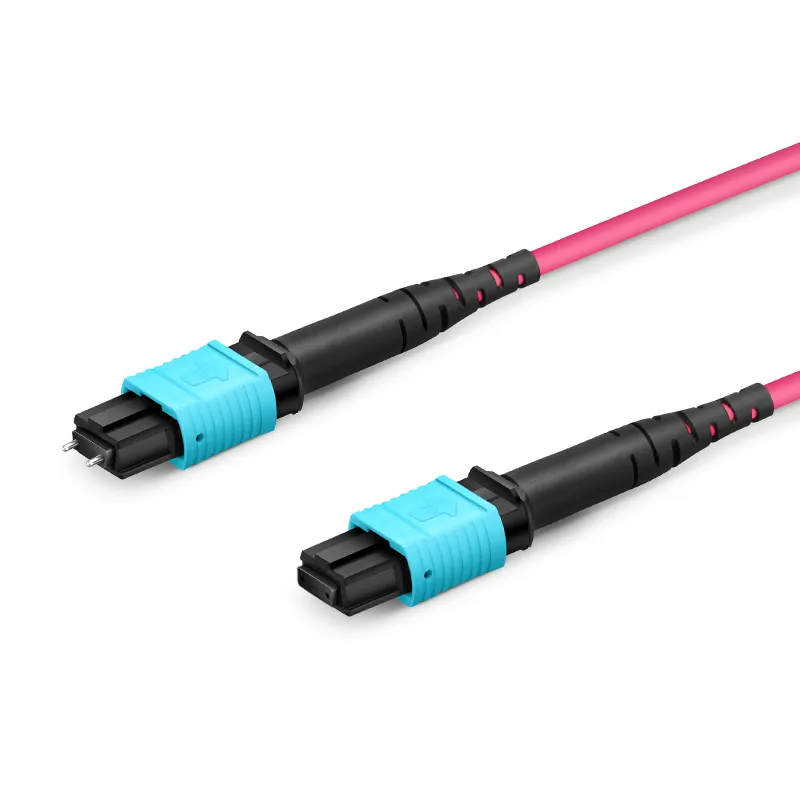

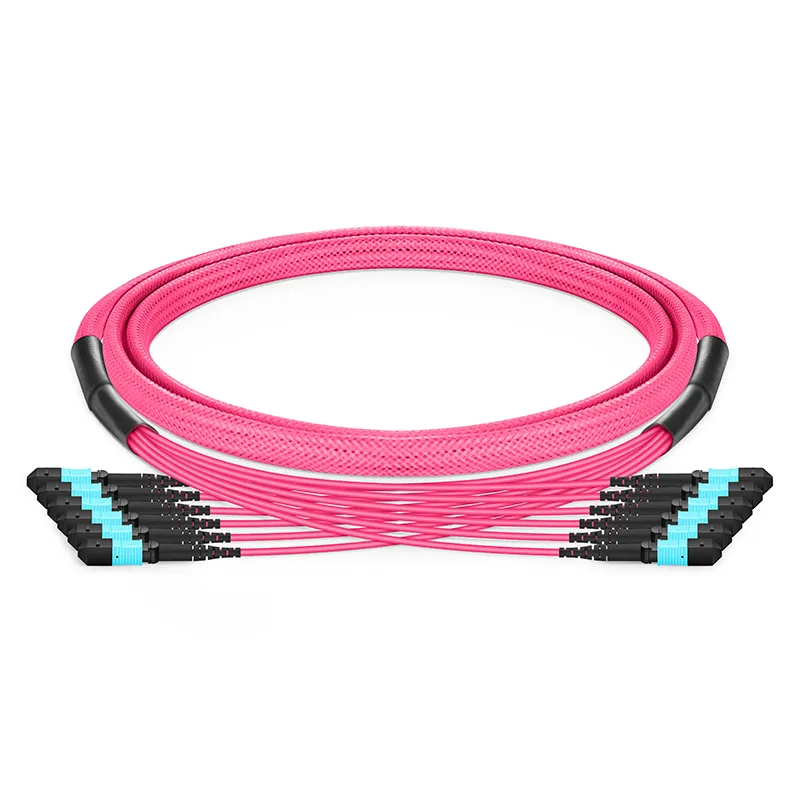

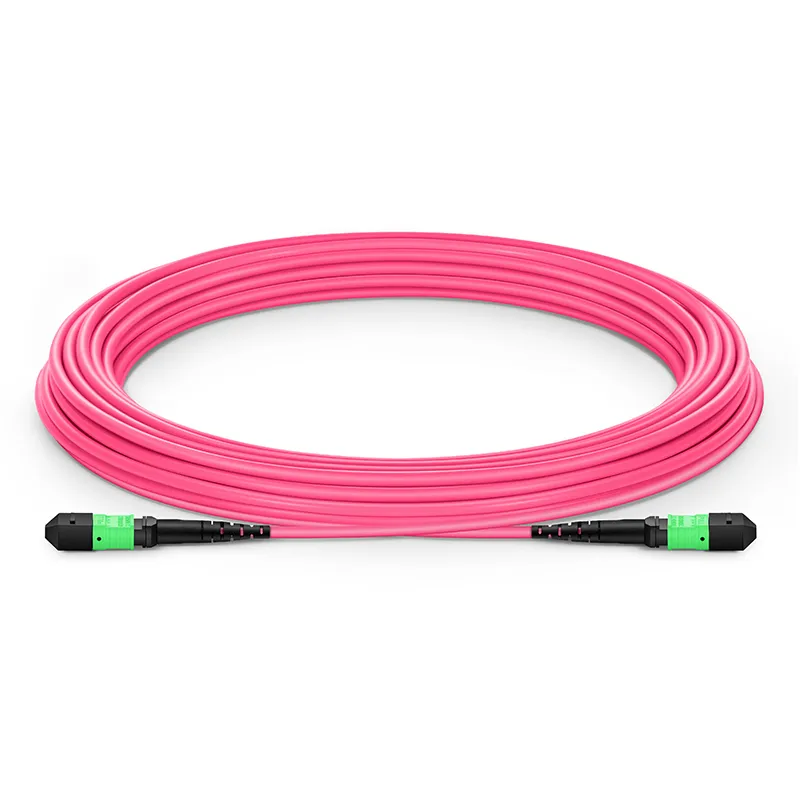

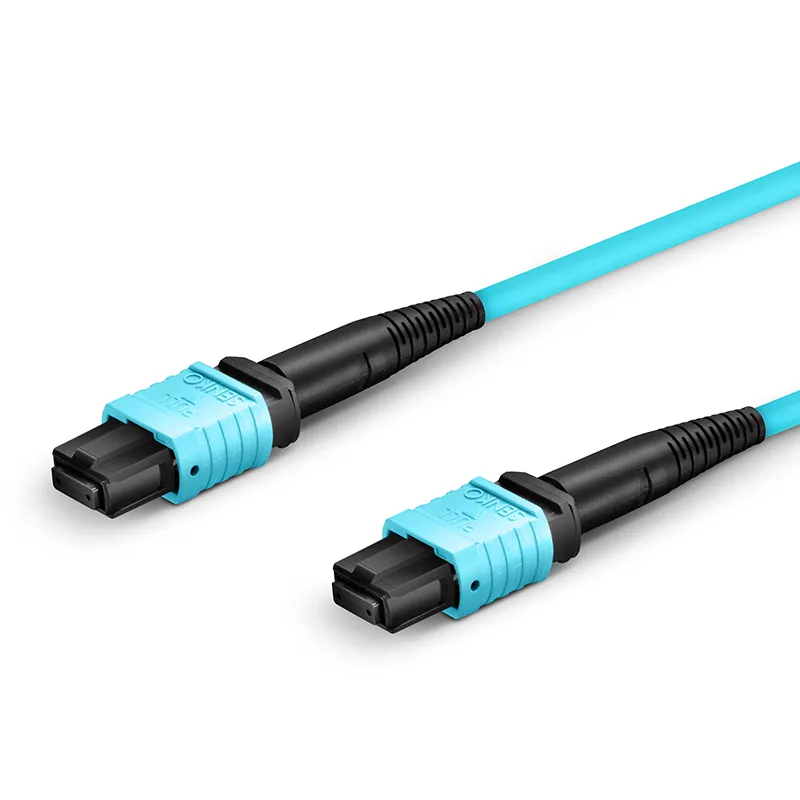

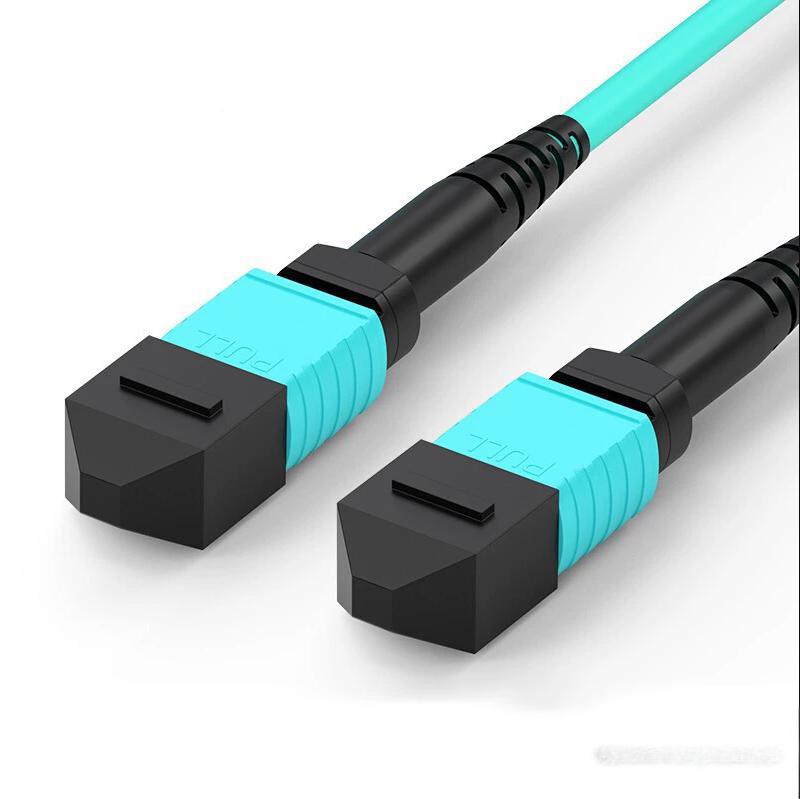

MPO-MPO fiber patch cable is a high-density multi-core fiber optic connection component. It adopts MPO (Multi-fiber Push-On) connector and is suitable for high-density wiring scenarios. MPO connectors can support parallel connections of 12-core, 24-core or more fibers, and are widely used in data centers, high-speed networks and high-performance computing environments.

MPO-MPO Fiber Optic Patch Cable Product Structure:

• Fiber Type: Multimode (OM3/OM4/OM5) or single-mode (OS2).

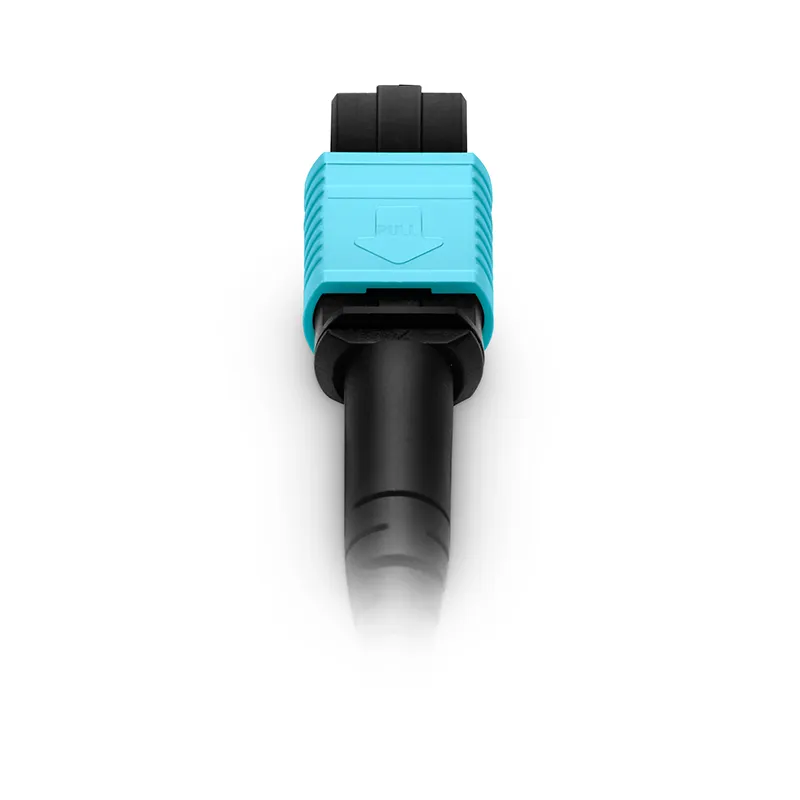

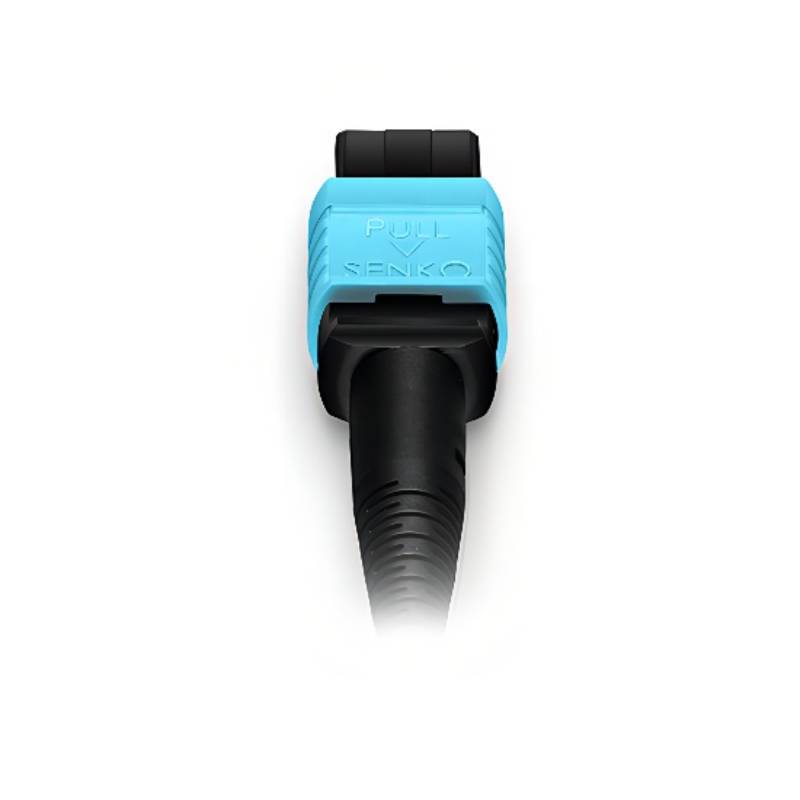

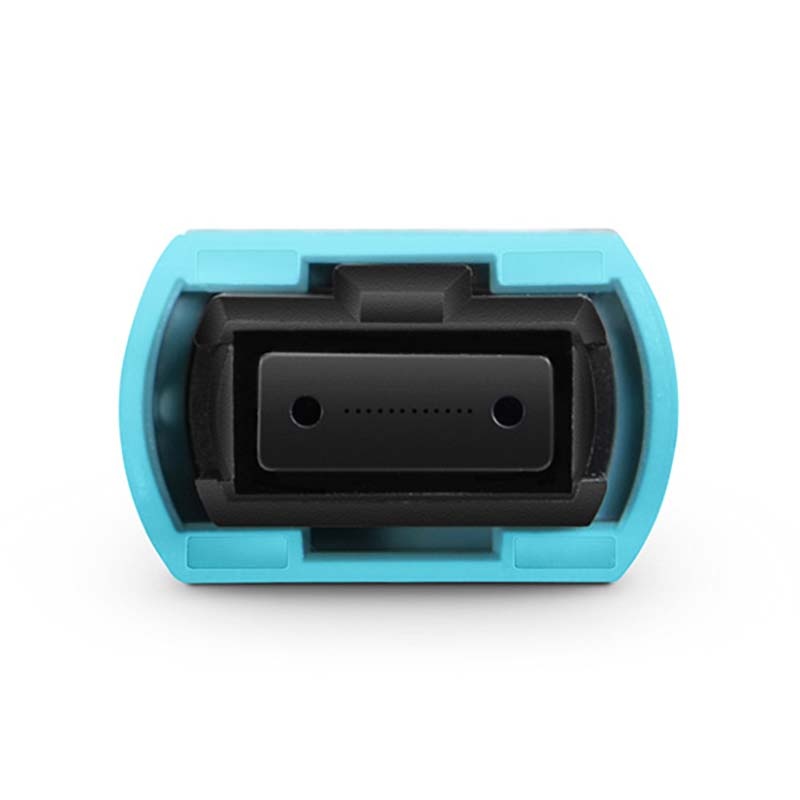

• Connector type: MPO-MPO (both ends are MPO connectors).

• Number of cores: Usually 12 or 24 cores, support custom core count.

• Sheath material: Low smoke and halogen-free (LSZH) or PVC, with flame retardant and environmentally friendly properties.

• Outer diameter: Usually 3.0mm or 4.5mm, it can be customized according to requirements.

• Length: Standard lengths are 1m, 2m, 3m, 5m, 10m, etc. Customized lengths are supported.

MPO-MPO Fiber Optic Patch Cord Product Features

1. High density connection:

   MPO connectors support multi-core fiber optic parallel connection, significantly increasing the wiring density, saving space, and are suitable for high-density environments such as data centers.

2. High-speed transmission:

   It supports high-speed network transmission standards such as 40Gbps, 100Gbps, and 400Gbps, meeting the high-speed requirements of modern data centers.

3. Low insertion loss:

   Low insertion loss (typically less than or equal to 0.5 dB) ensures high signal transmission efficiency.

4. Easy to install and maintain:

   The MPO connector adopts a push-pull design, which is easy to plug and unplug, supports rapid deployment and maintenance, and reduces operation and maintenance costs.

5. Wide compatibility:

   Compatible with a wide range of network devices, such as switches, routers, and servers, for use in data centers, cloud computing, and high-performance computing environments.

6. Durability:

   The sheath material has excellent wear resistance and tensile resistance, prolonging the service life. The low-smoke halogen-free sheath meets the requirements of environmental protection and flame retardancy, and is suitable for scenes with high safety standards.

7. A variety of fiber types are available:

   Supports multimode (OM3/OM4/OM5) and single-mode (OS2) fibers to meet different transmission distances and bandwidth requirements.

MPO-MPO Optical Fiber Jumper Application Scenario

• Data center: High-speed connection between servers, switches and storage devices.

• High-speed network: Suitable for 40G/100G/400G Ethernet transmission.

• Cloud Computing: High-density cabling for cloud computing platforms.

• High-performance computing: It is suitable for parallel data transmission in supercomputers and cluster systems.

• Telecommunications network: Used in high-density optical fiber distribution frames and transmission equipment.
