Product Technical Parameters
GYTA Stranded Loose Tube Light Armored Fiber Optic Cable / Armored optical cable , G652D/G655
*The data is too long. View in landscape mode on mobile phoneoptical propertiesG.652G.65550 / 125μm62.5/125 μmAttenuation (+20℃)@850nm3.0 dB/km3.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="a1cacce190929191cfcc908f91">[email protected]</a> dB/km1.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="c8a3a588f9fbf9f8a6a5f8e6fbfe">[email protected]</a> dB/km0.40 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="aec5c3ee9f9b9b9ec0c39e809c9c">[email protected]</a> dB/km0.23dB/kmBandwidth (Class A)@850nm500 MHz·km200 MHz·km@1300nm1000 MHz·km600 MHz...
Product Attributes
- Fiber mode:G652D/G657
- OuterJacket:PE
- FiberCoreCount:2-288Cores
- FiberType:SM
- ProductModel:GYTA
Product Description
*The data is too long. View in landscape mode on mobile phone
optical properties
| G.652 | G.655 | 50 / 125μm | 62.5/125 μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
| Storage/Operating temperature | -40℃ ~+70℃ | ||||
Technical parameters
| Model | Fiber cores | Tubes | Diameter(mm) | Weight(kgs) | Tensile(N) | Crush(N) | Bending radius | ||
| Long term | Short term | Long term | Short term | Static/ Dynamic | |||||
| GYTA-12 ~ 36F | 12~36 | 2~6 | 9.2 | 80 | 800 | 1500 | 300 | 1000 | 10D/20D |
| GYTA-38 ~ 72F | 38~72 | 2~6 | 10.5 | 80 | 1000 | 3000 | 300 | 1000 | 10D/20D |
| GYTA-74 ~ 96F | 74~96 | 7~8 | 13.2 | 125 | 1500 | 3000 | 300 | 1000 | 10D/20D |
| GYTA-98 ~ 120F | 98~120 | 9~10 | 14.6 | 180 | 1800 | 3000 | 300 | 1000 | 10D/20D |
| GYTA-122 ~ 144F | 122~144 | 11~12 | 16.5 | 220 | 2000 | 3000 | 300 | 1000 | 10D/20D |
GYTA Stranded Loose Tube Light Armored fiber optic cable G652D product description

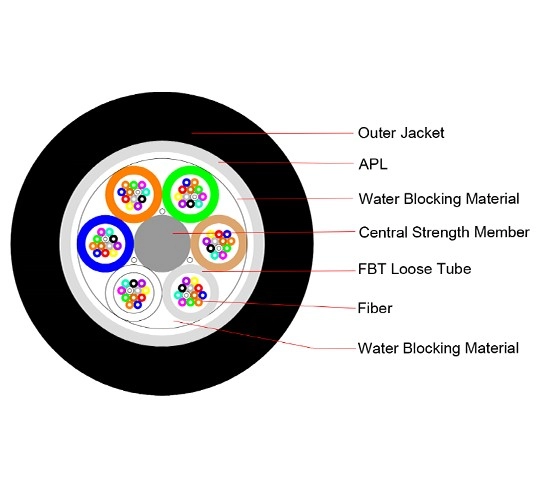

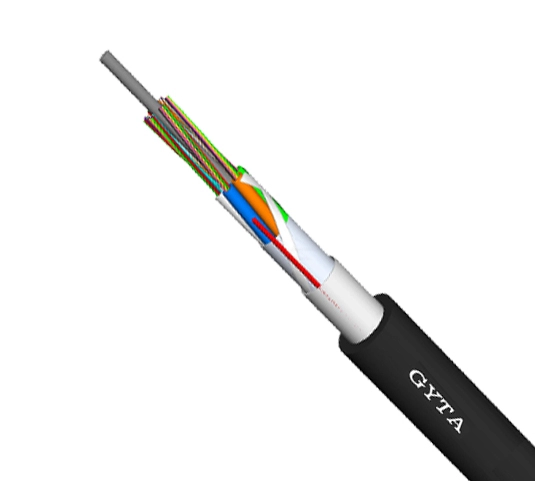

The GYTA cable places a 250 μm fiber in a loose sleeve made of high modulus plastic. The sleeve is filled with waterproof filler, and there is a steel wire in the center as a metal reinforcement. For high-core cables, PE is sometimes coated. The sleeve and filler are twisted around the reinforcement to form a compact round cable core. The cable core is covered with a layer of APL and filled with waterproof filler to prevent water from penetrating. Finally, the cable is completed with a PE jacket.
Product Features of GYTA Stranded Loose Tube Light armored fiber optic cable G652D
Good mechanical properties, good high temperature resistance
High-strength loose casing, resistant to hydrolysis
Special casing fillers play a key role in protecting optical fibers
Specially designed compact structure prevents loose casing shrinkage
Excellent PE sheath protects fiber optic cable from UV radiation
Aluminum polyethylene laminate as a moisture barrier
Application:
Pipes, overhead.
