GYXTW 4 / 6 /8 /12 core Center Loose Armored Fiber Optical Cable G652D/G655

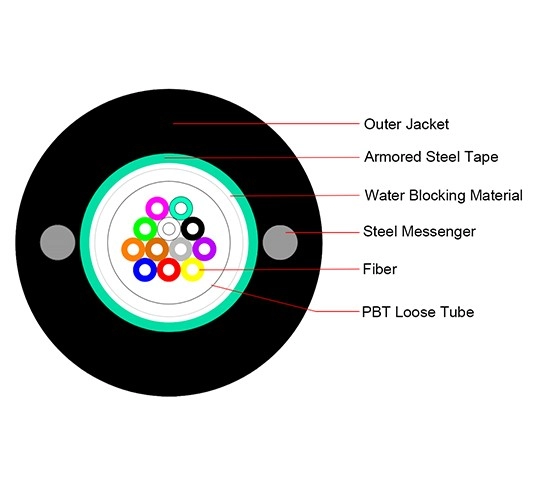

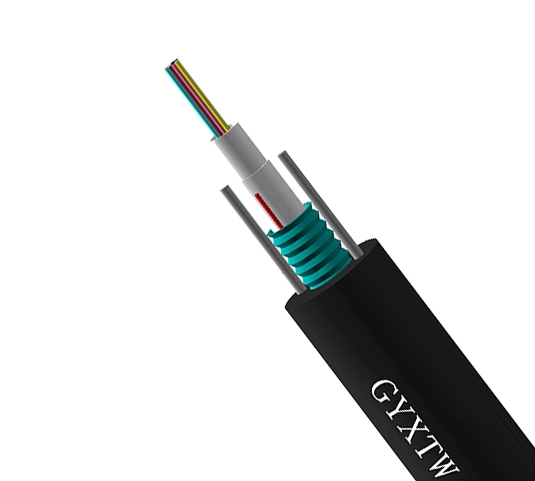

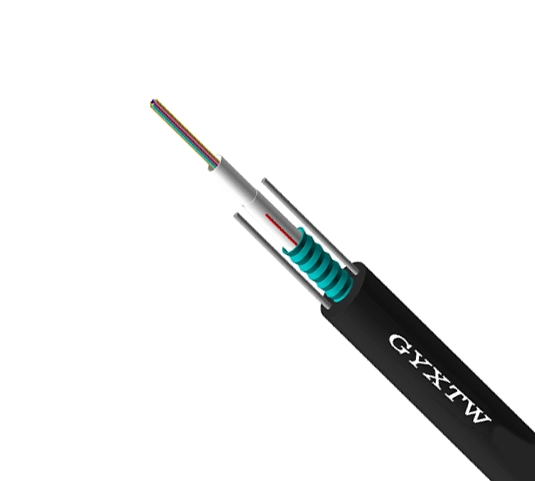

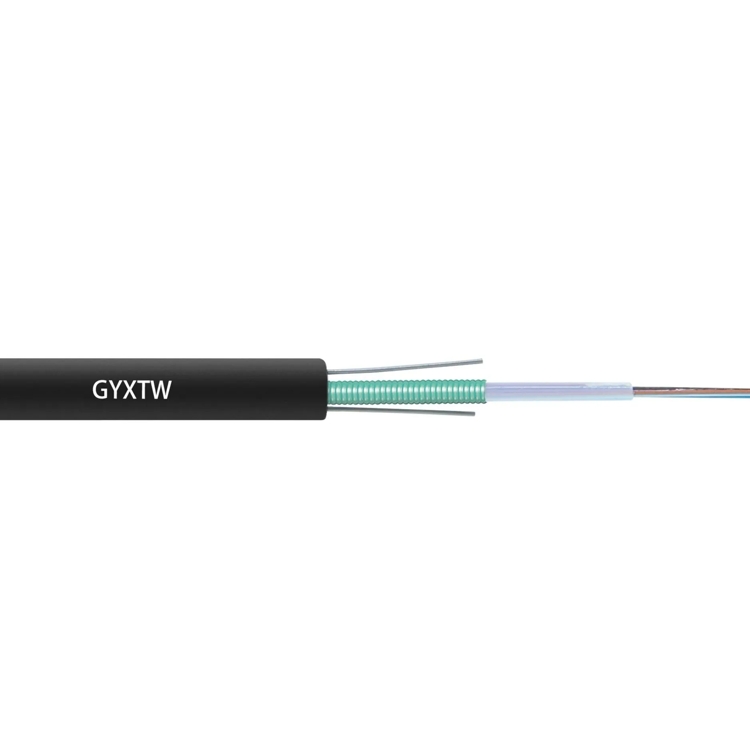

GYXTW Center Loose Armor Optical Cable Description

The GYXTW type optical cable places the optical fiber in a loose sleeve made of high modulus plastic,

the sleeve is filled with waterproof filler, the sleeve is lengthwise wrapped with a layer of PSP, and the

 water-blocking material is filled between the PSP and the sleeve. Two parallel steel wires are placed

 on both sides of the steel strip, and the optical cable is covered with a PE sheath.

Features of GYXTW Center Loose Armored Optical Cable

Good mechanical properties, good high temperature resistance

Loose casing with high strength and resistance to hydrolysis

Special casing fillers play a key role in protecting optical fibers

Anti-extrusion, good flexibility

PSP enhanced moisture resistance

Two parallel wires ensure tensile strength

Light weight, small diameter, easy installation

GYXTW Center Loose Armored Optical CableApplication:

Pipes, overhead.

*data is too long, please view it in horizontal mode.

optical properties

Technical parameters
