Plug‑in Cassette PLC Fiber Splitter – Singlemode G652D/G657A, Custom Connector Options

Plug‑in cassette PLC splitter in ABS box for singlemode G652D/G657A fiber. Default SC/APC; LC/FC/ST connectors and UPC/APC polish customizable on request....

Inquiry

Product Attributes

ConnectorType:SC/UPC,SC/APC
PolishingType:UPC,APC
Fiber Type:Single-mode,Muti-mode

Product Technical Parameters

Product Description

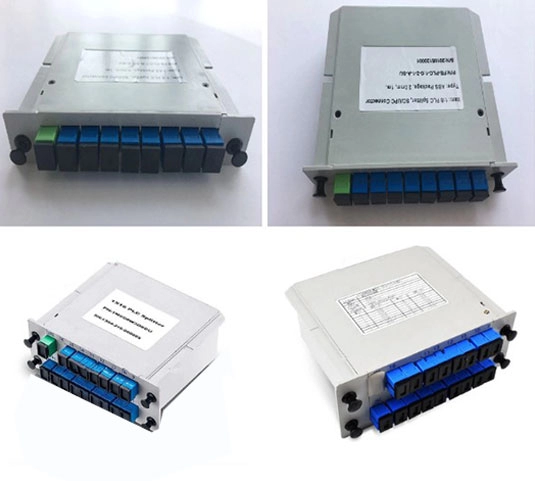

This plug‑in cassette PLC splitter is designed for easy installation into ABS enclosure systems. It supports **singlemode G652D and G657A** fibers and is pre-connected with SC/APC connectors by default. Customers may choose **LC, FC, or ST connectors** and **UPC or APC polishing** based on their system requirements.

Key Features

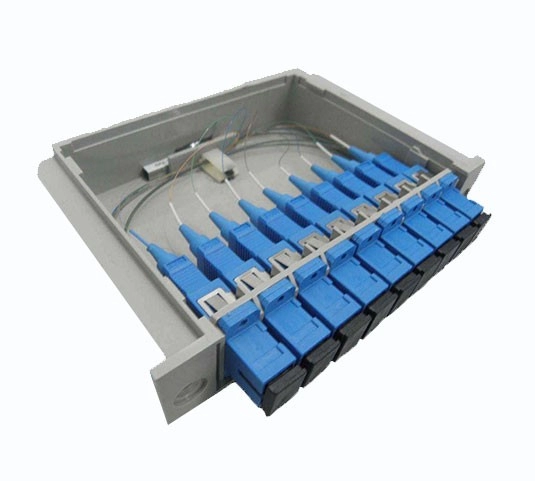

• Plug‑in cassette module that snaps into ABS box assemblies.

• Supports **singlemode G652D and G657A** for reliable long-distance transmission.

• Default SC/APC connector on 2.0mm pigtail; optional LC, FC, ST and UPC/APC upon request.

• Low insertion loss, high uniformity, and consistent optical performance.

Applications

• FTTH and FTTx distribution modules

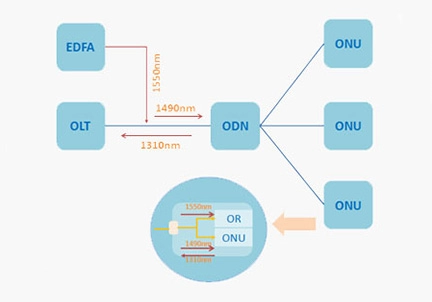

• PON and CATV optical distribution systems

• Telecom cabinets and optical cross-connect frames

• Cleaning and swapping via plug‑in modules without fusion rework

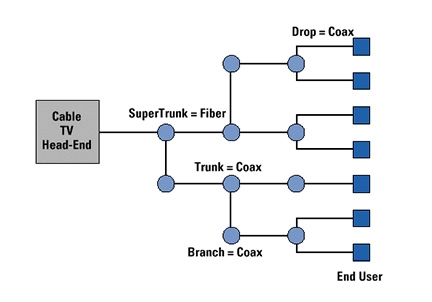

CATV-networks
FTTH projects
LAN-WAN-and-metro-networks

Plug‑in Cassette PLC Fiber Splitter – Singlemode G652D/G657A, Custom Connector Options第4张

Case

Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support

Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey

Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia

Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber

OVERVIEW Download

Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop

首4.jpg 首5.jpg 首3.jpg 首2.jpg 首1.jpg

Keywords: No keywords yet

1x32 LGX Box-Type PLC Fiber Optic Splitter | Single-Mode G65

1x16 PLC Fiber Splitter in ABS Enclosure with SC/APC Connect

Specifications	Details
Loss Uniformity (dB) Max.	0.6 ~ 2.2 (based on split ratio)
Directivity (dB) Min	55
Return Loss (dB) Min	55
Wavelength Dependent Loss (dB) Max	1.0
Operating Temperature (°C)	-40 ~ +85
Storage Temperature (°C)	-40 ~ +85
Optical Input Power Max	300mW
Fiber Length	1.0m or as your requirement
Splitter Type	Insert Type / Box Type / Mini PLC Splitter
Connector Type	SC UPC, SC APC
Polishing Type	UPC, APC
Fiber Type	Single-mode, Multi-mode
Note: All above specifications do not include connector loss and adaptor loss.

PLC Splitter Type	Box Type (mm)	Mini Type (mm)	Cassette Type (mm)
1 x 2	100 x 80 x 10	60 x 7 x 4	130 x 100 x 25
1 x 4
1 x 8
1 x 16	120 x 80 x 18	60 x 12 x 4	130 x 100 x 50
1 x 32	120 x 80 x 18	80 x 20 x 6	130 x 100 x 102
1 x 64	140 x 114 x 18	100 x 40 x 6	130 x 100 x 200
2 x 2	100 x 80 x 10	60 x 7 x 4	130 x 100 x 25
2 x 4
2 x 8
2 x 16	120 x 80 x 18	60 x 12 x 4	130 x 100 x 50
2 x 32	120 x 80 x 18	80 x 20 x 6	130 x 100 x 102
2 x 64	140 x 114 x 18	100 x 40 x 6	130 x 100 x 200
