1x16 PLC Fiber Splitter in ABS Enclosure with SC/APC Connectors – Singlemode G652D/G657A

1x16 PLC fiber splitter in ABS enclosure with SC/APC connectors and 2.0mm pigtail. Supports single-mode G652D/G657A fiber, ideal for FTTH, CATV, and PON systems....

Inquiry

Product Attributes

Connector Type:LC/ST/SC/FC, APC/UPC
Fiber Mode:Singlemode
Fiber Grade:G.657A1
Configuration Type:1x16

Product Technical Parameters

Product Description

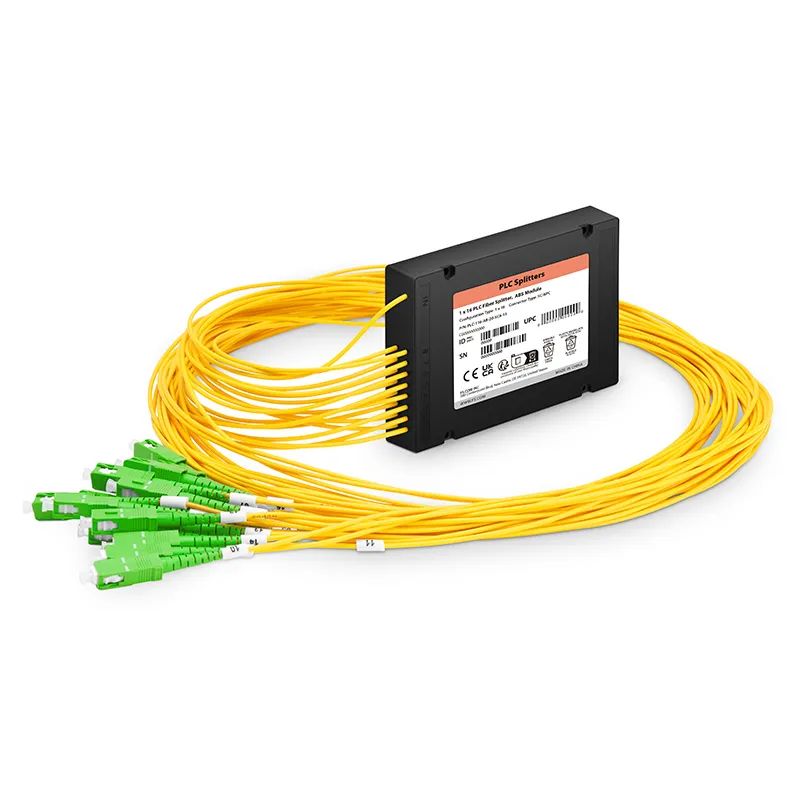

This 1x16 PLC fiber optic splitter features a compact and durable ABS enclosure with SC/APC connectors and 2.0mm pigtails. Designed for reliable optical signal distribution in fiber access networks, it supports **single-mode G652D and G657A** fibers, making it ideal for FTTH, CATV, and PON deployments.

Main Features

• 1x16 configuration for high-efficiency signal splitting.

• ABS box enclosure ensures compactness, strength, and easy installation.

• SC/APC connectors with 2.0mm pigtail for fast, reliable connectivity.（Connectors can be customized）

• Supports G652D and G657A singlemode fibers.

• Low insertion loss, high uniformity, and excellent reliability.

Product Specifications

Structure

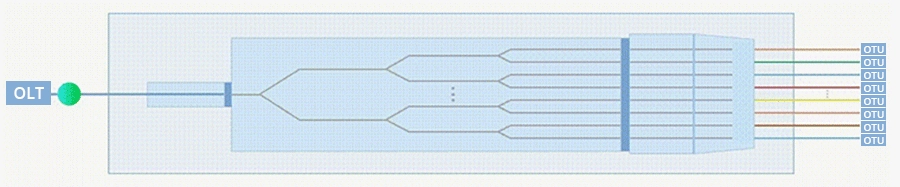

• 1x16 PLC Splitter

Fiber Type

• Singlemode G652D / G657A

Connector Type （Connectors can be customized ）

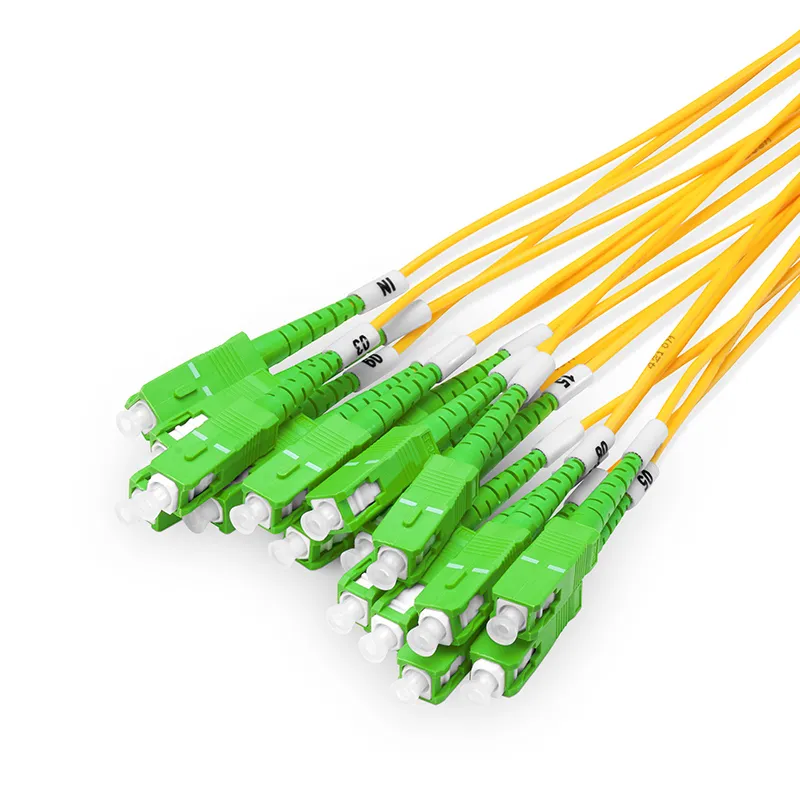

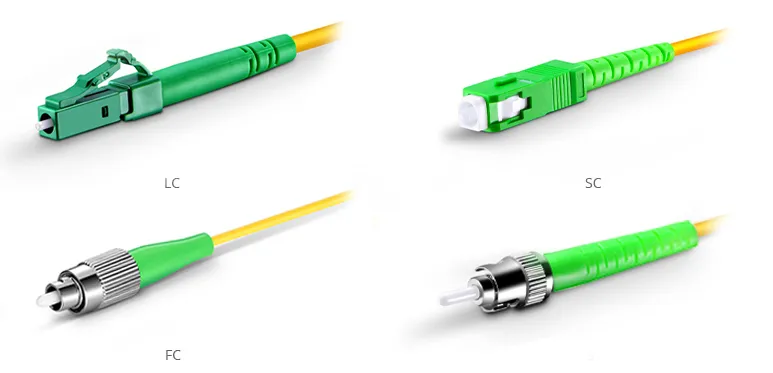

• SC/APC with 2.0mm pigtail （LC/SC/FC/ST, UPC/APC can be customized）

1x16 PLC Fiber Splitter in ABS Enclosure with SC/APC Connectors – Singlemode G652D/G657A第1张

Enclosure Type

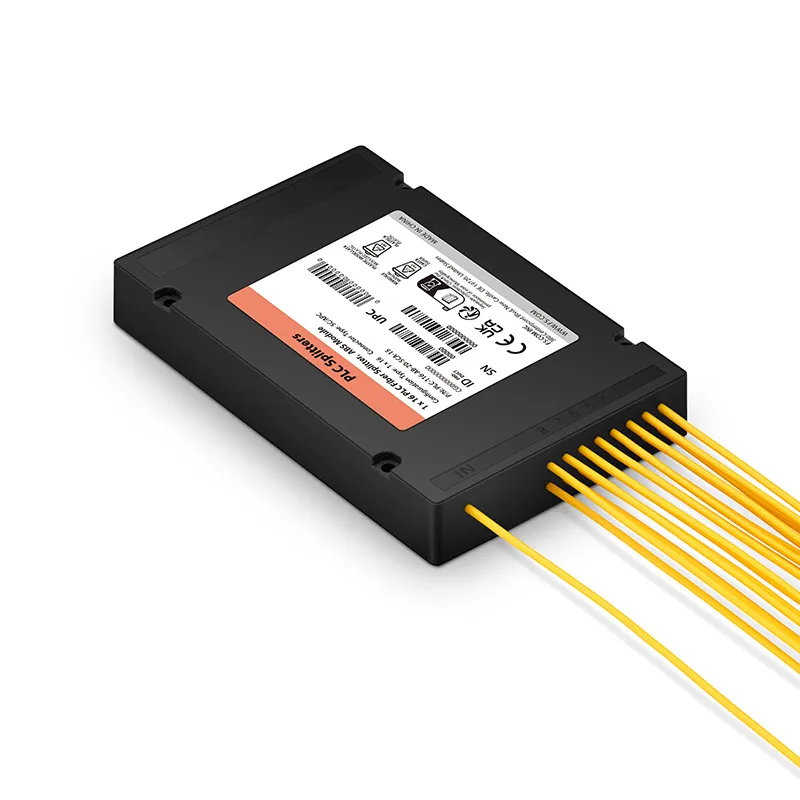

• ABS box, suitable for indoor or enclosure-mounted use

Applications

• FTTH (Fiber to the Home) networks

• CATV and broadband optical networks

• PON (Passive Optical Network) systems

• Centralized optical signal distribution

1x16 PLC Fiber Splitter in ABS Enclosure with SC/APC Connectors – Singlemode G652D/G657A第2张

1x16 PLC Fiber Splitter in ABS Enclosure with SC/APC Connectors – Singlemode G652D/G657A第5张

Case

1x16 PLC Fiber Splitter in ABS Enclosure, Singlemode 2.0mm SC/APC Pigtail Module，optical wire splitter(pic2)

Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support

Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey

Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia

Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber

OVERVIEW Download

Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop

首4.jpg 首5.jpg 首3.jpg 首2.jpg 首1.jpg

Keywords: 1x16 PLC Splitter, ABS Box, SC/APC, Singlemode, G652D, G657A

Plug‑in Cassette PLC Fiber Splitter – Singlemode G652D/G657A

No more

Specifications	Details	Specifications	Details
Package Style	ABS Module	Configuration Type	1x16
Fiber Grade	G.657A1	Fiber Mode	Singlemode
Connector Type	SC/APC	Split Ratio	Symmetrical
Insertion Loss	≤ 13.8dB	Return Loss	≥ 55dB
Loss Uniformity	≤ 1.2dB	Directivity	≥ 55dB
Polarization Dependent Loss	≤ 0.3dB	Temperature Dependent Loss	≤ 0.5dB
Wavelength Dependent Loss	≤ 0.5dB	Operating Bandwidth	1260~1650nm
Dimensions (HxWxD)	0.71"x4.72"x3.15" (18x120x80mm)	Temperature	Operating -40 to 85°C, Storage -40 to 85°C
