How to connect single-mode optical cables and multimode optical cables?

Multimode fiber and single-mode fiber can be connected, but the signal loss is very large, so people generally do not connect them directly when doing projects.

1. How to connect single-mode and multimode optical cables?

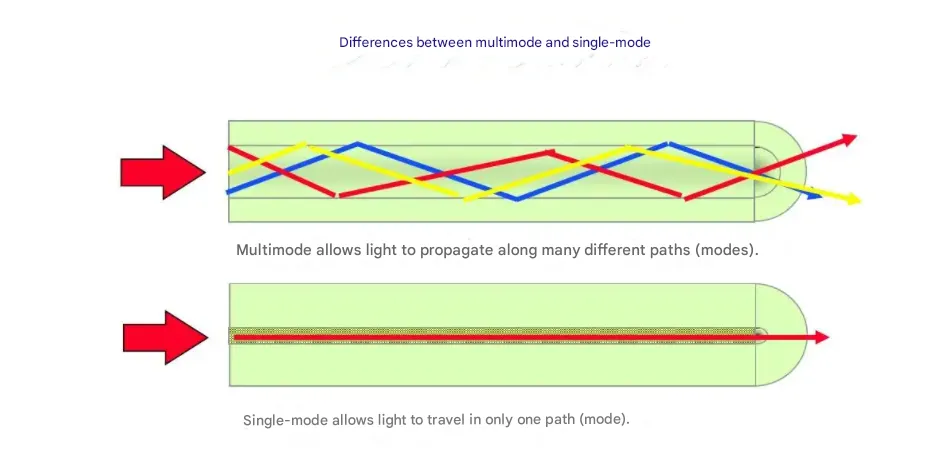

Why can't single-mode and multimode optical cables be directly connected?

Multimode fiber and single-mode fiber can be connected, but the signal loss is very large, so they are generally not connected. If an individual wants to connect to a telecommunications fiber optic cable, it is recommended to lay a new single-mode fiber.

Ideally, they should be consistent; otherwise, it will be difficult to reduce losses. In practice, if you connect them, you can directly test with an OTDR , and the losses should be relatively large. It is recommended to replace them with consistent modules.

II. How to safely connect single-mode and multimode optical cables?

Single-mode and multimode optical fibers cannot be directly fused together due to their different core diameters. A single-mode/multimode fiber converter is required for connection. Single-mode and multimode fibers can also be converted to each other, enabling multi-machine repeater networking functions, primarily solving the problem of converting between multimode and single-mode fibers in fiber optic cabling.
