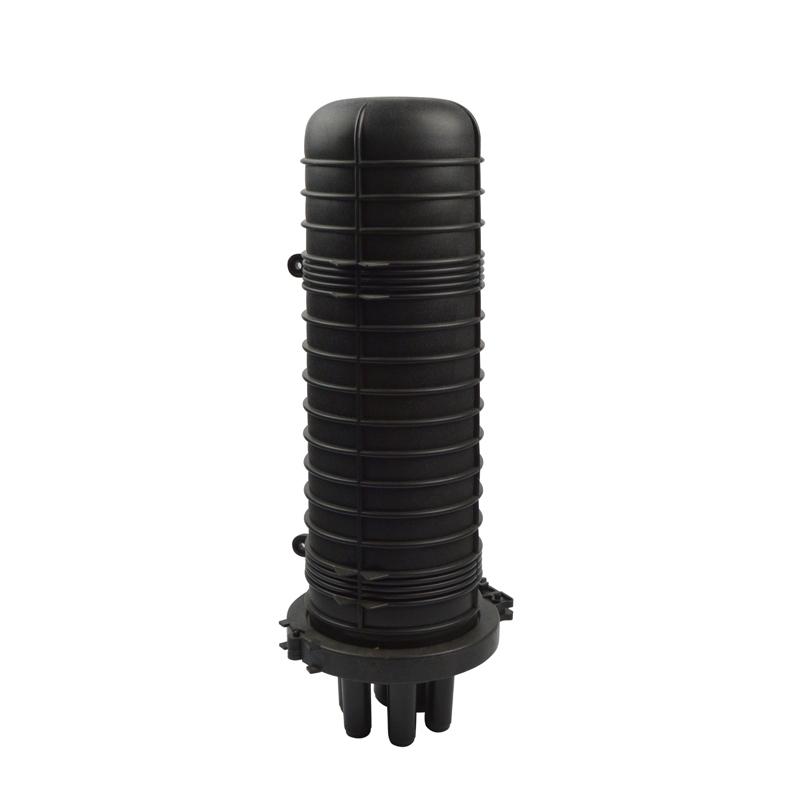

Dome Type Fiber Optic Splice Closure for Rugged Outdoor Splicing Applications

Overview

The dome-type fiber optic splice closure is a high-performance outdoor enclosure designed for secure and durable fiber splicing. Crafted from UV-resistant polypropylene with rugged mechanical sealing, it achieves an IP68 rating for full protection against dust and water. Capable of withstanding impacts, vibrations, chemical exposure, and harsh temperatures from –35 °C to +70 °C, it is appropriate for aerial, buried, wall, pole-mounted, or manhole applications.

Main Features

• Durable polypropylene dome shell provides unmatched environmental resistance and longevity.

• Modular splice tray design supports up to four trays, accommodating up to 96 fiber splices.

• Mechanical (gel-free) sealing enables easy re-entry and repeated use without compromising protection.

• Multiple cable ports—including six Ø18 mm and two Ø12 mm spares—offer flexible fiber entry and routing.

• Compact and robust structure designed for long-lasting reliability even in challenging outdoor conditions.

Specifications

Splice Capacity & Trays

• Supports configurations of 12F, 24F, 48F, or 96F depending on the number and type of trays used.

Dimensions & Cable Ports

• Dome dimensions: approx. Ø489 mm × 168 mm height. Includes six Ø18 mm ports and two Ø12 mm spare ports.

Durability & Environment

• Designed for IP68 environments; resists vibration, impact, and chemical stress; operational range from –35 °C to +70 °C.

Mounting & Deployment

• Suitable for a range of deployment scenarios: wall, pole, strand/aerial, buried, and manhole installations.

Applications

Ideal for FTTH, FTTx trunks, and backbone networks, this dome closure ensures secure splice protection even in difficult terrains. It’s well-suited for emergency outdoor repairs, high-density node setups, and all outdoor network sectors that demand reliable and compact splice management.
