16 Ports Outdoor Termination Box – 16 Core Fiber Splitter Enclosure for FTTH

This 16‑port outdoor fiber optic terminal box is engineered for durable and secure FTTH PON deployments. It integrates fiber splicing, splitting, storage, and drop cable distribution in a compact IP65-rated enclosure. Designed for both wall and pole mounting, it combines high-capacity performance with environmental robustness.

Main Features

• Supports up to 16 splitter/output ports with pre-installed 1×16 PLC splitter capability.

• Made from UV-resistant, high-strength engineering plastics (ABS or ABS+PC), ensuring sturdiness and weather resistance.

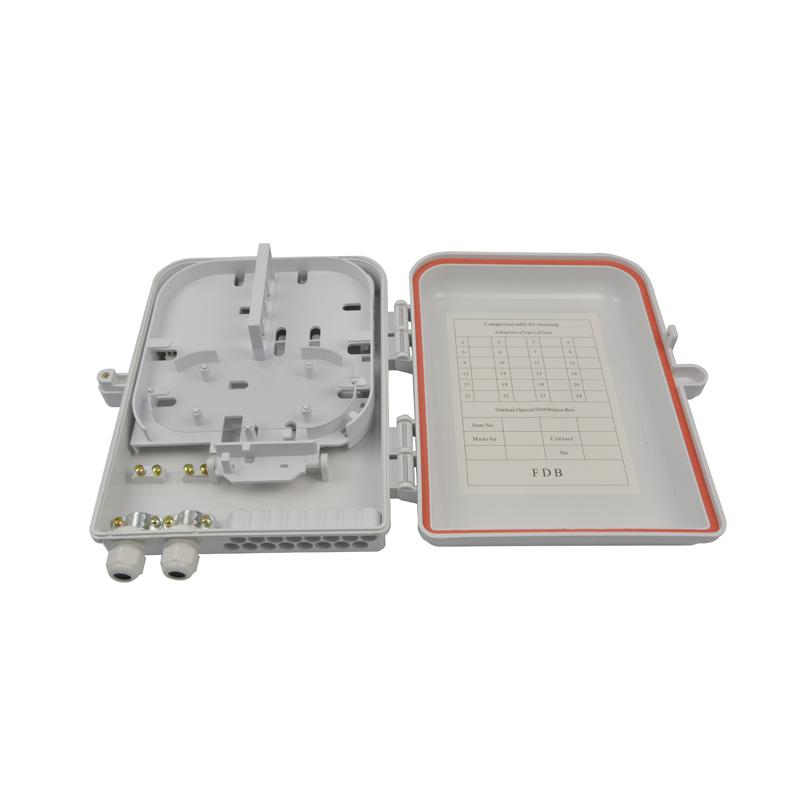

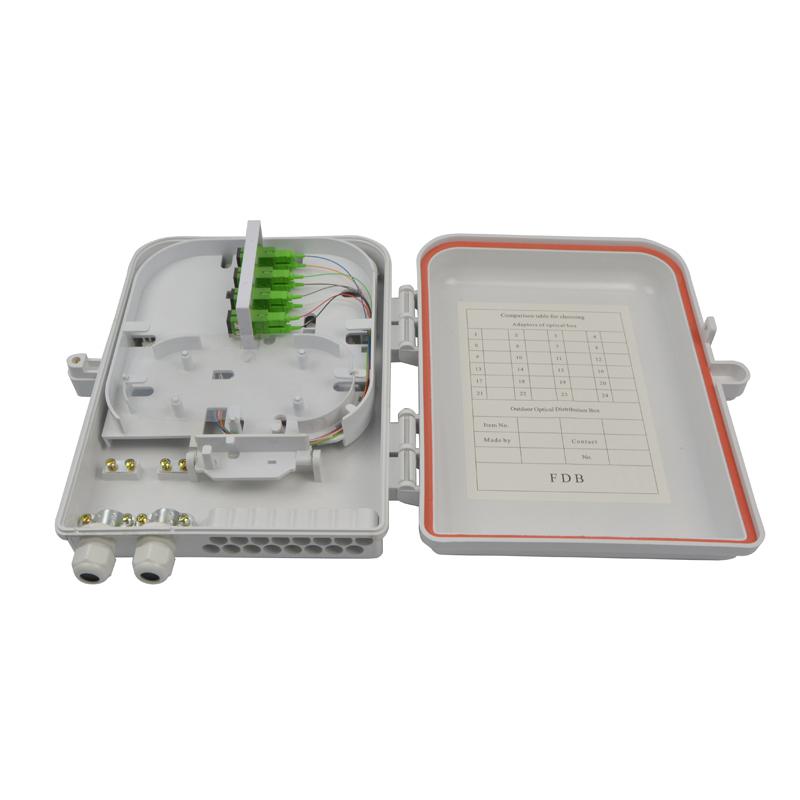

• Dual-layer layout offers separate trays for splicing and splitter storage; includes flip-up splice tray for ease of maintenance.

• Wall-mount or pole-mount capabilities with lockable cover for enhanced security.

• High ingress protection up to IP65, suitable for outdoor installations.

• Large fiber routing space with cable entry ports (2 in, 16 out) and strong cable management features including sealing, looping paths, and internal fixing points.

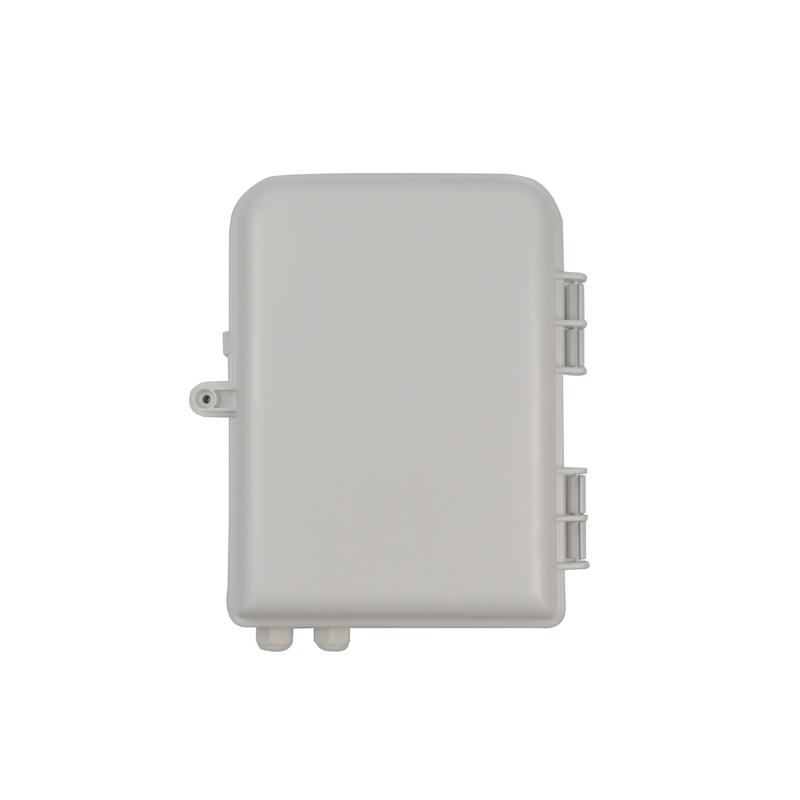

• Compact yet robust chassis (approx. 300 × 240 × 98 mm) with high mechanical strength and weather-proof design.

Specifications

Capacity & Ports

• 2 cable entry ports (feeder) and 16 drop cable output ports.

• Supports up to 24 fiber splices plus 1×16 mini PLC splitter.

Construction & Materials

• Housing: ABS or ABS+PC plastic with UV and water resistance; weatherproof design with IP65 enclosure.

• Dimensions: Approx. 300 × 240 × 98 mm; weight: ~1.55 kg.

Performance Metrics

• Minimum fiber bend radius: ≥ 40 mm.

• Splice tray additional loss: ≤ 0.01 dB.

• Operating temperature range: −40 °C to +60 °C.

• Compressive strength: > 500 N.

Installation & Security

• Wall or pole mountable with lockable cover for secure access protection.

• Flip-up splice tray and ample cable storage facilitate maintenance and fiber routing.

Applications

• FTTH feeder-to-drop termination in residential and business networks.

• Outdoor fiber access points in villas, campuses, and street cabinets.

• Integration point for PLC splitter deployment in passive optical network (PON) setups.

• Ideal for high-capacity, rugged, outdoor fiber distribution in FTTx access infrastructure.
