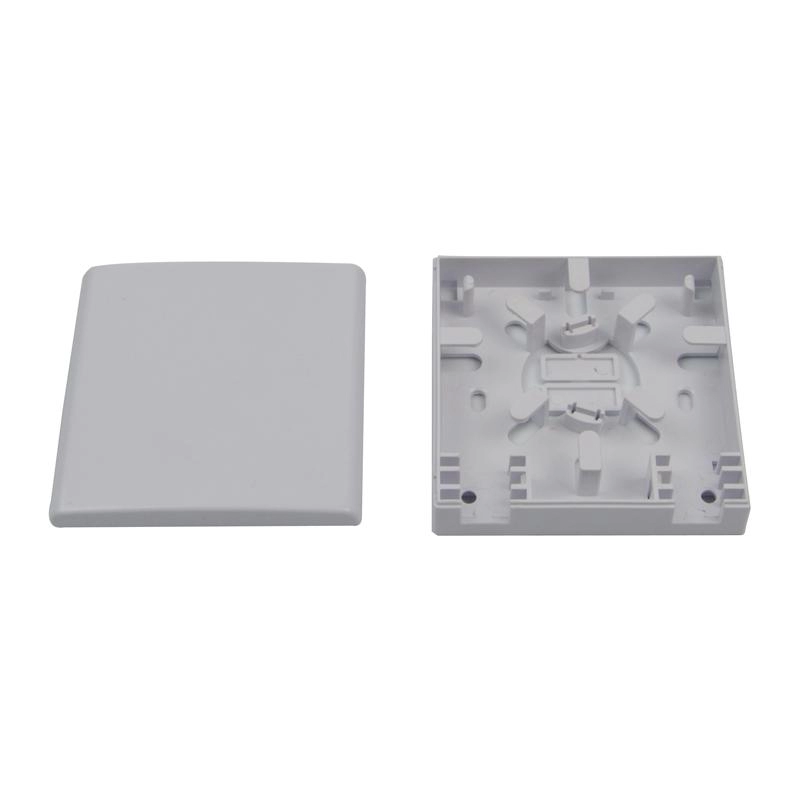

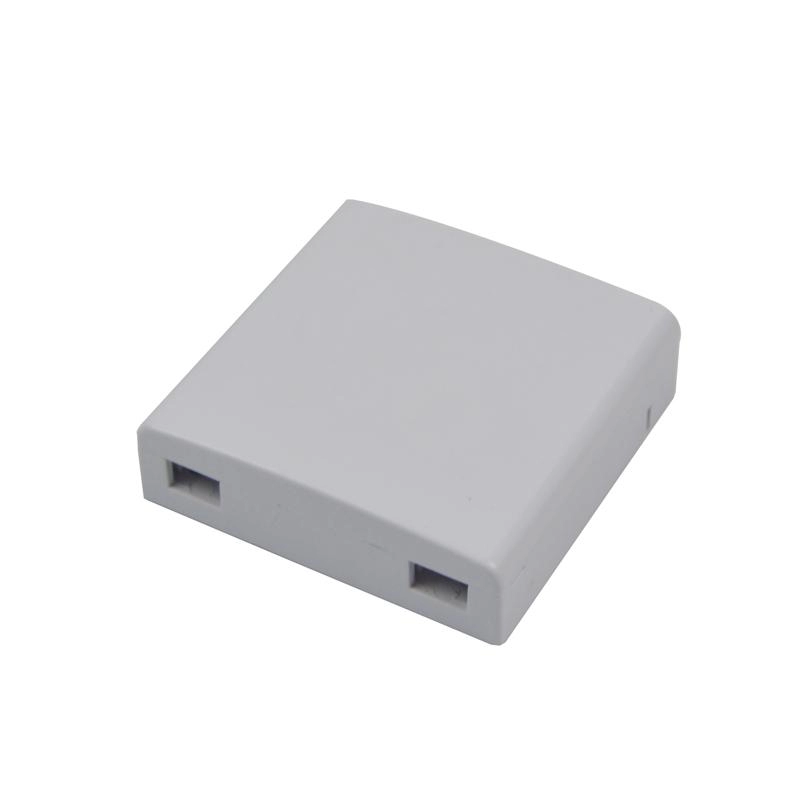

86 Desktop Fiber Box

Product Description

The Type 86 desktop fiber optic end point box is an end point device specially designed for optical network cabling, suitable for fiber optic access and distribution in the home, office, data center, and other scenarios. The "86" in its name stands for the 86mm × 86mm size that meets the Chinese standard, which is compatible with standard wall camouflage or desktop installation, providing flexible fiber optic management solutions.

Core Features

Standardized size and compatibility

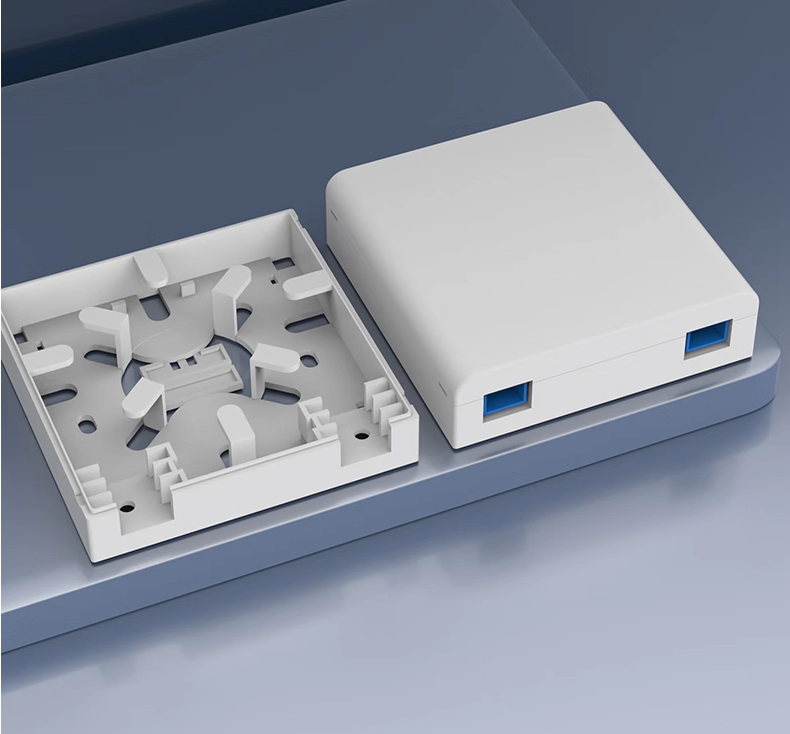

86mm×86mm specifications, suitable for domestic standard embedded boxes or surface brackets, support desktop or wall-mounted installation.

Compatible with a variety of fiber optic connector types (e.g. SC, LC, FC, ST), suitable for single-mode/multimode fiber.

Modular port design

Flexible number of ports: Optional 4-port, 8-port, 12-port and other configurations to meet the needs of different scale networks.

Adapter panel support: Supports quick replacement of adapters for easy upgrade or maintenance.

High-quality materials and structures

Material: Usually made of high-strength ABS plastic (light and durable) or metal (shielding and anti-interference), the surface is flame-retardant.

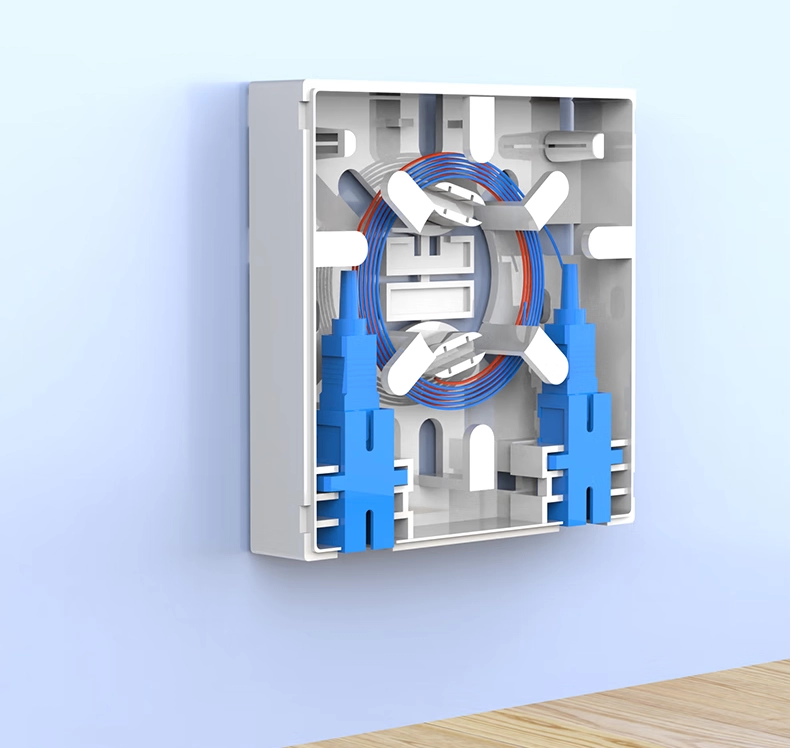

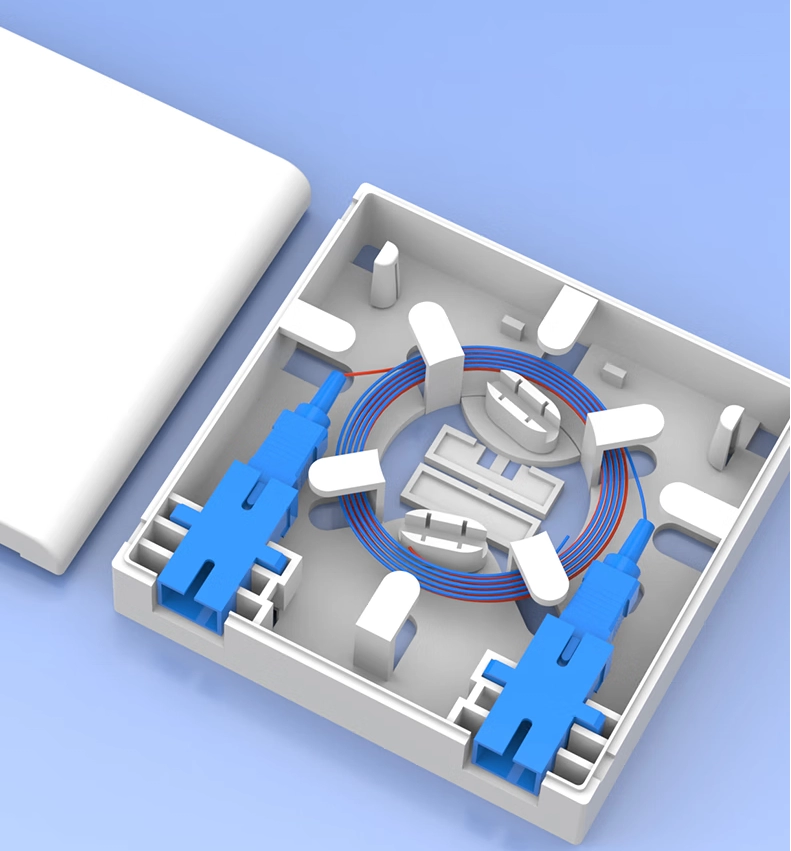

Internal structure: Built-in fiber winding ring/fixing clip to ensure that the fiber bending radius meets the standard (≥ 30mm) and avoids signal attenuation.

Protection and safety

Dustproof and waterproof grade: IP20 (indoor general purpose) or IP65 (dustproof and waterproof, suitable for industrial environments).

Electromagnetic shielding: Metal models can shield external interference to ensure signal stability.

Convenient management function

Label area: Each port is equipped with an identification area for easy management of fiber optic links.

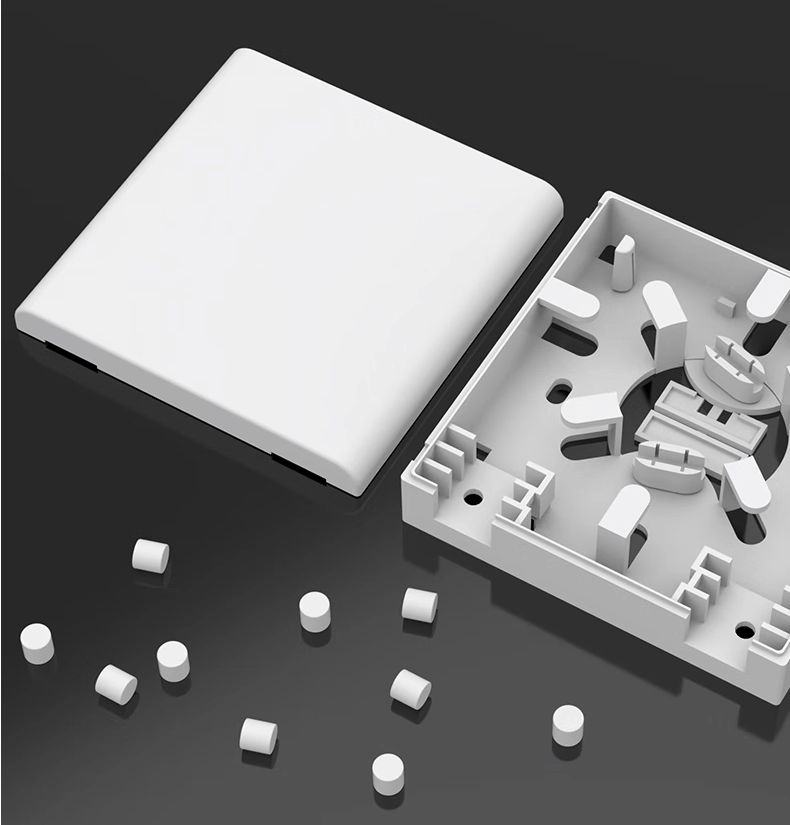

Removable cover: Quickly start the design and support tool-free maintenance.

Extensibility and compatibility

Support fiber fusion/cold connection: Adapt to different construction techniques, compatible with pre-terminated fiber optic jumpers.

High bandwidth support: Support 10G/40G/100G networks to meet future upgrade requirements.

Certification and Standards

Passed CE, RoHS and other certifications, in line with international safety and environmental standards.

Application Scenarios

Home/SOHO Network: As a FTTH (fiber to the home) entry point, connect the light cat to indoor equipment.

Enterprise cabling: Optical fiber distribution frame (ODF) for offices and computer rooms is supplemented to achieve endpoint access.

Data Center: As a temporary or small-scale fiber optic jumper management unit.

Q1: What is an 86 Desktop Fiber Box and how is it used?

An 86 Desktop Fiber Box, also known as a fiber termination box, is a compact and efficient solution for organizing and managing fiber optic connections. It's designed for use in desktop applications where space is limited. This type of fiber box is typically used to terminate, splice, and protect fiber optic cables in environments such as offices, data centers, and telecommunication rooms. It allows for easy and secure connections, making it an essential component in fiber optic networks.

Q2: What are the key features of an 86 Desktop Fiber Box?

The key features of an 86 Desktop Fiber Box include its compact size, which makes it ideal for desktop installations. It often comes with a high-quality enclosure that protects fiber optic cables from damage. Additionally, it includes ports for fiber optic connectors, splicing trays, and cable management systems. Some models may also offer features like fiber optic cable management loops and an easy-to-access design for maintenance and troubleshooting.

Q3: How does an 86 Desktop Fiber Box improve network performance?

An 86 Desktop Fiber Box contributes to improved network performance by ensuring organized and secure fiber optic connections. It helps prevent fiber optic cables from getting tangled or damaged, which can lead to signal loss or connection issues. By using a termination box, the installation is more streamlined, reducing the risk of errors during setup and making the overall network more reliable. Proper cable management also enhances the system's longevity, ensuring consistent performance over time.

Q4: Can an 86 Desktop Fiber Box be used for both indoor and outdoor installations?

Typically, an 86 Desktop Fiber Box is designed for indoor use, particularly in office environments or data centers. However, some models may be suitable for light outdoor applications, depending on their build and weatherproof features. For outdoor installations, it's important to ensure that the fiber box is specifically rated for exposure to environmental conditions such as rain, dust, or temperature variations. Always check the product specifications to ensure compatibility with outdoor usage.

Q5: How do I install and maintain an 86 Desktop Fiber Box?

Installation of an 86 Desktop Fiber Box is relatively simple. First, secure the box to a stable surface, such as a desktop or wall, using screws or mounting brackets. Then, carefully route and connect the fiber optic cables to the appropriate ports, following the manufacturer’s guidelines for cable management and splicing. To maintain the box, periodically check for any loose connections, damaged cables, or dust accumulation. Keep the box clean and organized to ensure efficient network performance.
