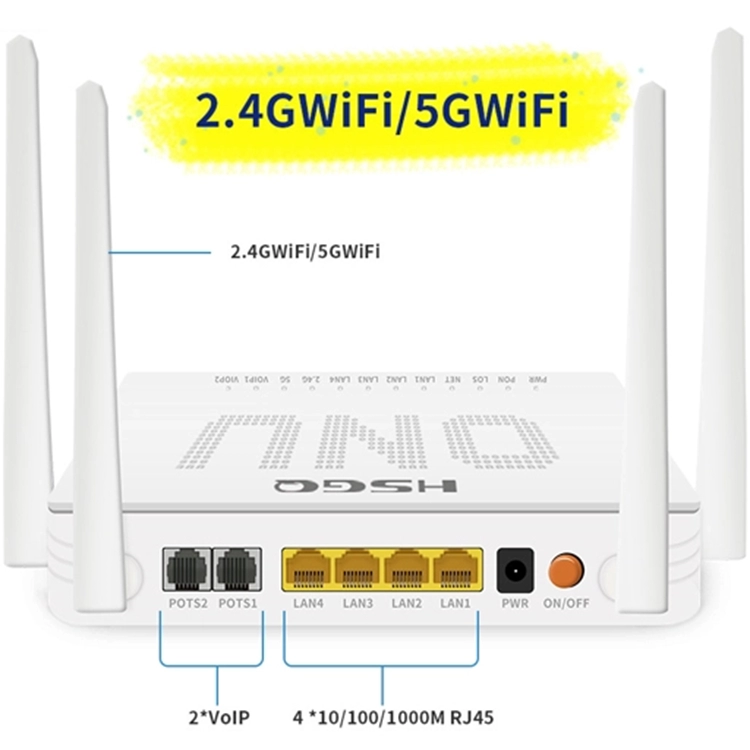

| User interface | 4 10/100/1000M RJ45 port 2*POTS 1*USB 2.4GWiFi/5GWiFi |

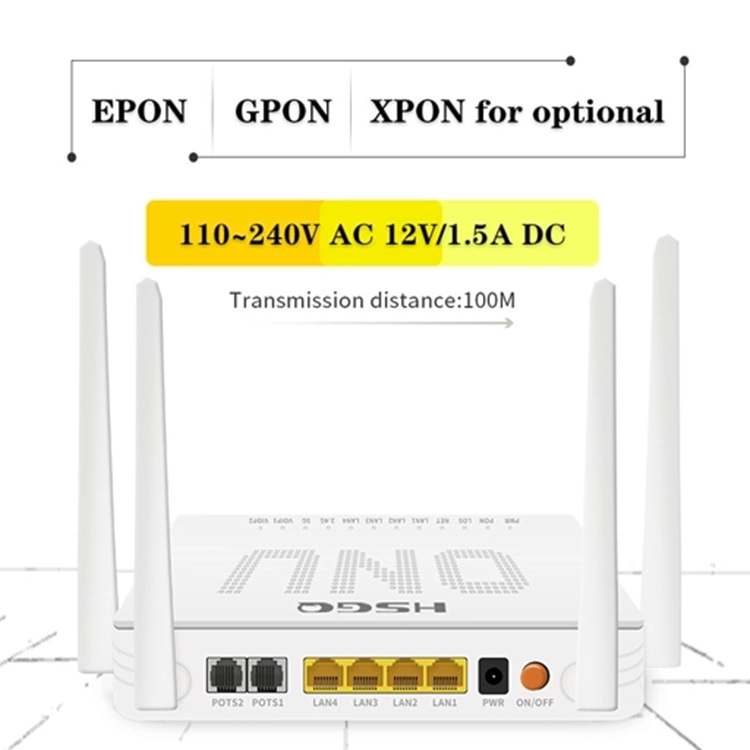

| PON | EPON&GPON mode adaptive lnterface Type:SC-UPC/SC-APC Security: ONU authentication mechanism Network coverage radius: 20KM GPON: upstream 1.25Gbps /downstream 2.5Gbps Optical receive sensitivity:-7dBm~-28dBm Continuous light power: 0.5dBm~+5dBm EPON: upstream 1.25Gbps /downstream 1.25Gbps Optical receive sensitivity:-7dBm~-27dBm Continuous light power: 0dBm~4dBm |
| Ethernet | 4*10/100/ 1000Mauto-negotiation Full/half duplex mode RJ45 connector Car MDI/MDI-X 100m distance |
| Size | 160mm(L)×112mm(W)×32mm(H) |
| Environment | Operating temperature:0°C～60℃ Operating humidity:10%～85% non-condensing Storage temperature:-40℃~80℃ Storage humidity:5%~95% non-condensing |

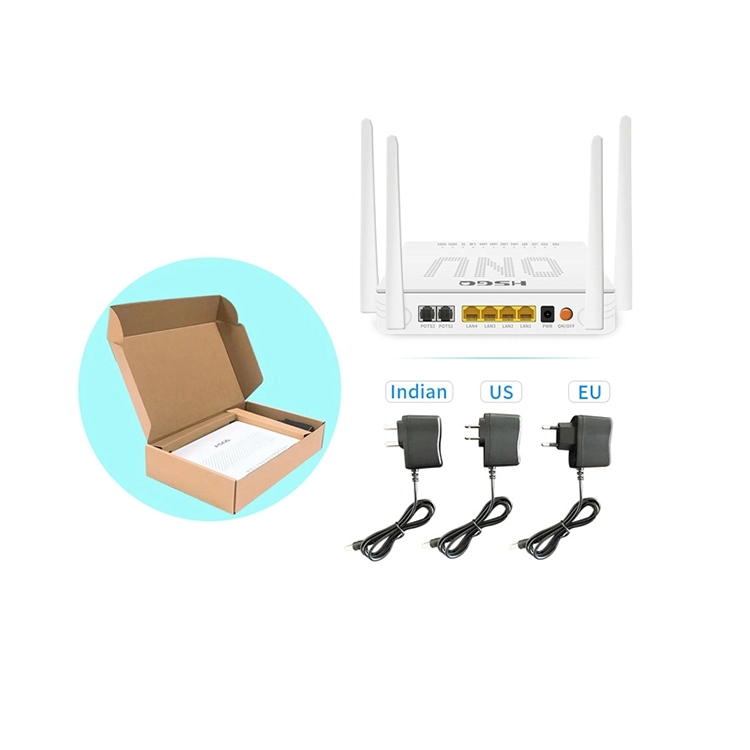

| Power supply | 12V1.5A DC power interface size:2.1mm/5.5mm |
| Power Consumption | |
| POTS Port | 2*RJ11 Max 1km distance Balanced Ring, 55V RMS |
| Man | WEB/TELNET/TR069/ONUI/OAM |
Product Interfaces and Indicators Definitions
POWER
| Power status | On: The ONU is power on Off: The ONU is Power off |
PON
| ONU Register | On: Success to register to OLT Blinking: In process of registering to OLT Off: Fail to register to OLT |
LOS
| Optical Signals | On: Optical link lower than receiver sensitivity Off: Optical in normal |
LAN
| LAN Port status | On: Ethernet connection is normal Blinking: Data is being transmitted Off: Ethernet connection is not set up |
2.4G
| WIFI | On: Wi - Fi function Opens Blinking: Data is being transmitted Off: wi - Fi function closes |
5G
| WIFI | On: Wi - Fi function Opens Blinking: Data is being transmitted Off: wi - Fi function closes |
NET
| lnternet status | On: ONU can access internet Off: ONU can not access internet |
VOIP1
| VOIP1 Status | On: Voice account Registered Off: Voice account not Registered |
VOIP2
| VOIP2 Status | On: Voice account Registered Off: Voice account not Registered |
