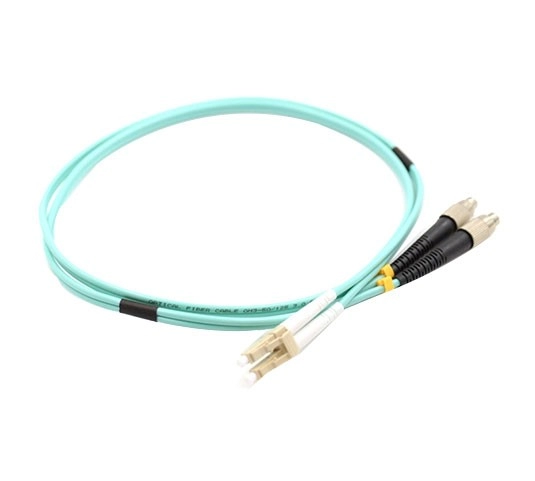

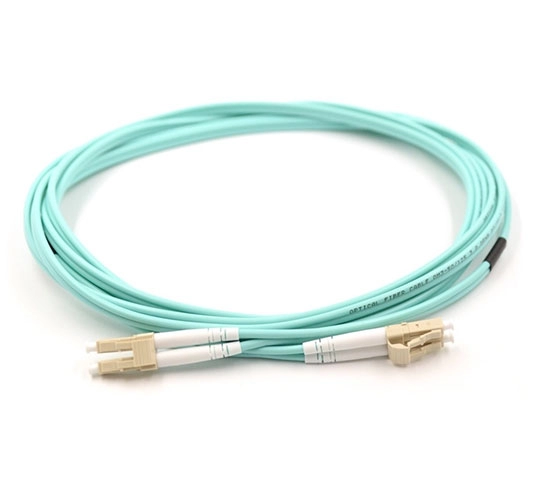

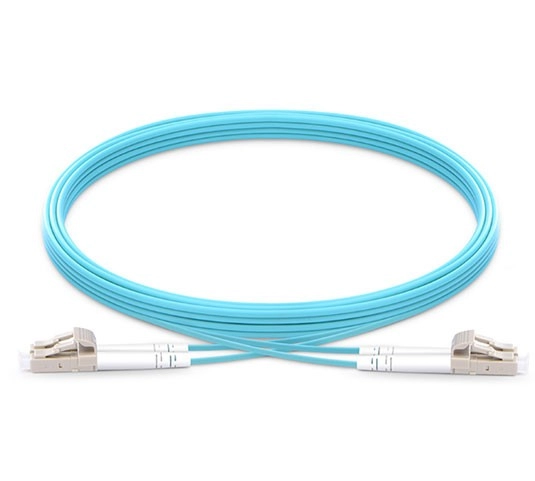

0M3 OM3 Simplex/Duplex Fiber Jumper / fiber patch cord

0M3 OM3 Simplex/Duplex Fiber Jumper / fiber patch cord application:1. Widely used in FTTC access networks;2. Telecommunications/CATV systems;3. Data processing network.0M3 OM3 Simplex/Duplex Fiber Jumper / fiber patch cord features:1. Low insertion loss;2. Good reproducibility;3. High return loss;...

Inquiry

Product Attributes

ConnectorType:LC/SC/ST/FCAPC/UPC
PortType:Simplex,duplex
OuterJacket:LSZH/PVC
FiberType:MultimodeOM3(50/125)
ProductModel:0M3

Product Technical Parameters

Product Description

0M3 OM3 Simplex/Duplex Fiber Jumper / fiber patch cord application:

1. Widely used in FTTC access networks;

2. Telecommunications/CATV systems;

3. Data processing network.

0M3 OM3 Simplex/Duplex Fiber Jumper / fiber patch cord features:

1. Low insertion loss;

2. Good reproducibility;

3. High return loss;

4. Good interpolation performance;

5. Good temperature stability.

Specifications

Item	Om3 patch cord(simplex/duplex)
Fiber type	Multimode OM3 (50/125)
Jacket material	LSZH/PVC
Connector type	SC/FC/LC/ST APC/UPC
Ferrule materials	ceramic
Cable dimension	2.0mm,3.0mm
Cable color	aqua
Testing wavelengths	850±30/1300±30nm
Insertion Loss(dB)	≤ 0.3dB
Return Loss(dB)	≥35dB
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	Poly bag
