GYXTC-8Y Fiber Optical Cable, G652D/G657, Self-supporting ,Fig 8 Aerial Uni-tube

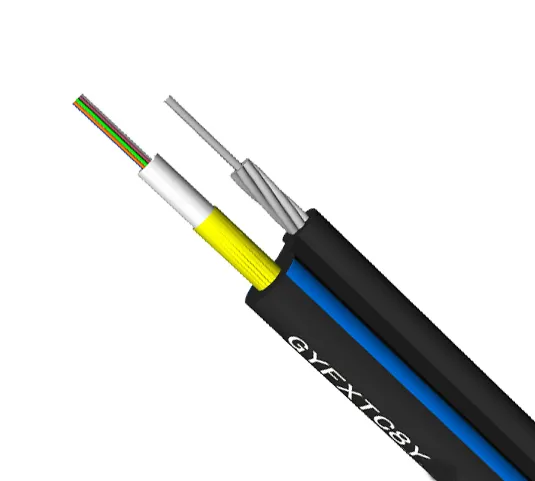

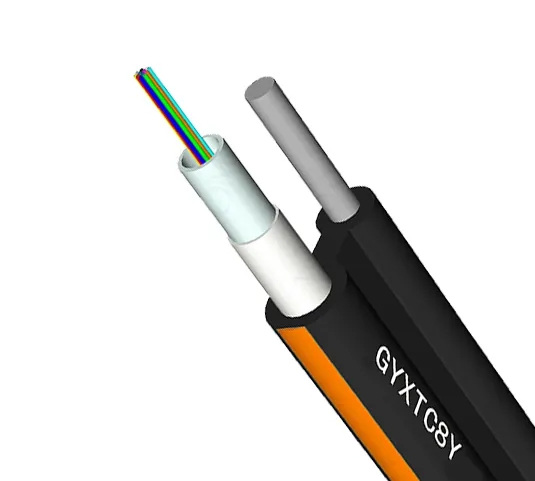

Product description of GYXTC-8Y Self-supporting Fig 8 Aerial Uni-tube Drop Fiber Cable

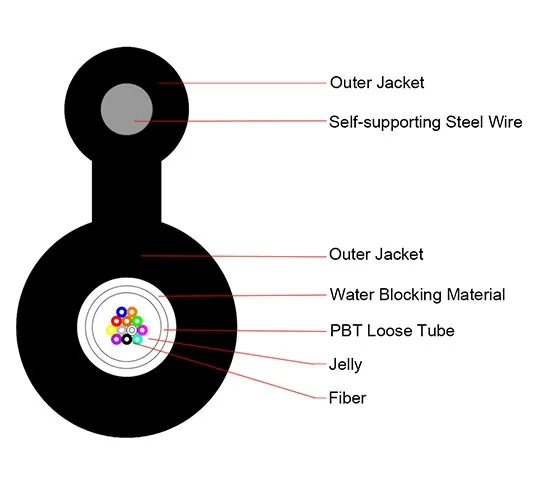

GYXTC-8Y type optical cable, the center of the optical cable is made of high modulus plastic loose tube, the optical cable core is composed of 2-24 loose tubes, the support part of the optical cable is composed of multiple strands of stranded wire, and the support part is made of polyethylene (PE) sheath to form an 8-shaped structure. The loose tube has high strength and is resistant to hydrolysis. GYXTC8Y is an ideal self-supporting outdoor optical cable, suitable for overhead installation.

Product Features of GYXTC-8Y Self-supporting Fig 8 Aerial Uni-tube Drop Fiber Cable

1. Precise control of fiber length ensures that the cable has good tensile and temperature characteristics

2. Loose casing with high strength and resistance to hydrolysis

3. The tube is filled with special compounds, which play a key role in protecting the cable

4. 8-Shape steel wire self-supporting design

5. Medium density polyethylene sheath, low installation friction

GYXTC-8Y Self-supporting Fig 8 Aerial Uni-tube Drop Fiber Cable application:

1. FTTX home cable

2. Indoor and forced ventilation shaft wiring

3. Outdoor overhead installation

4. The maximum span is 50 meters and the maximum sag is 1%.

*data is too long, please view it in horizontal mode.

Optical Properties

Technical Parameters
