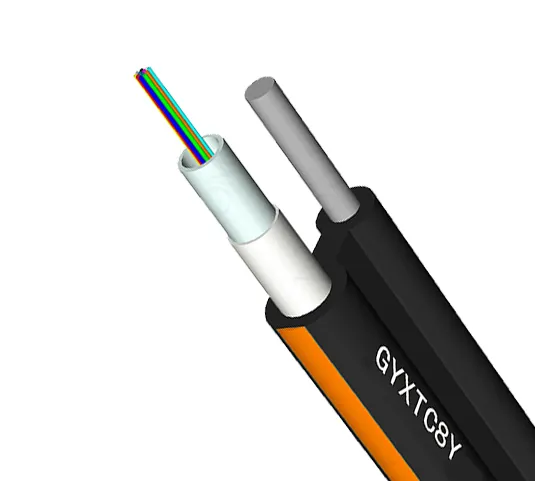

GYXTC-8Y Single-tube Aerial Fiber Optic Cable | Armored, Loose Tube, Waterproof，Self-Supporting Figure-8 | G652D/G657 | Singlemode

Packaging Requirements:

• 1：All cables shall be wound on treated wooden spools that are not returnable
• 2：Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
• 3：Each spool must include:
  • 1、 Protective plastic wrapping layer
  • 2、 Reinforcing wooden slats for stability
  • 3、 Minimum 1m of free cable end for testing purposes
  • 4、 Standard spool length: 3000mm (±2% tolerance allowed)

Cable Identification:

The outer jacket must display:

• 1、Unique sequential numbering every 1m (±1% variance permitted)
• 2、 Additional repeating markings at 1m intervals showing:
  1. 1、 Product code and fiber count
  2. 2、 Manufacturer identification
  3. 3、 Production date (month/year)
  4. 4、Total cable length

Standard Packaging Dimensions:

Technical Reference:

• 1、 Standard cable diameter: 10.0mm
• 2、Maximum span distance: 100m
• 3、Contact sales team for complete technical specifications

Spool Marking Standards:

Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:

1. 1、 Company name and trademark
2. 2、Contained cable length
3. 3、Cable specifications (type/fiber count)
4. 4、Winding orientation
5. 5、Weight measurements (gross/net)

Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.

Q: Can you provide samples?

 A: Yes, we can provide samples of a certain value.

 Q: When can the sample order be delivered?

 A: Usually within 7 days after confirmation.

 Q: What is the delivery time for bulk orders?

 A: Usually it is 15-20 days from the date of order placement, but it also depends on the quantity of the order. You need to confirm the specific delivery time with the sales manager.
