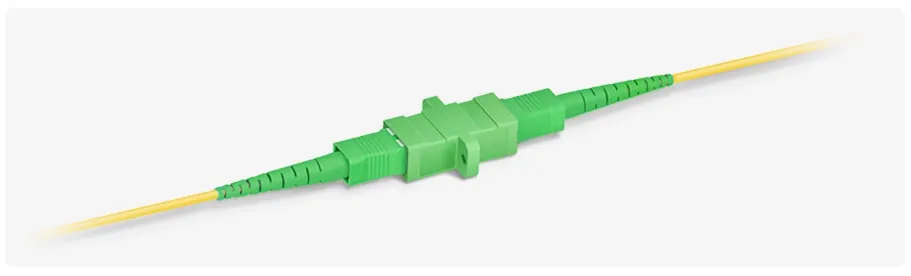

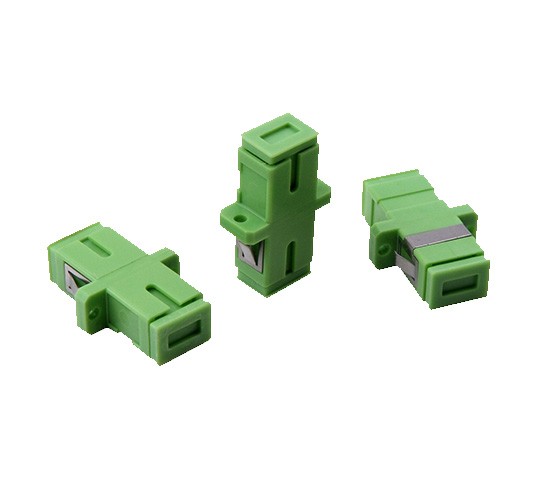

SC‑SC Duplex Flange Fiber Optic Adapter – Precision Zirconia Sleeve for Stable Connections

This SC‑SC duplex fiber optic adapter is a flange-mount coupler engineered for high-density and high-precision fiber networks. Featuring a zirconia ceramic alignment sleeve, it ensures low insertion loss and maximum connection integrity for both singlemode (G652D/G657A) and multimode fibers.

Main Features

• Duplex SC‑female to SC‑female flange configuration for secure panel mounting.

• Precision zirconia sleeve alignment provides low insertion loss and high return loss.

• Compatible with both singlemode (G652D, G657A) and multimode fiber systems.

• Rated for over 1,000 mating cycles with excellent mechanical durability.

• Available in full flange or reduced flange design to suit different panel layouts.

Product Specifications

Connector Interface

• SC‑female duplex adapter with flange mount

Fiber Compatibility

• Singlemode (G652D / G657A), also supports multimode fiber

Optical Performance

• Insertion loss typically ≤ 0.2–0.3 dB, return loss ≥ 50 dB

Mechanical Design

• Nickel‑plated or plastic housing, zirconia sleeve, snap‑in or screw mount flange

Applications

• SC patching in telecom ODFs and optical cabinets

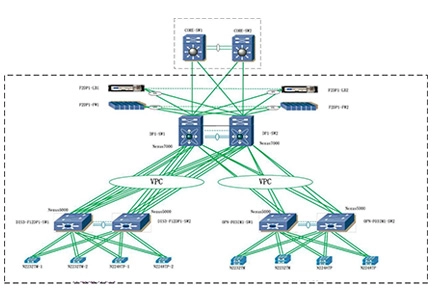

• High-density fiber distribution in data centers and CATV systems

• FTTH access panels and LAN/WAN networks

• Hybrid connector interface modules in fiber cross‑connect systems

application

•

  Data-processing-networks

•

  Local-area-networks

•

  Fiber-optic-communications
