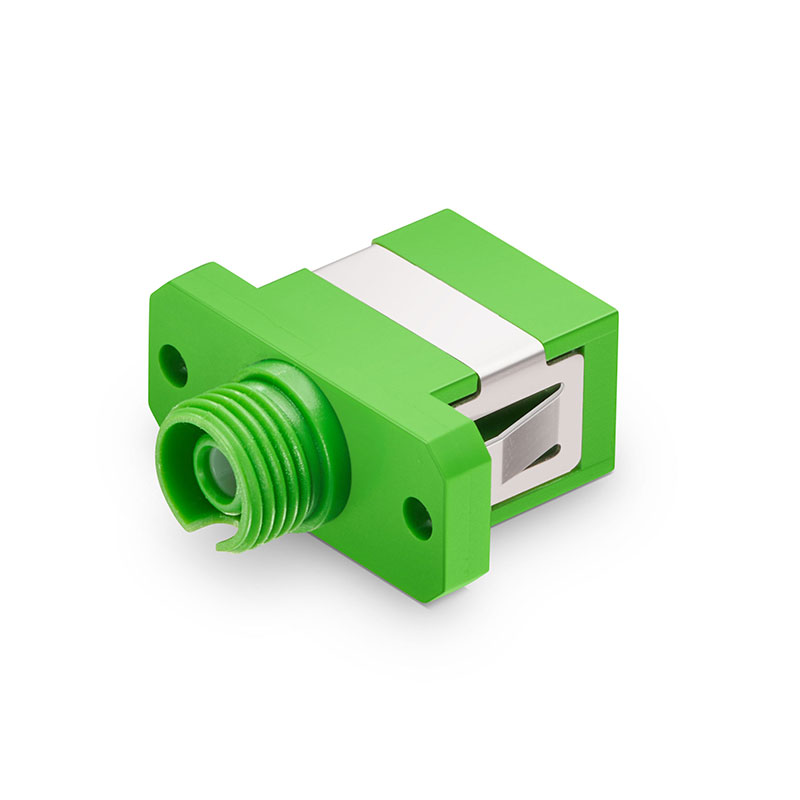

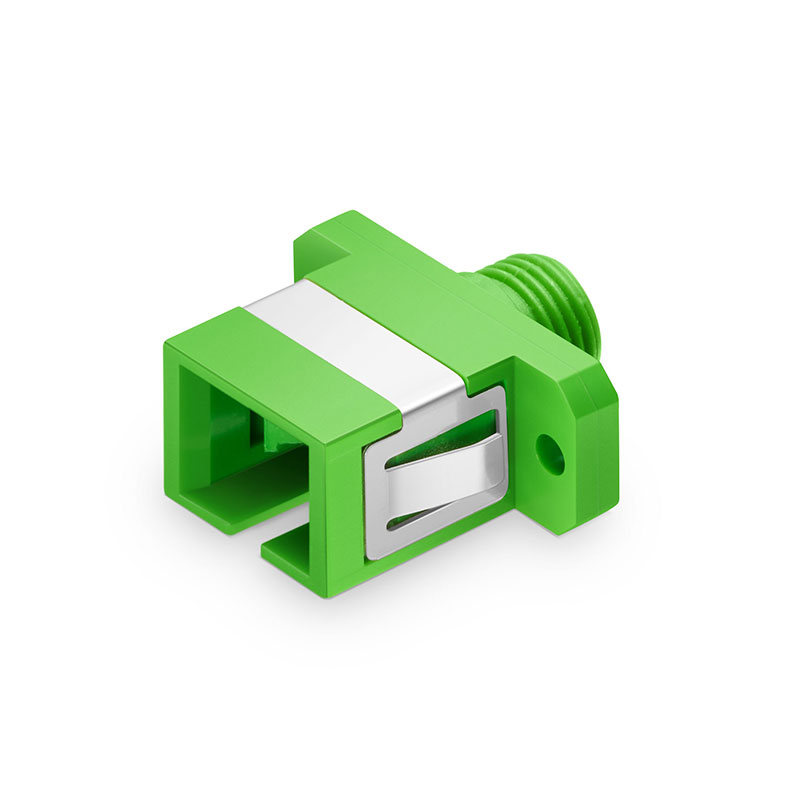

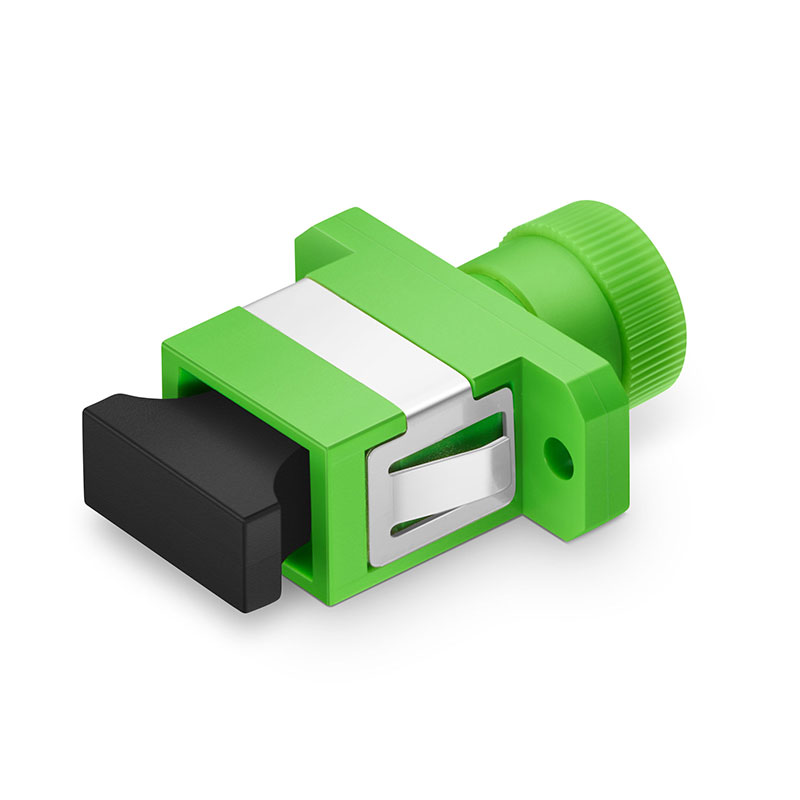

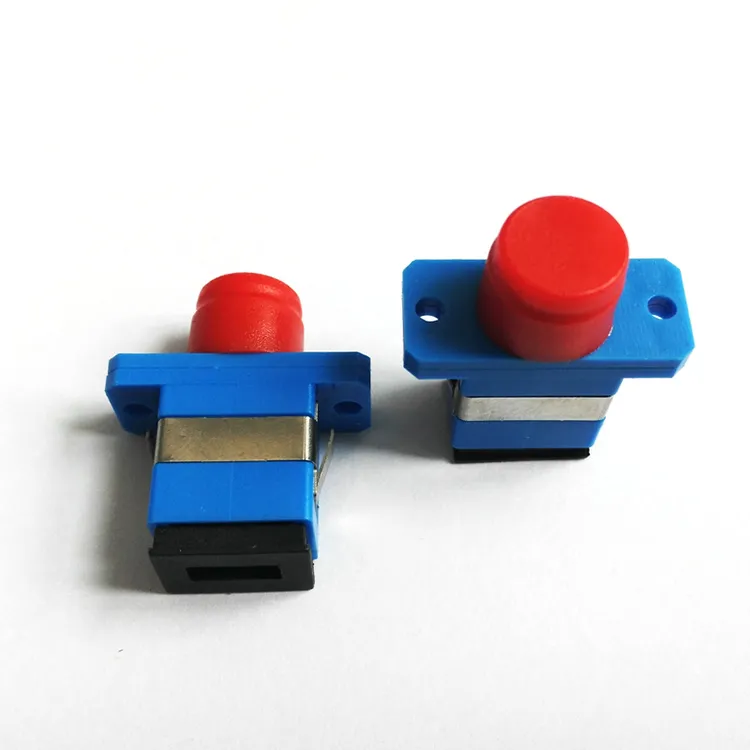

SC‑FC Flange Fiber Optic Adapter – Hybrid SC to FC, Single‑mode, Precision Zirconia Sleeve

This SC‑FC fiber optic adapter is a flange‑type coupler designed to connect SC and FC connectors securely. Built for single‑mode applications (G652D/G657A) with a precision zirconia ceramic alignment sleeve, it ensures ultra‑low insertion loss and high return loss. Available in simplex or duplex types for telecom, CATV, LAN, and FTTH systems.

Main Features

• Hybrid SC female to FC female flange configuration, supporting duplex and simplex types.

• Zirconia ceramic sleeve for precise fiber alignment and low insertion loss (< 0.2–0.3 dB).

• Compatible with single‑mode (G652D/G657A) and multimode fiber types.

• Durable nickel‑plated metal or plastic housing compliant with IEC 61754‑4 and RoHS.

• High durability—over 1,000 mating cycles with minimal variation.

Product Specifications

Connector Compatibility

• SC‑female to FC‑female hybrid adapter

Fiber Modes

• Single‑mode (G652D / G657A); optional multimode support

Performance

• Typical insertion loss ≤0.2 dB; return loss ≥50 dB for APC, ≥45 dB for UPC :contentReference[oaicite:4]{index=4}

Mechanical Design

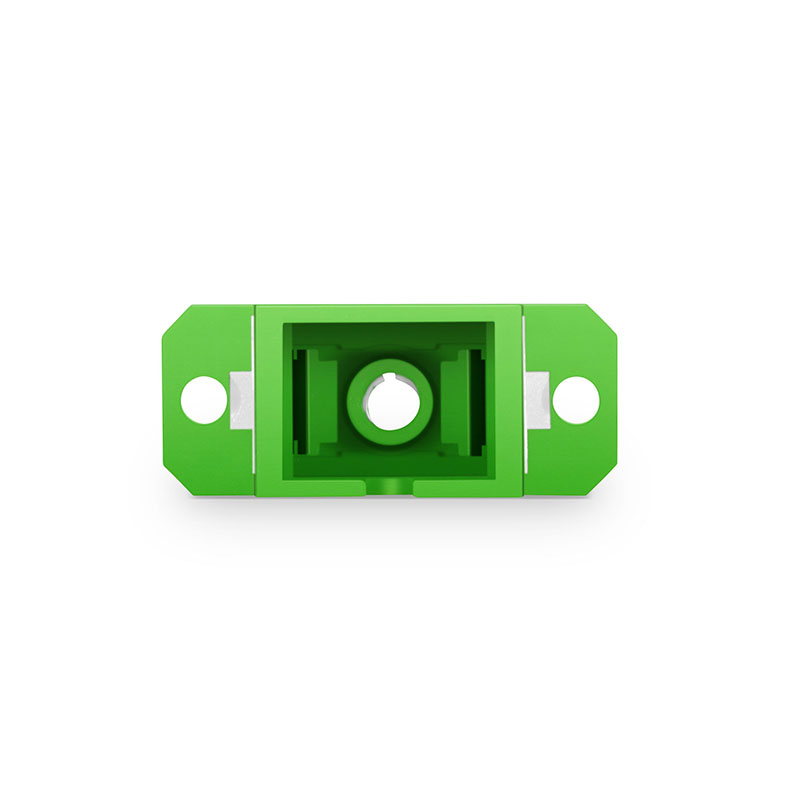

• Flange‑mount adapter for panel or ODF frames

• Precision ceramic zirconia sleeve alignment :contentReference[oaicite:5]{index=5}

Applications

• SC/FC patching in telecom backbones and ODFs

• LAN, WAN, and CATV installations

• FTTH access systems and fiber distribution cabinets

• Hybrid connector systems or equipment interface panel

application

•

  Data-processing-networks

•

  Local-area-networks

•

  Fiber-optic-communications
