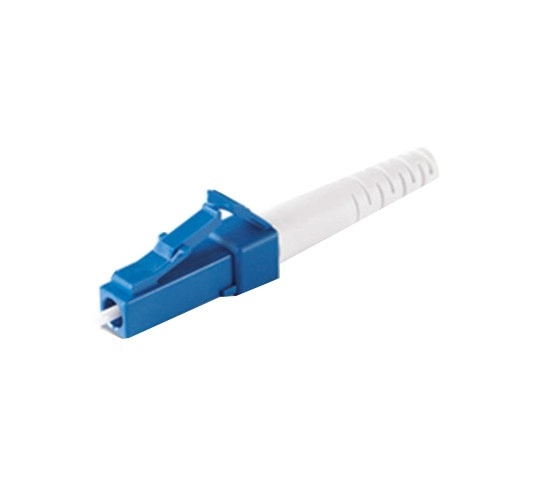

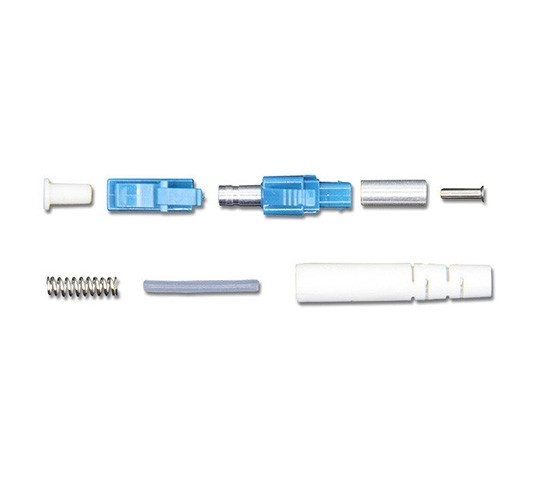

LC UPC & APC Single‑Mode Fiber Connectors for High‑Quality Optical Performance

High‑Performance LC Connectors for Precision Networks

These single‑mode LC connectors are available with either UPC or APC polished end faces, featuring low insertion loss (≤ 0.3 dB) and high return loss (≥ 50 dB for UPC, ≥ 55 dB for APC). Designed for reliable use in optical fiber communication systems, fiber access networks, CATV, data communication, and test equipment.

Wide Compatibility and Rugged Build

Compatible with 0.125 mm and 0.25 mm fiber diameters, these connectors support tight bend radii (7–25 mm for UPC and 5–12 mm for APC), allowing flexible installation in confined spaces.

Excellent Environmental Stability & Reusability

Rated for temperatures from −40 °C to +80 °C, featuring LDPE dust caps and a service life of over 1000 cycles. These connectors are built for long-term reliability and repeated mating cycles.

Versatile Application Scenarios

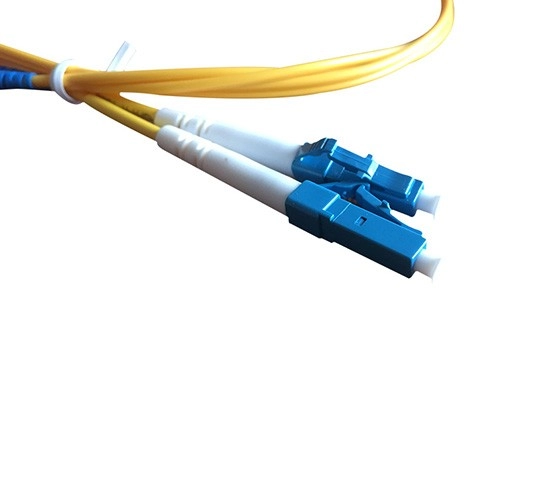

The LC UPC/APC connectors are suitable for LC-compatible patch cords, drop cables, and pigtails, offering both simplex and duplex formats. Their performance and flexibility make them ideal for modern fiber-optic system deployments.

YRT Fiber Service Commitment

All LC connectors are manufactured under stringent quality control and supported by YRT Fiber’s full-service offering: OEM/ODM customization, sample availability, 24‑hour inquiry response, production-to-delivery tracking, and dedicated after-sales support.

application

•

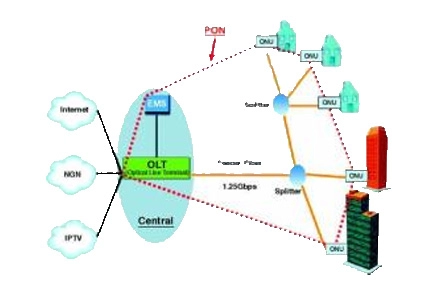

  Fiber-optic-access-networks

•

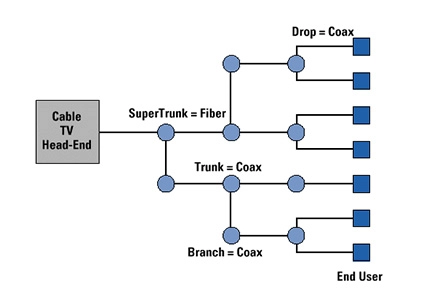

  CATV

•

  Fiber-optic-communications
