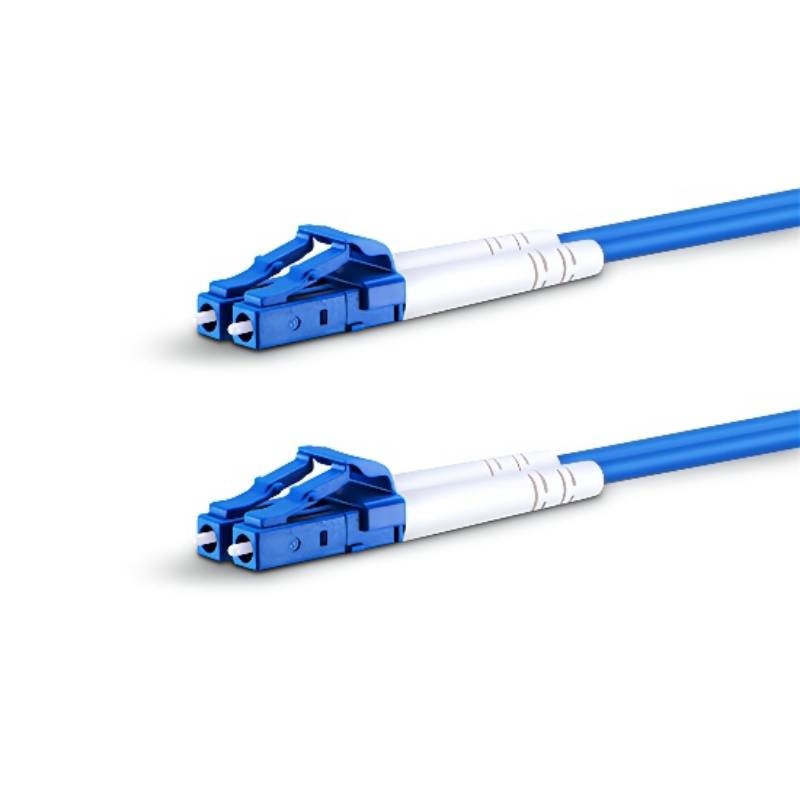

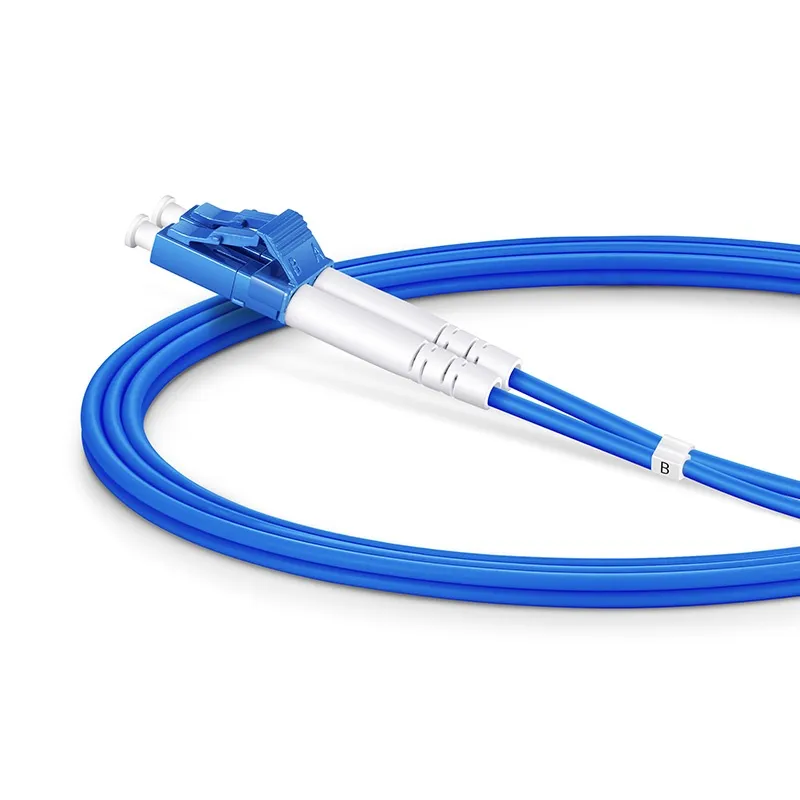

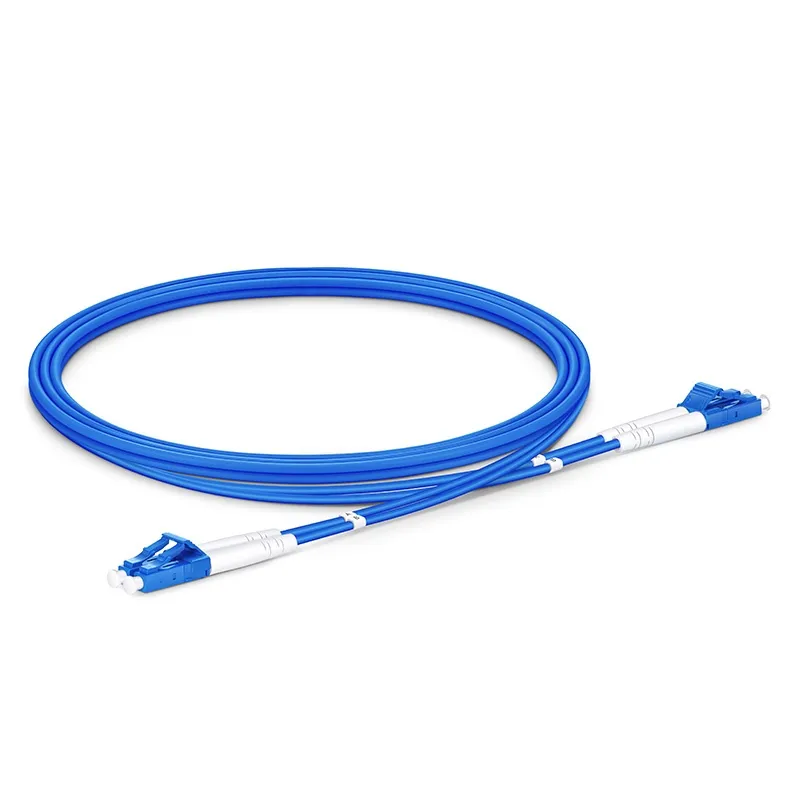

Armored Single-mode Fiber Jumper with LSZH Jacket – Single & Dual Core

Armored single-mode fiber jumpers with single or dual core. LSZH jacket, strong tensile strength, and protection against compression and rodent damage....
Inquiry
Product Attributes
  • Connector Type:LC/SC/ST/FC,APC/UPC
  • Port Type:Simplex,duplex
  • Outer Jacket:LSZH/PVC
  • Fiber Type:SM
  • Product Model:Singlemode Armored Patch Cords
Product Technical Parameters
Product Description

This armored single-mode fiber jumper is built for rugged indoor and outdoor use, offering excellent mechanical strength and environmental protection. Available in both single-core and dual-core options, it features a stainless-steel armored structure that resists crushing, tension, and rodent damage, while the LSZH jacket ensures low smoke and halogen-free performance.

Main Features

• Single-mode fiber (G652D or G657A) for stable long-distance transmission.

• Available in single-core and dual-core configurations.

• Stainless steel armored tube resists compression, tension, and rodent bites.

• LSZH outer sheath for flame retardancy and environmental safety.

• Compatible with SC, LC, FC, and ST connectors (UPC/APC finish).

Product Specifications

Fiber Type

• Single-mode G652D or G657A

Core Count

• Single-core or Dual-core

Armored Structure

• Flexible stainless-steel armor inside LSZH jacket

Connector Types

• LC, SC, FC, ST (UPC/APC available)

Applications

• Indoor and outdoor telecom and FTTH connections

• Environments exposed to mechanical stress or rodents

• ODFs, server rooms, and equipment patching

• Fire-sensitive or low-toxicity-required installations

Armored Single-mode Fiber Jumper with LSZH Jacket – Single & Dual Core第1张Armored Single-mode Fiber Jumper with LSZH Jacket – Single & Dual Core第2张Armored Single-mode Fiber Jumper with LSZH Jacket – Single & Dual Core第3张

    Armored Single-mode Fiber Jumper with LSZH Jacket – Single & Dual Core第4张
