1x8 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm SC/APC Singlemode Fiber

1x4 PLC Fiber Optic Splitter – ABS Splice/Pigtailed Module1x4 PLC Fiber Optic Splitter – ABS Splice/Pigtailed Module Product OverviewThe 1x4 PLC fiber splitter uses Planar Lightwave Circuit (PLC) tech to divide an optical input into four equal outputs. Housed in a durable ABS casing with SC/APC conn...

Inquiry

Product Attributes

ConnectorType:LC/SC/ST/FCAPC/UPC
PortType:Simplex,duplex
FiberCoreCount:2-288Cores
FiberType:SM
UpdateTime:2025-07-12

Product Technical Parameters

Product Description

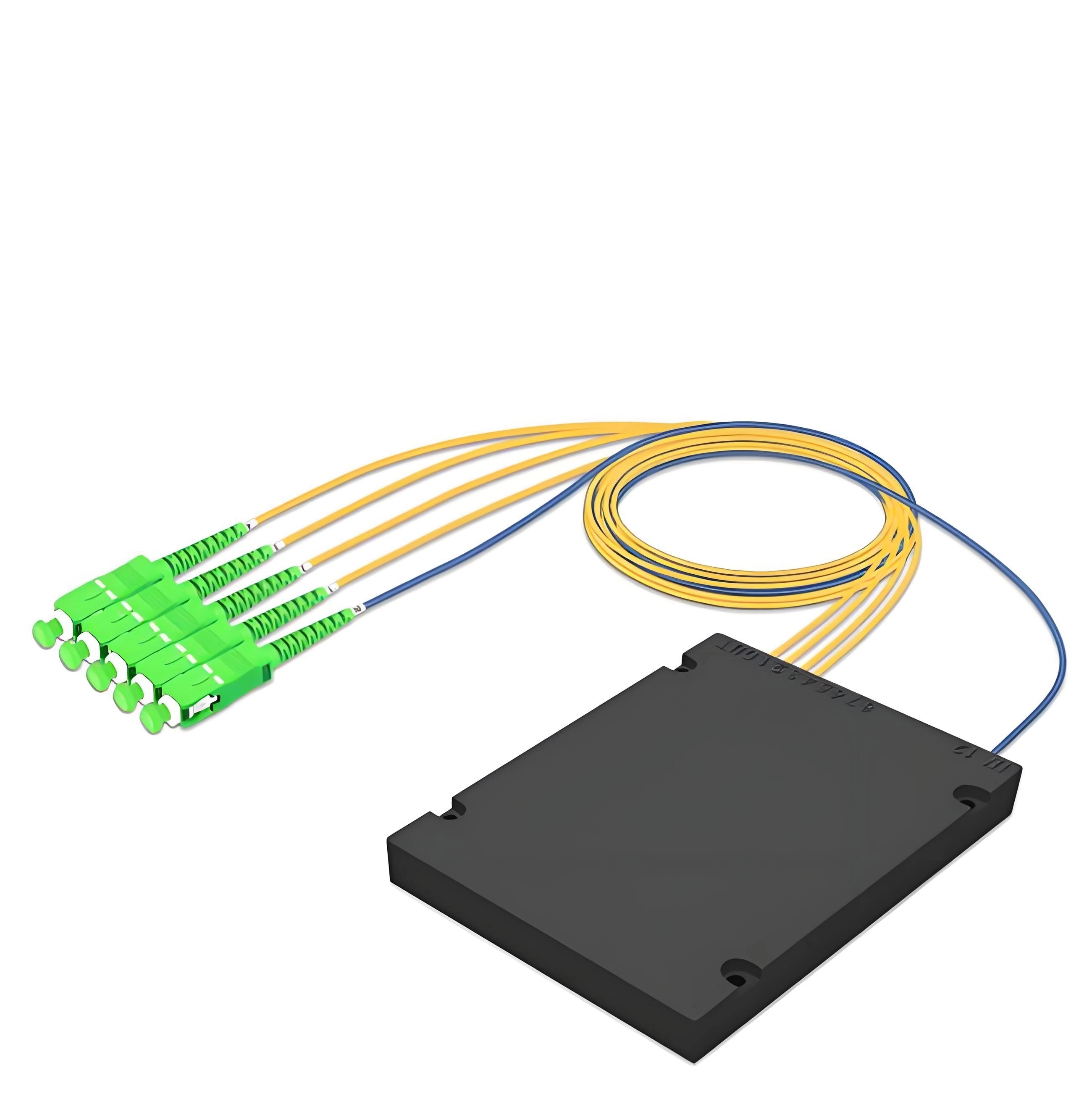

1x4 PLC Fiber Optic Splitter – ABS Splice/Pigtailed Module

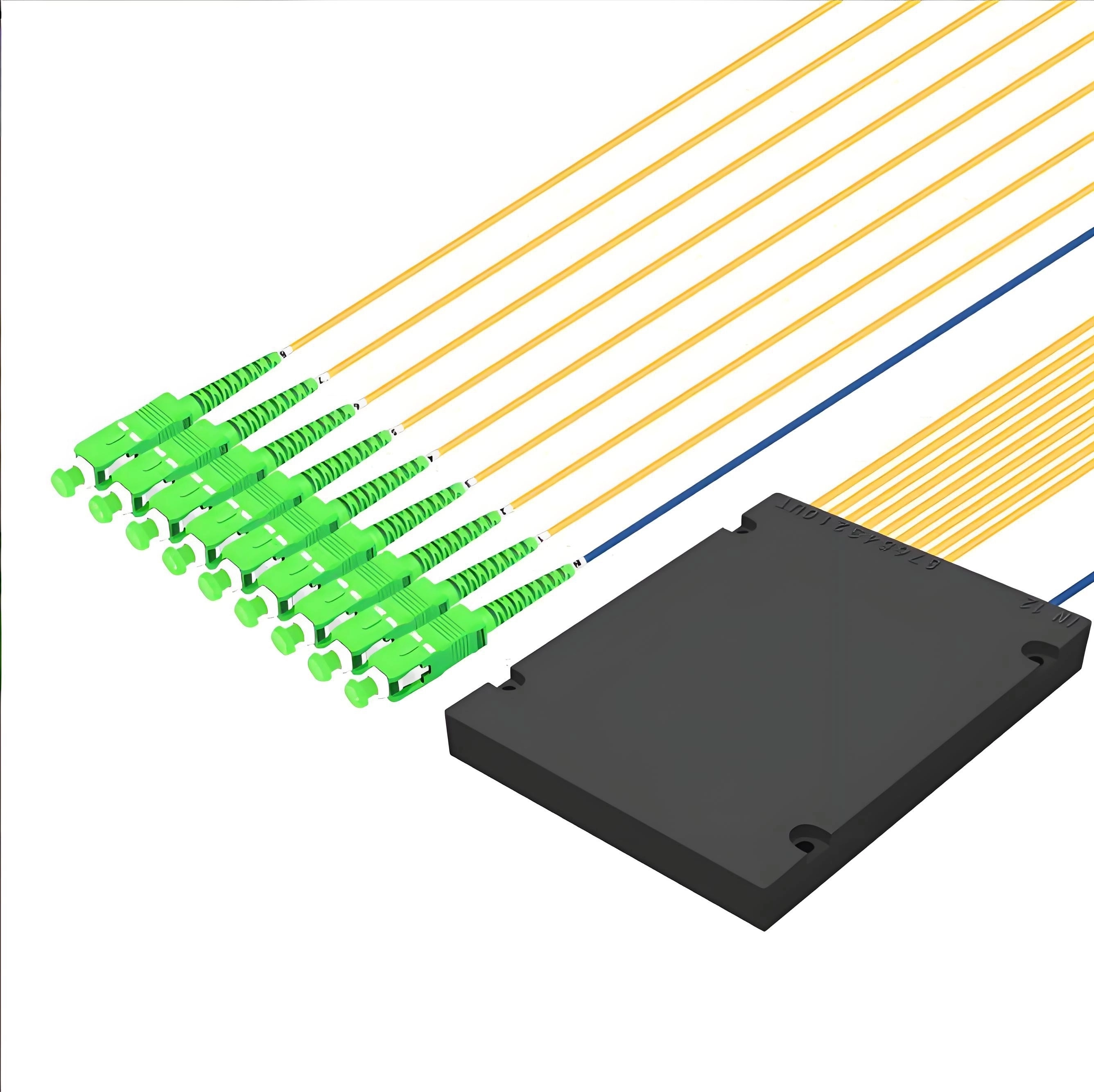

1x8 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm SC/APC Singlemode Fiber(pic1)

1x4 PLC Fiber Optic Splitter – ABS Splice/Pigtailed Module Product Overview

The 1x4 PLC fiber splitter uses Planar Lightwave Circuit (PLC) tech to divide an optical input into four equal outputs. Housed in a durable ABS casing with SC/APC connectors and 2.0mm fiber, it supports G.657A1 singlemode and fits FTTH, LAN, and backup networks.

1x4 PLC Fiber Optic Splitter – ABS Splice/Pigtailed Module Specifications

Package	ABS Module	Config	1x4
Fiber	G.657A1	Mode	Singlemode
Connectors	SC/APC	Ratio	1:4
Diameter	2.0mm	Length	1.5m
Loss	≤ 7.4dB	Return	≥ 55dB
Uniformity	≤ 0.6dB	Directivity	≥ 55dB
PDL	≤ 0.2dB	TDL	≤ 0.5dB
WDL	≤ 0.3dB	Wavelength	1260~1650nm
Size	10x100x80mm	Temp (Op & Stg)	-40 to 85°C

Key Features

Balanced PLC Output: 1:4 uniform split, ≤1.0dB loss typical
High Isolation: ≥60dB return loss (SC/APC)
Durable ABS Housing: Splice or pigtail ready, UV resistant
Compact Fiber: 2.0mm cable, bend-friendly
Long-Distance Ready: Up to 40km at 1310/1550nm

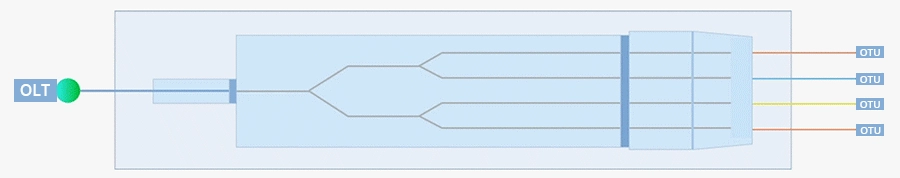

1x8 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm SC/APC Singlemode Fiber(pic2)

Applications

FTTH: One fiber feeds multiple homes
Redundant Networks: Backup paths for reliability
LAN: Shared link to 4 devices
Surveillance: Split feeds to multiple monitors

Advantages

Lower Costs: Minimal hardware & install effort
Scalable: Easy network expansion
Reliable: Stable signal across harsh conditions
