GYTS Stranded Loose Tube Armored Fiber Optic Cable / Armored Optical cable，G652D/G655

*The data is too long. View in landscape mode on mobile phoneoptical propertiesG.652G.65550 / 125μm62.5/125 μmAttenuation (+20℃)@850nm3.0 dB/km3.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="e58e88a5d4d6d5d58b88d4cbd5">[email protected]</a> dB/km1.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="62090f22535153520c0f524c5154">[email protected]</a> dB/km0.40 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="f89395b8c9cdcdc89695c8d6caca">[email protected]</a> dB/km0.23dB/kmBandwidth (Class A)@850nm500 MHz·km200 MHz·km@1300nm1000 MHz·km600 MHz...

Inquiry

Product Attributes

Fiber Type:G652D/G655
OuterJacket:PE
FiberCoreCount:2-288Cores
ProductModel:GYTS

Product Technical Parameters

Product Description

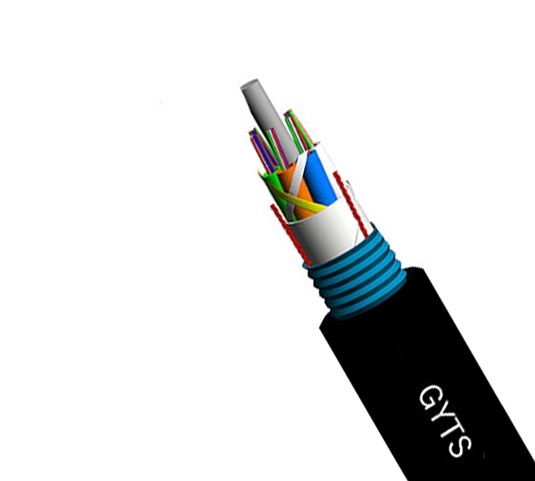

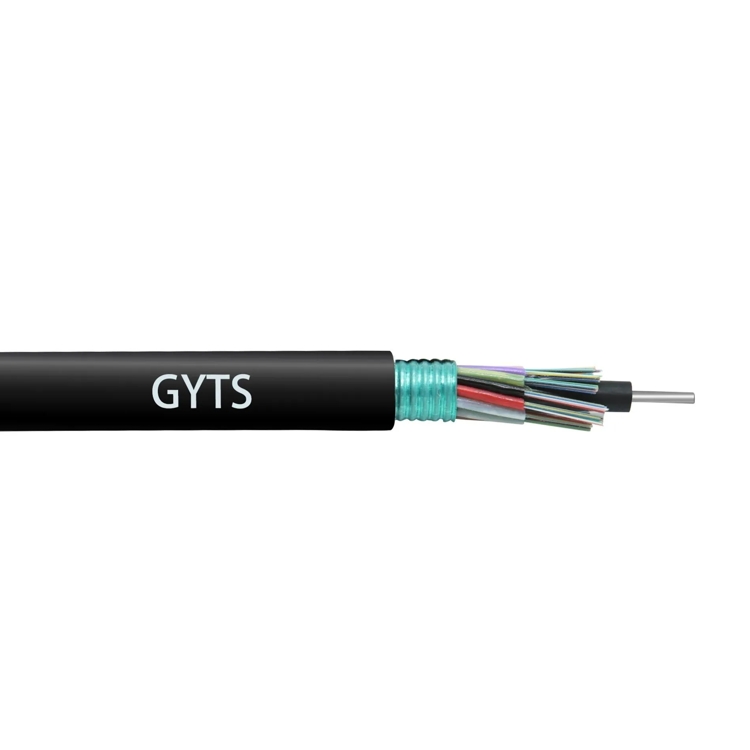

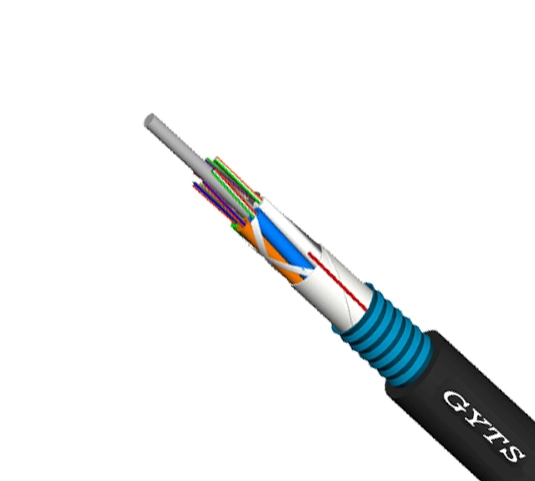

GYTS Stranded Loose Tube Armored Fiber Optic Cable / Armored Optical cable，G652D/G655(pic1)

*The data is too long. View in landscape mode on mobile phone

optical properties

		G.652	G.655	50 / 125μm	62.5/125 μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm
Storage/Operating temperature		-40℃ ~+70℃

Technical parameters

Model	Fiber cores	Tubes	Diameter (mm)	Weight (kgs/km)	Tensile (N)		Crush (N)		Bending radius
					Long term	Short term	Long term	Short term	Static/ Dynamic
GYTS-12~36F	12~36	2~6	9.5	100	1000	1500	300	1000	10D/20D
GYTS-38~72F	38~72	2~6	11	155	1500	3000	300	1000	10D/20D
GYTS-74~96F	74~96	7~8	13.6	192	1900	3000	300	1000	10D/20D
GYTS-98~120F	98~120	9~10	15	225	2200	3000	300	1000	10D/20D
GYTS-122~144F	122~144	11~12	16.9	277	2700	3000	300	1000	10D/20D

GYTS Stranded Loose Tube Armored fiber optic cable G652D Description

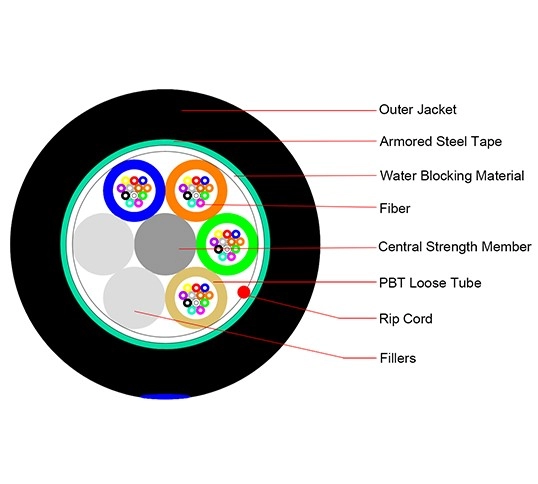

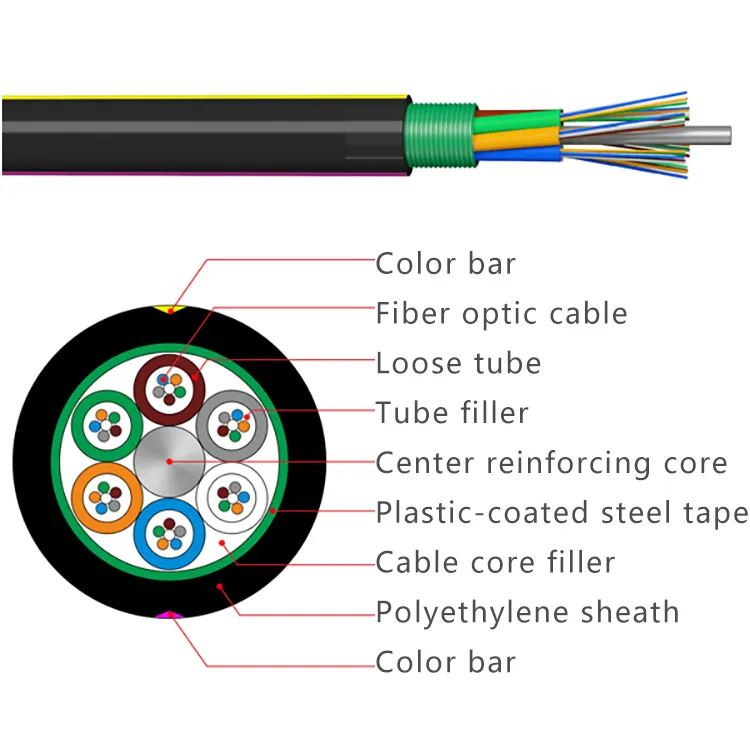

Regarding the GYTS model, the 250μm fiber is located in a loose tube made of high modulus plastic, filled with a waterproof filler compound inside the tube. A steel wire (sometimes used for PE sheathing for high core number fiber optic cables) is located in the center as a metal reinforcement member. The sleeve and filler are twisted around the reinforcement member to form a compact, round fiber optic cable core. The PSP is applied lengthwise to the fiber optic cable core, which is filled with a filler compound to prevent water intrusion. Finally, the fiber optic cable is completed with a PE sheathing.

Characteristics of GYTS Stranded Loose Tube armored fiber optic cable G652D

Good mechanical and temperature performance

High-strength loose casing, resistant to hydrolysis

Special casing packing compounds ensure critical protection of the fiber

The specially designed compact structure prevents loose casing shrinkage

Premium PE sheath protects optical cables from UV radiation

PSP enhanced moisture resistance

Application:

Pipes, overhead.
