GYXTY Center Loose Tube Unarmored Optical Cable , G652D/G655

*The data is too long. View in landscape mode on mobile phoneoptical propertiesG.652G.65550 / 125μm62.5/125 μmAttenuation (+20℃)@850nm3.0 dB/km3.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="610a0c21505251510f0c504f51">[email protected]</a> dB/km1.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="5d36301d6c6e6c6d33306d736e6b">[email protected]</a> dB/km0.40 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="7e15133e4f4b4b4e10134e504c4c">[email protected]</a> dB/km0.23dB/kmBandwidth (Class A)@850nm500 MHz·km200 MHz·km@1300nm1000 MHz·km600 MHz...

Inquiry

Product Attributes

Fiber Type:G652D/G655
OuterJacket:PE
FiberCoreCount:2-24Cores
ProductModel:GYXTY

Product Technical Parameters

Product Description

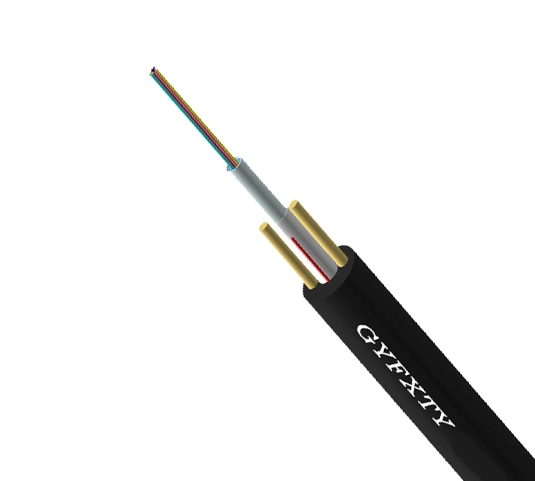

GYXTY Center Loose Tube Unarmored Optical Cable , G652D/G655(pic1)

*The data is too long. View in landscape mode on mobile phone

optical properties

		G.652	G.655	50 / 125μm	62.5/125 μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm
Storage/Operating temperature		-40℃ ~+70℃

Technical parameters

Model	Fiber Count	Outer Diameter (mm)	Weight (kg/km)	Tensile Strength Long /Short term N	Crush Resistance N/100mm	Bending Radius Static/ Dynamic mm
GYXTY-4	4	8.0	75	600/1500	1000/3000	10D/20D
GYXTY-6	6	8.0	85	600/1500	1000/3000	10D/20D
GYXTY-8	8	8.0	95	600/1500	1000/3000	10D/20D
GYXTY-12	12	8.0	105	600/1500	1000/3000	10D/20D

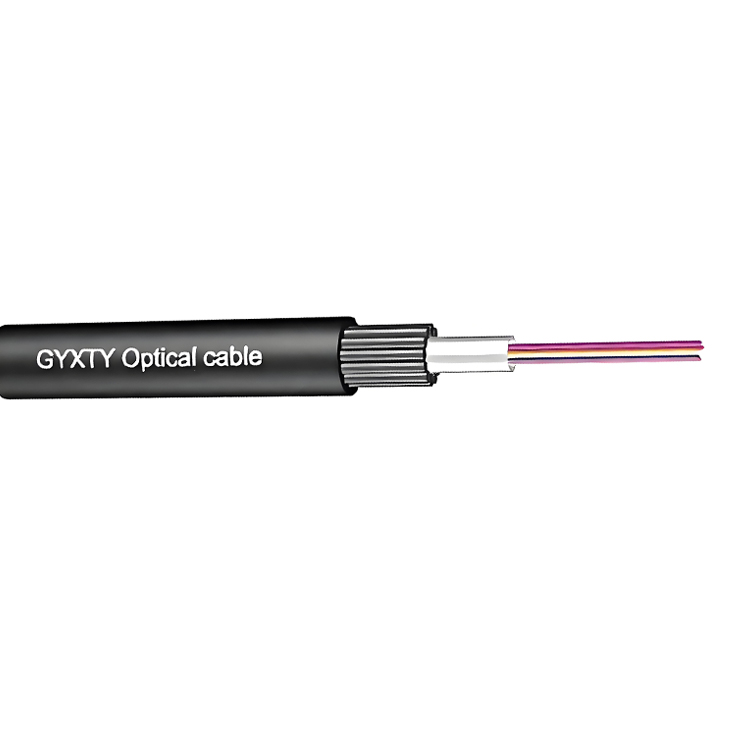

GYXTY Center Loose Tube Unarmored Optical Cable G652D Product Description

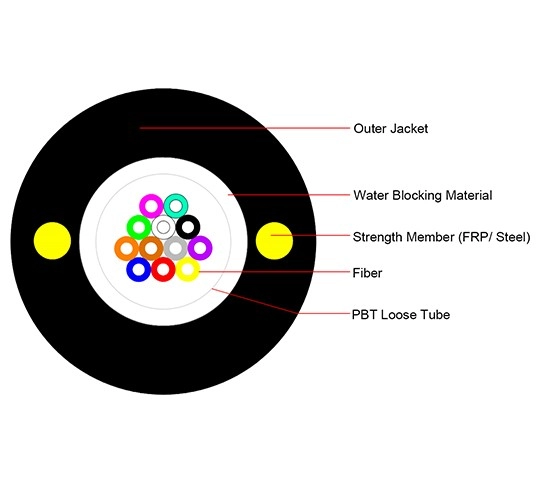

The GYXTY type optical cable places the 250um optical fiber in a loose sleeve made of high modulus plastic, fills the sleeve with waterproof filler, and adds a water-blocking material to the sleeve to make the optical cable watertight. Two parallel fiber-reinforced steel wires are placed at both ends, and the optical cable is covered with a PE sheath.

Product Features of GYXTY Center Loose Tube Unarmored Optical Cable G652D
