GJYXCH Self-supporting FTTH 1 core /2 core /4 core Fiber Drop Cable

GJYXCH Self-supporting FTTH Drop Fiber Cable description:1. The optical cable is composed of an optical communication unit, a reinforcing component, a self-supporting unit, and an outer jacket.2. The optical communication unit includes an optical fiber or a tightly buffered optical fiber.3. Reinforc...

Inquiry

Product Attributes

Fiber Model:single mode
Fiber type:G652D/G657A
OuterJacket:LSZH
FiberCoreCount:1~4Cores
ProductModel:GJYXCH

Product Technical Parameters

Product Description

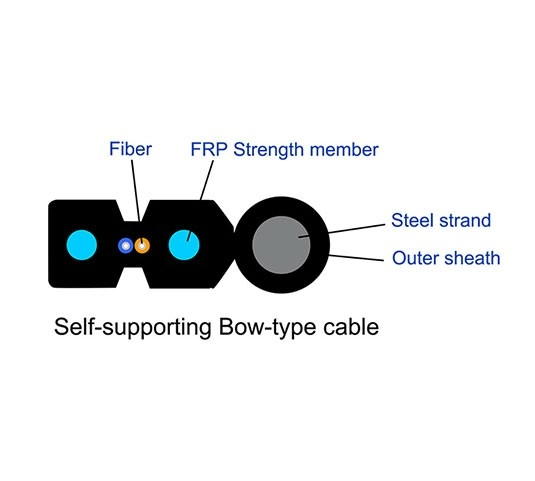

GJYXCH Self-supporting FTTH 1 core /2 core /4 core Fiber Drop Cable(pic1)

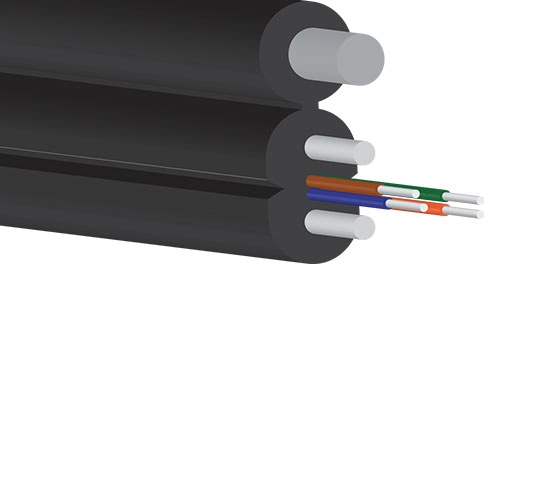

GJYXCH Self-supporting FTTH 1 core /2 core /4 core Fiber Drop Cable(pic2)

GJYXCH Self-supporting FTTH Drop Fiber Cable description:

1. The optical cable is composed of an optical communication unit, a reinforcing component, a self-supporting unit, and an outer jacket.

2. The optical communication unit includes an optical fiber or a tightly buffered optical fiber.

3. Reinforcement components can be made of metal or non-metal according to customer requirements.

GJYXCH Self-supporting FTTH Drop Fiber Cable accepts OEM orders:

Fiber type: G652, G655, or G657 single-mode fiber, A1a or A1b multimode cable, or other types of fiber.

2. Sheath material: flame retardant polyvinyl chloride (PVC), low smoke halogen-free flame retardant polyolefin (LSZH), environmentally friendly halogen flame retardant polyolefin (ZRPO), environmentally friendly thermoplastic polyurethane (TPU) or other materials;

3. Delivery length: 1km or 2km, or as required.

Specifications

Parameters	Specifications
Fiber Core	1	2	4
Cable Dimension (mm)	(2.0±0.1) × (5.2±0.1)	(2.0±0.1) × (5.2±0.1)	(2.0±0.1) × (5.2±0.1)
Cable Weight (kg/km)	20	20.5	22
Tensile Strength (N) Long term	300
Tensile Strength (N) Short term	600
Crush(N/100mm) Long term	2200
Crush(N/100mm) Short term	1000
Bend Radius (mm) Static	15
Bend Radius (mm) Dynamic	30
Cable cut-off length	≤1260nm
Attenuation(+20℃)@1310nm	≤0.45 dB/km
Attenuation(+20℃)@1550nm	≤0.30 dB/km
Trans/Storage/Operating Temperature	-20℃~+60℃
Installation Temperature	-5℃~+50℃
Out sheath/Jacket	LSZH or PVC
Note: 1. The cable dimension and weight are in accordance with tight-buffered fiber with 0.9mm outer diameter; 2. Cable size is outer diameter of the round cable; 3. The minimum bend radius (static) is 5H when G657 fiber is used.
