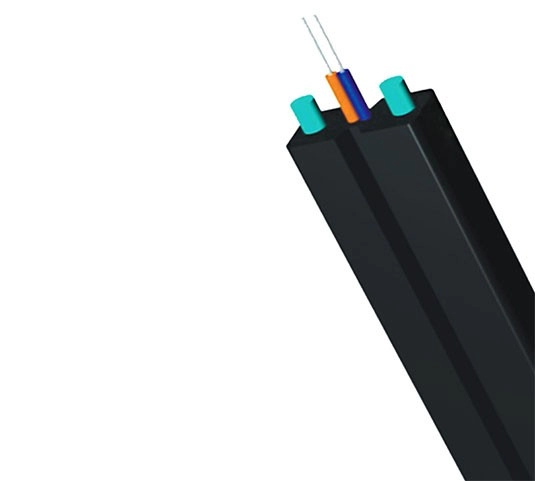

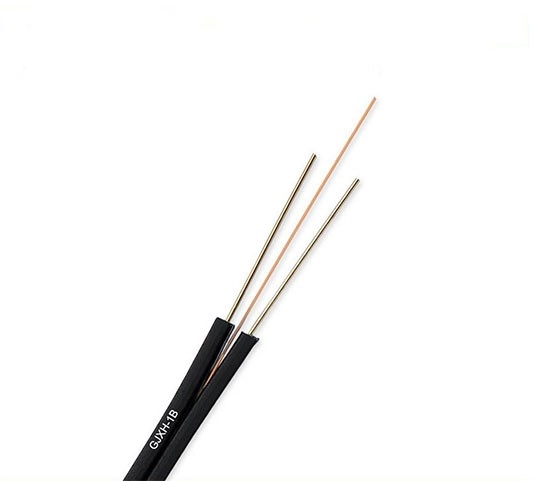

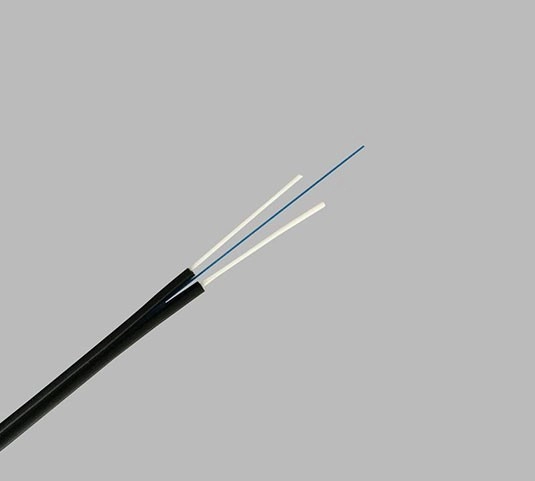

GJXH Bow-type FTTH 1 core /2 core Fiber Drop Cable

GJXH Bow-type FTTH Drop Fiber Cable features:1. Good mechanical and environmental characteristics;2. Flame retardant characteristics meet the requirements of relevant standards.3. The sheath's mechanical characteristics comply with relevant standards.4. Soft, flexible, easy to install and connec...

Inquiry

Product Attributes

Fiber Model:SM
Fiber Type:G652D/G657A
OuterJacket:LSZH/PVC/Flame-retardantPVC/TPU
FiberCoreCount:1-2Cores
ProductModel:GJXH

Product Technical Parameters

Product Description

GJXH Bow-type FTTH Drop Fiber Cable features:

1. Good mechanical and environmental characteristics;

2. Flame retardant characteristics meet the requirements of relevant standards.

3. The sheath's mechanical characteristics comply with relevant standards.

4. Soft, flexible, easy to install and connect, with large-capacity data transmission.

GJXH Bow-type FTTH Drop Fiber Cable application

1. Access network

2. Indoor wiring (FTTH)

Specifications

Parameters	Specifications
Fiber Core	1	2
Cable Dimension (mm)	(2.0±0.1) × (3.0±0.1)	(2.0±0.1) × (3.0±0.1)
Cable Weight (kg/km)	8	8.5
Tensile Strength (N) Long term	30 (FRP), 40 (KFRP), 100 (Steel Wire)
Tensile Strength (N) Short term	60 (FRP), 80 (KFRP), 200 (Steel Wire)
Crush(N/100mm) Long term	300
Crush(N/100mm) Short term	1000
Bend Radius (mm) Static	15
Bend Radius (mm) Dynamic	30
Cable cut-off length	≤1260nm
Attenuation(+20℃)@1310nm	≤0.45 dB/km
Attenuation(+20℃)@1550nm	≤0.30 dB/km
Trans/Storage/Operating Temperature	-20℃~+60℃
Installation Temperature	-5℃~+50℃
Out sheath/Jacket Material	LSZH / PVC / Flame-retardant PVC / TPU
Color	Black, White, Yellow, Red, Blue etc.

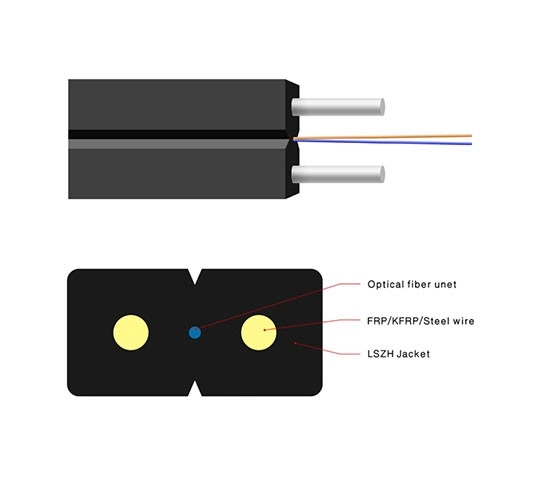

Remark	1. The cable core use the colored coating fiber of 250μm; 2. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used; 3. The minimum bend radius (static) is 15mm when G657 fiber is used.
