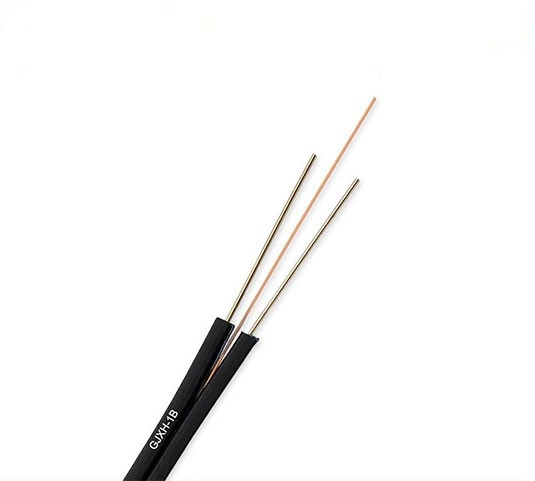

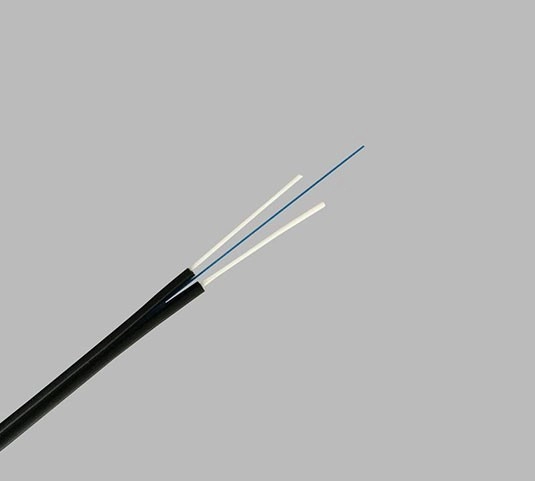

GJXH Bow-Type FTTH Drop Cable with 1 or 2 Core G652D/G657A single mode Fiber

Flexible bow-type FTTH drop cable with 1 or 2 cores, G652D/G657A fiber, compact structure, flame-retardant jacket, ideal for indoor FTTH wiring and wall routing....

Inquiry

Product Attributes

Fiber Model:SM
Fiber Type:G652D/G657A
Outer Jacket:LSZH/PVC/Flame-retardantPVC/TPU
Fiber Core Count:1-2Cores
Product Model:GJXH

Product Technical Parameters

Specifications

Parameters	Specifications
Fiber Core	1	2
Cable Dimension (mm)	(2.0±0.1) × (3.0±0.1)	(2.0±0.1) × (3.0±0.1)
Cable Weight (kg/km)	8	8.5
Tensile Strength (N) Long term	30 (FRP), 40 (KFRP), 100 (Steel Wire)
Tensile Strength (N) Short term	60 (FRP), 80 (KFRP), 200 (Steel Wire)
Crush(N/100mm) Long term	300
Crush(N/100mm) Short term	1000
Bend Radius (mm) Static	15
Bend Radius (mm) Dynamic	30
Cable cut-off length	≤1260nm
Attenuation(+20℃)@1310nm	≤0.45 dB/km
Attenuation(+20℃)@1550nm	≤0.30 dB/km
Trans/Storage/Operating Temperature	-20℃~+60℃
Installation Temperature	-5℃~+50℃
Out sheath/Jacket Material	LSZH / PVC / Flame-retardant PVC / TPU
Color	Black, White, Yellow, Red, Blue etc.
Remark	1. The cable core use the colored coating fiber of 250μm; 2. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used; 3. The minimum bend radius (static) is 15mm when G657 fiber is used.

Product Description

The GJXH bow-type FTTH drop cable is designed for indoor fiber-to-the-home installations. Its flat bow-type shape enables easy routing along walls, ceilings, or conduits. It adopts G652D or G657A single-mode fibers and offers excellent flexibility, bend resistance, and flame-retardant properties.

Main Features

• Bow-type flat structure for quick indoor routing and termination.

• Available in 1-core and 2-core versions.

• Uses G652D or G657A fibers for stable, high-bandwidth transmission.

• LSZH or PVC jacket is flame-retardant and environment-friendly.

• Compact, lightweight, and easy to install in tight indoor spaces.

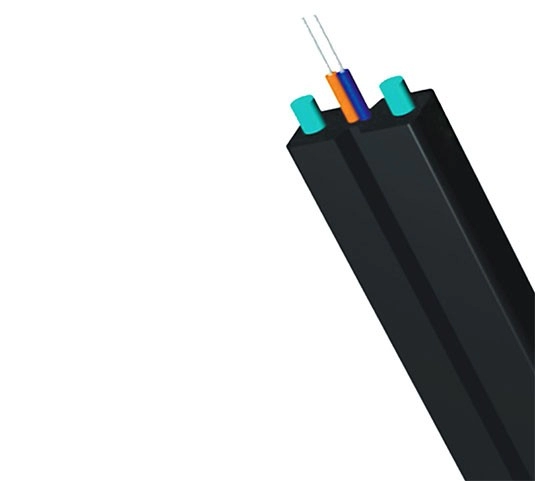

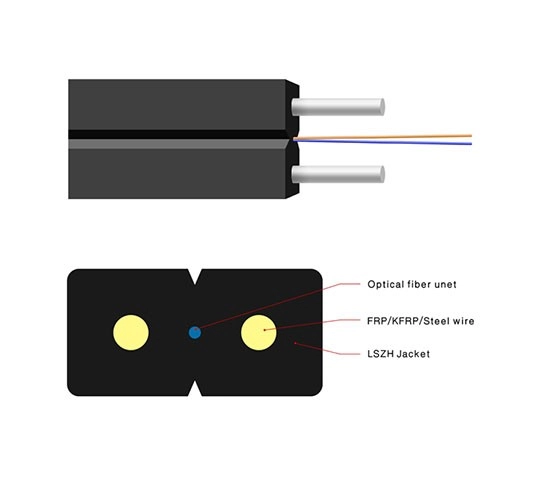

Structure Details

Fiber Types

• G652D or G657A single-mode optical fiber

Strength Members

• Two parallel steel or FRP rods for added durability

Jacket Material

• Flame-retardant LSZH or PVC outer jacket

Applications

• Indoor FTTH (Fiber to the Home) cabling

• Wall-mounted, conduit, or ceiling installation

• Used for drop cabling between terminal boxes and ONU equipment

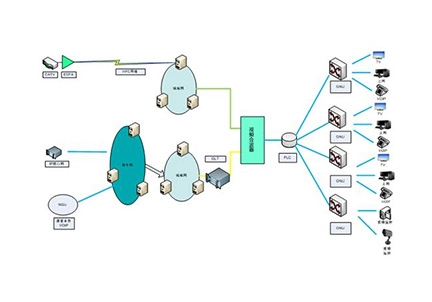

application

indoor cabling(FTTH)
access-network
