GJYXCH Self-Supporting FTTH Drop Cable with 1/2/4 Core G652D/G657A Fiber

urable self-supporting FTTH drop cable with 1/2/4 cores, G652D/G657A fibers, steel strength member, flame-retardant jacket, ideal for outdoor aerial FTTH wiring....

Inquiry

Product Attributes

Fiber Model:single mode
Fiber type:G652D/G657A
Outer Jacket:LSZH/PVC
Fiber Core Count:1~4Cores
Product Model:GJYXCH

Product Technical Parameters

Product Description

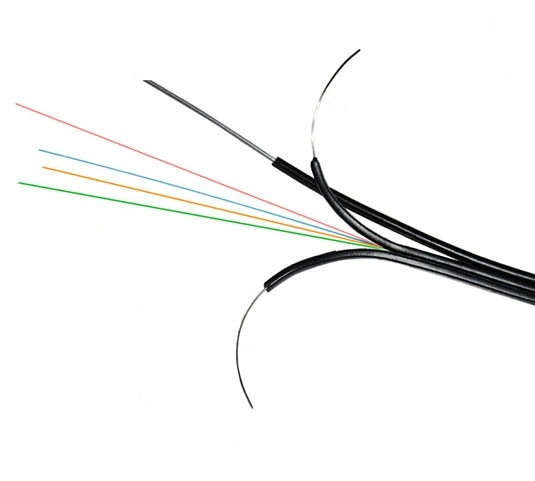

The GJYXCH self-supporting FTTH drop cable is specially designed for aerial fiber-to-the-home deployments. It features a steel wire strength member for excellent tensile performance and uses G652D or G657A single-mode fibers for stable high-speed transmission.

Main Features

• Self-supporting structure with steel wire enhances aerial suspension strength.

• Available in 1-core, 2-core, and 4-core configurations.

• G652D and G657A fibers support long-distance and tight bending applications.

• Flame-retardant, UV-resistant, and waterproof outer jacket for outdoor environments.

• Lightweight, compact, and easy to install or pull through conduits.

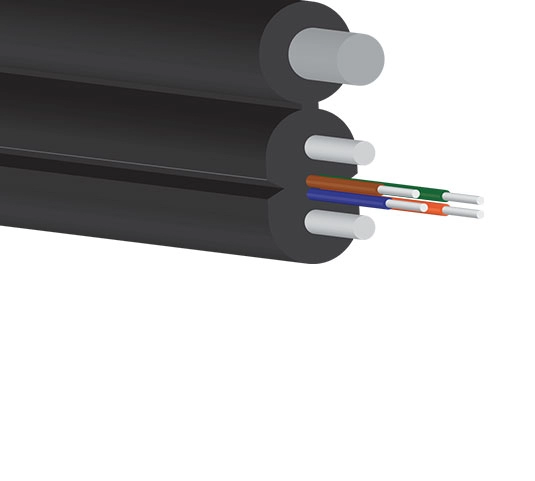

Structure Details

Fiber Types

• G652D and G657A single-mode

Strength Member

• Galvanized steel wire or FRP (optional)

Jacket Material

• LSZH, PE, or PVC available as needed

Applications

• Ideal for FTTH aerial access networks

• Used in drop cable networks for residential buildings

• Suitable for self-supporting span installations in rural and urban projects

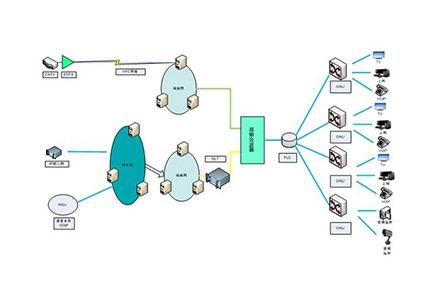

Application

access-network
indoor cabling(FTTH)

GJYXCH Self-Supporting FTTH Drop Cable with 1/2/4 Core G652D/G657A Fiber第3张

Case

Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support

Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey

Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia

Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber

OVERVIEW Download

Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop

首4.jpg 首5.jpg 首3.jpg 首2.jpg 首1.jpg

Keywords: GJYXCH, FTTH Drop Cable, Self-Supporting, 1/2/4 Core, G652D, G657A

GJXH Bow-Type FTTH Drop Cable with 1 or 2 Core G652D/G657A s

Pre-Connected FTTH Drop Cable with G652D/G655/G657A Fibers

Parameters	Specifications
Fiber Core	1	2	4
Cable Dimension (mm)	(2.0±0.1) × (5.2±0.1)	(2.0±0.1) × (5.2±0.1)	(2.0±0.1) × (5.2±0.1)
Cable Weight (kg/km)	20	20.5	22
Tensile Strength (N) Long term	300
Tensile Strength (N) Short term	600
Crush(N/100mm) Long term	2200
Crush(N/100mm) Short term	1000
Bend Radius (mm) Static	15
Bend Radius (mm) Dynamic	30
Cable cut-off length	≤1260nm
Attenuation(+20℃)@1310nm	≤0.45 dB/km
Attenuation(+20℃)@1550nm	≤0.30 dB/km
Trans/Storage/Operating Temperature	-20℃~+60℃
Installation Temperature	-5℃~+50℃
Out sheath/Jacket	LSZH or PVC
Note: 1. The cable dimension and weight are in accordance with tight-buffered fiber with 0.9mm outer diameter; 2. Cable size is outer diameter of the round cable; 3. The minimum bend radius (static) is 5H when G657 fiber is used.

Quantity (KM)	Estimated Delivery Time
1–300	Approx. 15 days
≥300	Delivery time to be negotiated
